Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Warranty: | 1 Year |
|---|---|---|---|
| Mounting Speed: | 250000 CPH | No. Of Heads: | 68 PCS |
| High Light: | 68 Feeders SMT Pick Place Machine,SMT Pick Place Machine 68 Heads,Strip Lights SMT chip Mounting Machine |
||

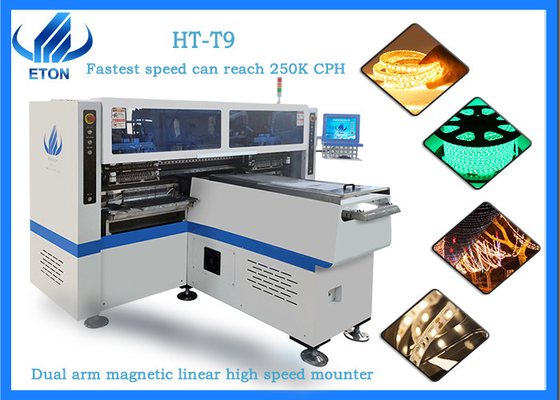

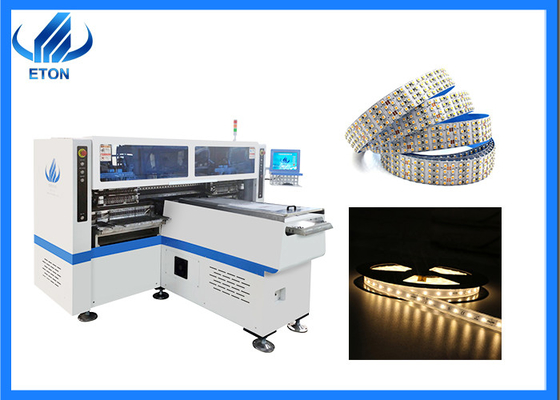

SMT mounter for LED lights strip
Product description
T9 is the professional high speed placement machine, apply to 5M/10M/25M/50M/100M/200M any length roll to roll Led strip light
Adopts ETON's exclusive patented technology group picking and group mounting realize and guarantee ultra-high-speed placement
Ultra-high-speed placement capability, the ultimate cost-effective, 68 placement heads, the optimal capacity is 250,000CPH
Achieve accurate independent corners and placement by the unique leak detection and separate feeding function.
Parameter
| No. of Camera |
5 PCS ( Digital camera) Vision alignment, MARK correction |
| Repeat Mounting Precision | ±0.02mm (Repeat precision) |
| Mounting Height | ≦5mm |
| Mounting Speed | 200000~250000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space | 0.5mm |
| No. of Feeders Station | 68 PCS |
| No. of head | 68 PCS |
| Power | 380AC 50 HZ |
| Power Consumption | 6kw |
| Operating Environment | 23℃±3℃ |
| Conveyor Transmission | Max Length :1200 mm |
| Transmission Speed | >500 mm/sec |
| Transmission Direction | Single(left→ right or right→ left) |
| Transmission Mode | Online drive |
| Positioning way | Optical |
| Air Supply | 0.4-0.6mpa (4-6kgf/cm2)150N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor+ servo motor |
| Feeding way | Electric feeder with double motor |
Packing and Delivery:
All machines are packed with vacuum and wooden packing like the one in the pictures.
Shipping: --- We ship to world wide from china mainland using air mail by EMS, UPS, DHL or
TNT or as your request for parts. --- Sea shipping for machine.
Step 1:Film packaging: Prevent the machine from dust ,water
Step 2:Vacuum packing:Duplicate protection from oxidation
Step 3:Wooden box packing:Effectively prevent from hit crash and shaking
Maintenance period 1 year
●One year warranty, during warranty, any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
●Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
●Visit clients regularly. We attend the different exhibitions in different cities. every year, at the same time, we will visit local
clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
●We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
●We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service
timely with our engineers.
●According to your, needs, dedicated senior engineer will come to your factory for free install and training you how to
operate the machine.
