| Name: | Pick And Place Machine | Warranty: | 1 Year |
|---|---|---|---|
| Mounting Speed: | 150000-180000CPH | Mounting Heads: | 34 PCS |
| High Light: | 34 Nozzles pick and place machine,LED panel pick place machine,tube lights smt pick place machine |
||

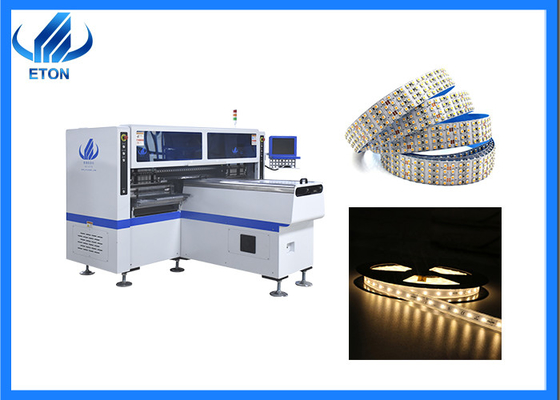

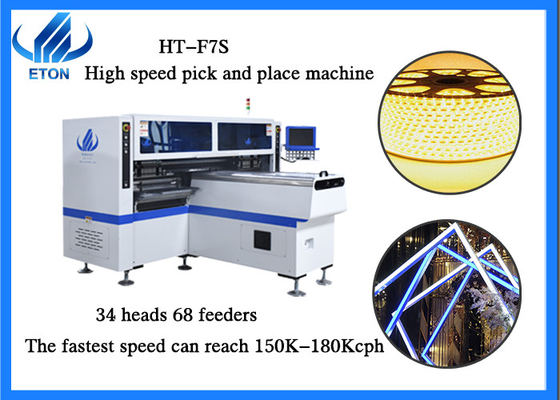

SMT pick and place machine with LED panel
Product description
Applicable to 0.6m, 0.9m, 1.2m hard light board, 0.5m, 1m soft light strip
Using ETON R&D adjustable placement head, mounting head and feeder spacing can be flexible adjusted
Ultra-high-speed placement capability, the ultimate cost-effective with 68 placement heads, the optimal capacity is 170,000CPH
Wide applicability and flexibility, can produce 4 different materials at the same time without affecting high productivity.
Calibration automatically, high precision, avaliable for mounting RGB
Intelligent flight recognition function,no pause to detect the presence or absence of components and the adsorption state, to prevent placement errors.
Parameter
| No. of Camera |
5 sets ( Digital camera) Vision alignment, MARK correction |
| Repeat Mounting Precision | ±0.02mm(Repeat precision) |
| Mounting Height | ≦5mm |
| Mounting Speed | 150000~180000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space | 0.5mm |
| Power | 380AC 50 HZ |
| Power Consumption | 6kw |
| Operating Environment | 23℃±3℃ |
| Conveyor Transmission | Max Length :1200 mm |
| Transmission Speed | >500mm/sec |
| Transmission Direction | Single(left→ right or right→ left) |
| Transmission Mode | Online drive |
| Positioning way | Optical |
| Air supply | 0.4-0.6mpa (4-6kgf/cm²) 150N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor+ Servo motor |
| No. of Feeders Station | 68 PCS |
| No. of head | 34 PCS |
| Feeding way | Electric feeder with double motor |
Exhibition:
Our company participates in exhibitions at home and abroad every year (except during the epidemic period), such as:
l Overseas: India Delhi Exhibition, India Mumbai Exhibition, Pakistan Exhibition, Egypt Exhibition, Tunisia Exhibition, Thailand Exhibition, etc.;
l Domestic: Guangzhou Guangya Exhibition; Shanghai Munich Exhibition; Chongqing LED Light Exhibition, etc.
Reflow soldering process for mounting PCB:
Reflow soldering is a surface mount plate, and its process is relatively complex. It can be divided into two types: single side mount and double side mount.
A. Single side mounting: pre apply solder paste → patch (divided into manual mounting and machine automatic mounting) → reflow soldering → inspection and electrical test.
B.Double sided mounting: pre apply solder paste on side a → patch (divided into manual mounting and machine automatic mounting) → reflow soldering → pre apply solder paste on side B → patch (divided into manual mounting and machine automatic mounting) → reflow soldering → inspection and electrical test.
