Product Details:
Payment & Shipping Terms:
|
| High Light: | LED strip SMT chip mounting machine,MARK correction SMT chip mounting machine,Vision alignment LED Mounting Machine |
||
|---|---|---|---|

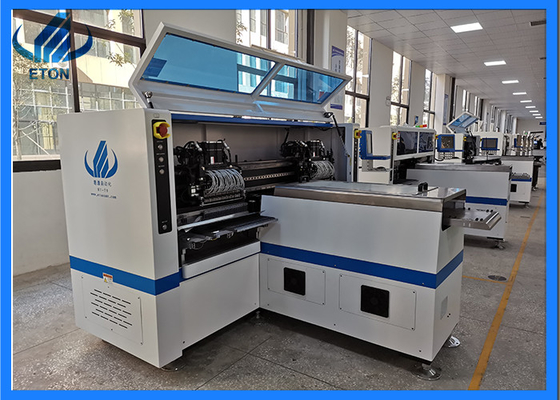

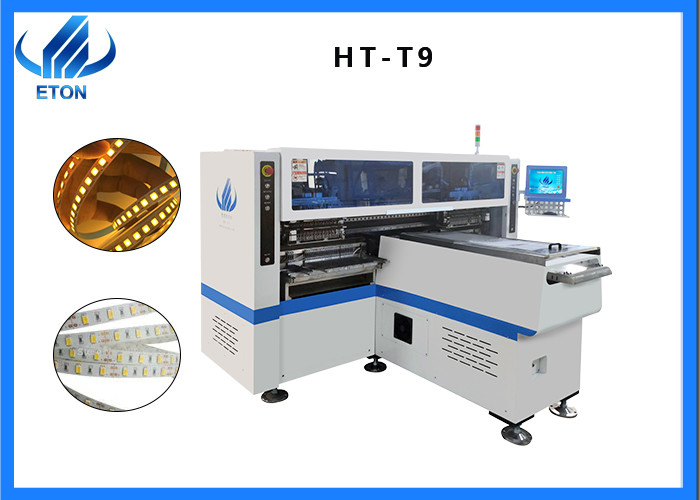

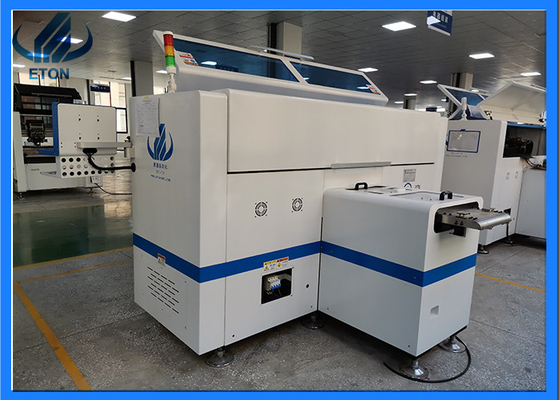

Roll TO Roll strip chip mounting machine
Parameter
|
No. of Camera
|
5 PCS ( Digital camera) |
| Vision alignment, MARK correction | |
| Repeat mounting Precision | ±0.02mm (Repeat precision) |
| Mounting Height | ≦5mm |
| Mounting Speed | 200000~250000CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space | 0.5mm |
| No. of Feeders Station | 68 PCS |
| No. of head | 68 PCS |
| Power | 380AC 50 HZ |
| Power Consumption | 6kw |
| Operating Environment | 23℃±3℃ |
| Conveyor transmission | Max Length :1000 mm |
| Transmission speed | >500mm/sec |
| Transmission Direction | Single(left→ right or right→ left) |
| Transmission Mode | Online drive |
| Positioning Way | Optical |
| Gas consumption | 0.4-0.6mpa (4-6kgf/cm2)150N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor+ servo motor |
Machine features
Dual arm magnetic linear high speed mounter for flexible strip(no wire ), producing 4 types materials at the same time capacity reach 250000CPH.
Producing with 4 types materials at the same time with high capacity, available for 5m,50m or any length of flexible strip and roll to roll.
We have many big clients in India, Turkey and many countries.
In India: SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, CENTURY LED, AUTOPAL, SKYQUAD, NTL, KONARK, CEPL, FLARE, SLS are one of our large customers.
In Turkey: ACK, KENDAL, KING LED are one of our large customers.
In Vietnam: RangDong, TAMKIM are one of our large customers.
In Egypt: UNISTAR is one of our large customers.
In Tunis: SKY INDUSTRIES, FAWANIS are one of our large customers
EXHIBITION
We go to many kinds of exhibition every year, including home and aboard. Such as Guangzhou Guangya exhibition, Shanghai Munich exhibition, India exhibition, Thailand exhibition, Turkey exhibition, Mumbai exhibition, Delhi exhibition, Pakistan exhibition, Egypt exhibition and so on.
FAQ
Q:Does your machines have quality certificates?
A:We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as”Well-know brand” and many technology patents, and have rich experience(more than 11 years) in LED light production line program.
Q:How many products can your machine make per day?
A:The capacity of our machine is according to the real products, and the number of components on your PCB board that is important factor to figure out the actual speed of our machine with your products.
Q;Can you accept CIFas the quoted price?
A:We only accept EXW as the quoted pricefor it is convenient and lower cost for both sides.
Q:Can I go and see if you have sold the equipment to India?
A:Yes, we have sold our machine in India, but for the fact we can’t decide it for my customer, but I will try to contact my customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.
