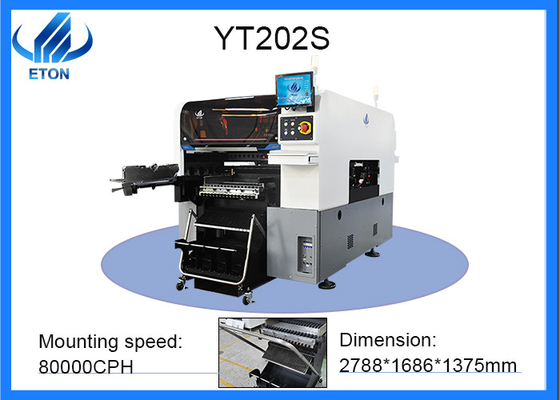

Automatic SMT Chip Mounter 80000CPH For LED Light Mounting

Automatic SMT Chip Mounter 80000CPH For LED Light Mounting
Automatic SMT Chip Mounter 80000CPH For LED Light Mounting Automatic SMT Chip Mounter 80000CPH For LED Light Mounting

Large Image :  Automatic SMT Chip Mounter 80000CPH For LED Light Mounting

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC,SIRA,CE
Model Number: YT202s
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: WE USE VACUUM WOODEN BOC PACKAGE
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 50PCS/Month
Detailed Product Description
Model: YT202s Warranty: 1 Year,12 Months
Applicable Components: SOP Name: SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter,smt Nozzle
Application: SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine Condition: New,100% Original,Brand-new
Product Name: Place Machine\ LED Mounter\LED Assembly Machine,Automatic SMT Mounting Shooter,SMT Shooter Machine Weight: 1700KG
Mounting Speed: 80000 CPH Type: Automatic
Usage: Circuit Board Assembly,SMT Mounting Machine,SMD,LED Dimension: 2788*1686*1375mm
High Light:

LED Light Automatic SMT Chip Mounter

,

380VAC SMT chip mounter

,

SMT Mounter Machine 80000CPH

SMT chip mounter in led light for led light mounting



Main parameter

Showroom Location:Turkey, India

Video outgoing-inspection:Provided

Machinery Test Report:Provided

Warranty of core components:1 Year

Core Components:R&D by Eton

Place of Origin:Guangdong, China

Brand Name:ETON

Model Number:YT202S

Warranty:1 Year, 1 year

Place of origin:China

Dimension:2788*1686*1375mm

Total weight:1700kg

Power:380AC 50HZ

Power consumption:6KW

Mounting speed:80000CPH

Mounting height:<=20mm

Visual camera:4sets of imported camera

After Warranty Service:Video technical support, Online support

Local Service Location:Turkey, India

After-sales Service Provided:Video technical support, Online support

Automatic SMT Chip Mounter 80000CPH For LED Light Mounting 0

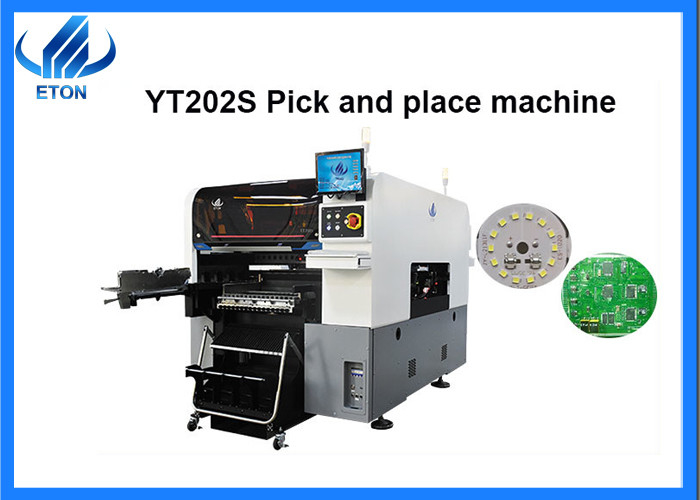

Introduction of YT202s

1.The theoretical speed of yt202s is 80000 CPH, which is a medium speed, multi-functional sorter.The biggest difference compared with other machines is,yt202s use the docking car send the components.However, for the high-speed Mounter with multi-function applications, we have module yt202s, which is similar to RT-1, but there are two mounting head modules, and the installation speed is also twice that of RT-1, with a total of 80000 CPH.

2. First of all, from the appearance of this machine, these two modules are roughly the same. The biggest difference is that yt202s has two mounting heads, while RT-1 is only one. The two heads are distributed on each side of the guide rail. When the machine works, they work for two different PCBS respectively. Two products can be mounted at the same time. It is worthy to be said :One side stops working and the other side continues working,They are controlled independently. Very intelligent.

3. In addition, the structure of yt202s saves more space and labor costs than the two sets of RT-1. Therefore, if you are looking for a higher speed multi-function sorter, please don't miss this model. This is great.



Attention of reflow soldering

1.The reflow soldering furnace must reach the set temperature (green light) , in order to start welding

2.the development of the work requires us to be able to observe the temperature changes in various temperature zones, cross-range 1C (according to the reflow soldering furnace) .

3.when the equipment management problems, should be stopped immediately.

4.the size of the substrate can not be large conveyor belt width, otherwise prone to card board accident.

5.Before welding, take protective measures (shield) or do not reflow soldering for components that can not stand the normal welding temperature according to the processing documents of the patch or the package instructions of the components, and use manual soldering, or welding robot after welding.

6.welding technology in the process of research to prevent the conveyor belt from the impact of vibration, otherwise it will be easy to cause component displacement

7.Time analysis and measurement of the reflow furnace exhaust fan body application: reflow soldering applications are very wide. Now many electronic products are in the development of integration, most of the circuit boards are used in the SMT process, so in the use of SMT process must use reflow soldering. Such as electrical and electronic products, military products and so on.
