Parameter
Dimension:3100*2300*1550mm
Total Weight:1700 kg
PCB Length Width:250*any length
PCB Thickness:0.5-1.5mm
PCB Clamping:Vacuum adsorption, cylinder splint, adjustable track width
Mounting Mode:Group picking and separately placing
Mounting speed: 200000~250000 CPH
Repeat mounting Precision:±0.02mm (Repeat precision)
Mounting Height:≦5mm
Components:LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
Components Space:0.5mm
No. of Feeders Station:68pcs
No. of head:68pcs
Power:380AC 50 HZ
Power Consumption:6kw
Brief introduction

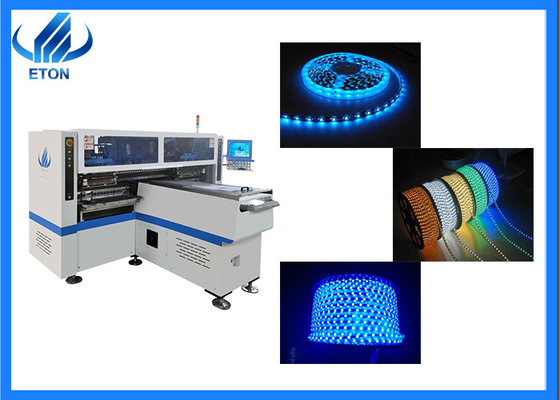

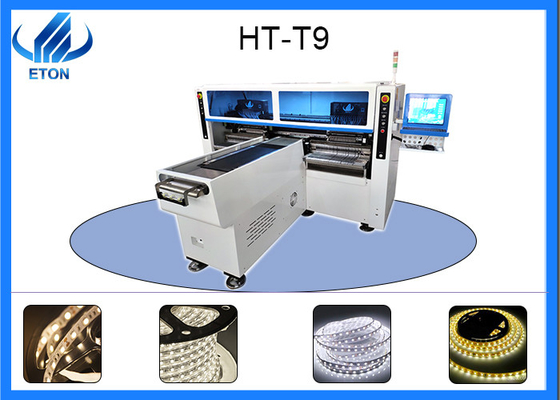

(1)Most of our customers are interested in why this machine can reach so high speed.You know it called mounting module. HT-T9 also has two modules, but one module has 2 mounting parts and each mounting parts has 17 heads. Totally 68 mounting heads. That make HT-T9 can pick and place components such quickly.This is the main reason why HT-T9 can reach 250000CPH and get higher mounting speed.
(3) This machine, even the structure is similar between HT-F7S and HT-T9. But look the part guide rail. HT-7FS is hollow but HT-T9 is solid. That makes HT-F7S need PCB jig to produce LED strip. But HT-T9 no need this. So it solve the long strip PCB jig. In addition, special software makes HT-T9 has the function for roll to roll strip.
(4)So why we said HT-T9 is the most popular model. Cause it is specialized model for the most popular LED products roll to roll strip. No matter 5M strip, 25M strip, 50M strip or even 100M strip light, You can produced by HT-T9.HT-T9 is really a very fantastic model
(5) Someone maybe wonder if the machine is difficult to operate?Don’t worry about this, our software are all research and independent by our company engineer ,so we can teach you operate it and up-grated for free, very easy to control. In particular, it is EVOC brand, the Chinese top one!
FAQ
Q:How many hours does the machine can operate per day?
A: Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
Q:Is the machines easy to operate?
A:Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
