Product Details:
Payment & Shipping Terms:
|
| Dimension: | 2550*1650*1550mm | Total Weight: | 1250kg |
|---|---|---|---|
| System: | Windows7 | Power Consumption: | 4KW |
| Speed: | 40000CPH | Warranty: | 1 Year |
| Software: | R&D Independently | Application: | PCB, Power Driver.electric Board.lens.linear Bulb.household Appliance Etc. |
| Feeders: | 36 PCS | Nozzles: | 12PCS |
| High Light: | smt mounter machine high speed,LED Chip Placement Machine 40000CPH,high speed LED Chip Placement Machine |
||

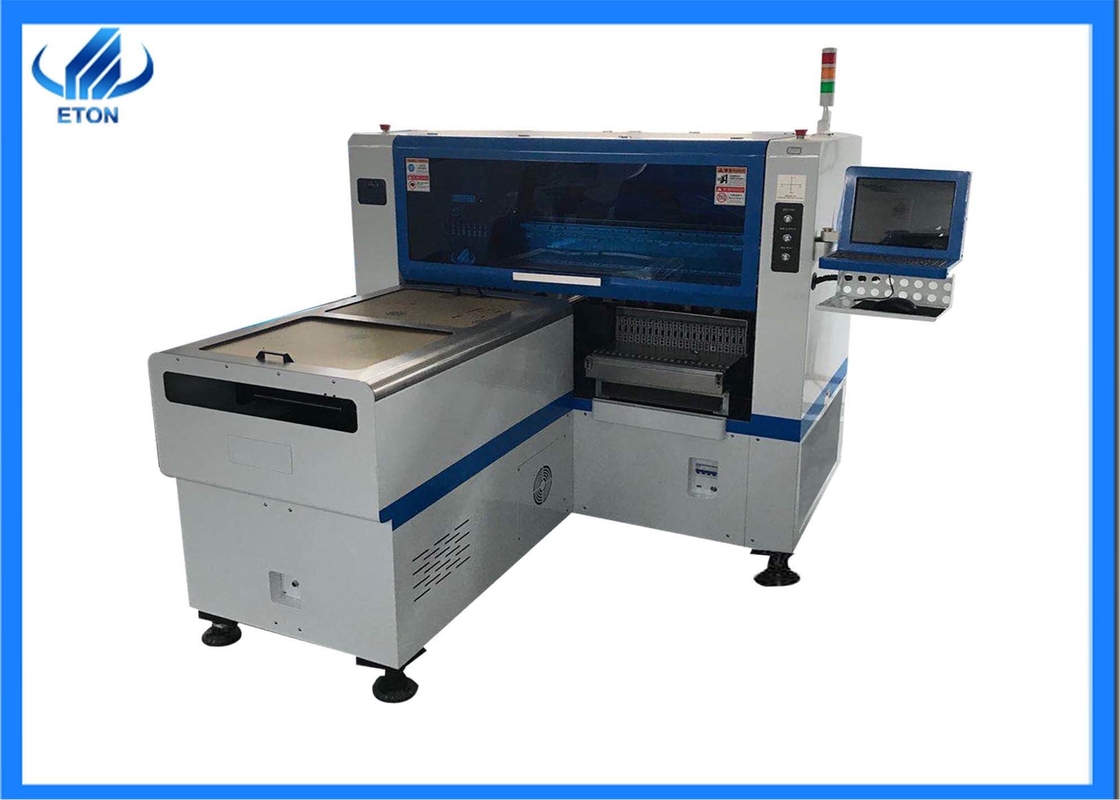

led bulb flexible strip light smt led chip placement machine
Details
1.High-speed magnetic linear motor multi-functional pick and place machine
2. Single module, 8 head pasted on the 8 suction nozzles discharge at the same time
3. The flying camera component identification, maximize placement rate, maximum patch speed 45000 CPH
4.Exclusive patent technology: electronic feeder feeding system, faster and more accurate, MARK correction, non-stop material re-loading system, save time cost and artificial cost. The maximum size of PCB is 1200*350mm
| HT-E8S | ||
| PCB | PCB length width | Max:1200*300mm min:100*100mm |
| PCB thickness | 0.5~5mm | |
| O.S. | system | Windows 7 |
| software | R&D independently | |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <36mm | |
| Mounting speed | 40000CPH | |
| Components space | 0.2mm | |
| No.of feeders station | 30PCS | |
| No.of nozzles | 8PCS | |
| Power | 380AC 50HZ | |
| Power consumption | 4KW | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 1set | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | Electric feeder with double motor | |
SMT Line solution
Automatic stencil printer machine with pick and place machine, loader, conveyor, unloader, reflow oven to be one automatic line. Automatic line save much labor cost compared with the semiautomatic line, also with higher printing precision could produce high quality electrical products. Here are the automatic SMT line solution layout:
