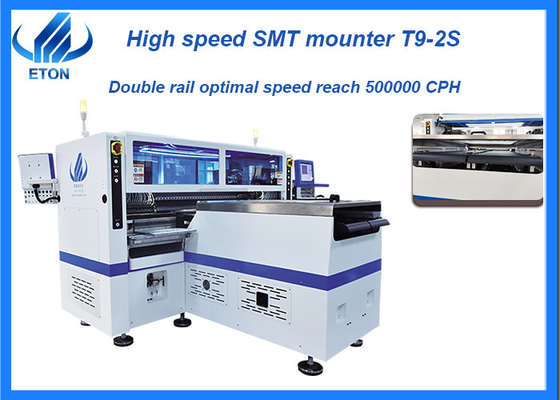

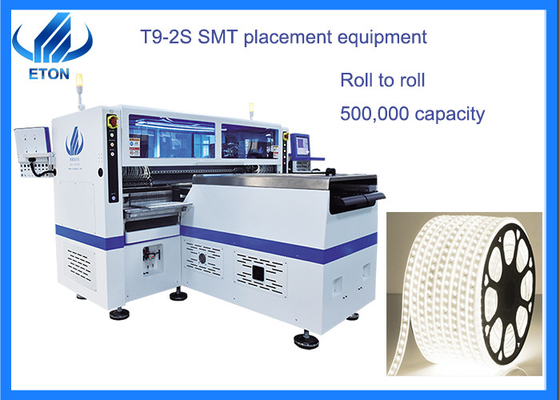

500000 capacity SMT Roll to roll LED chip SMT high speed pick and place machine
Machine main features
- Wide components range: High speed modular heads apply to LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc.
- Unique design component leaking detection and individual component refill function. Recognition camera record the component leaking position of PCB, and fill the missing component accordingly.
- Ultra high speed capacity: 500,000 CPH
Machine main parameter
| Model |
T9-2S |
| Dimension |
(L)3454*(W)3035*(H)1777 mm |
| Total weight |
3100 kg |
| PCB size |
250(±10)mm* Any length |
| PCB thickness |
0.1-0.5 mm |
| PCB clamping |
Vacuum adsorption, cylinder clamping, track width adjustable |
| Mounting way |
Group picking and group placing |
| Mounting mode |
Double rail + Four groups of placement heads |
| No. of camera |
10 sets (Digital camera) |
| Software |
R&D independently |
| Repeat precision |
±0.05 mm |
| Mounting height |
≦5 mm |
| Mounting speed |
Double side: 500,000 CPH
Single side: 250,000 CPH (Optimum speed)
|
| Components range |
LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc. |
| Power consumption |
9.6 KW |
| No. of feeder station |
Double side: 136 PCS (Single side: 68 PCS) |
| No. of nozzles |
Double side: 136 PCS (Single side: 68 PCS) |
