Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT T9-2S Pick And Place Machine |
|---|---|---|---|
| Condition: | Brand-new | Weight: | 3100 Kg |
| Mounting Speed: | Double Side: 500,000 CPH Single Side: 250,000 CPH (Optimum Speed) | Dimension: | (L)3454*(W)3035*(H)1777 Mm |
| Pcb Thickness: | 0.1-0.5 Mm | Positioning Accuracy: | ±0.05 Mm |
| High Light: | Strip Light SMT Pick Place Machine,Strip SMD LED Manufacturing Machine,flex strip SMT pick place machine |
||

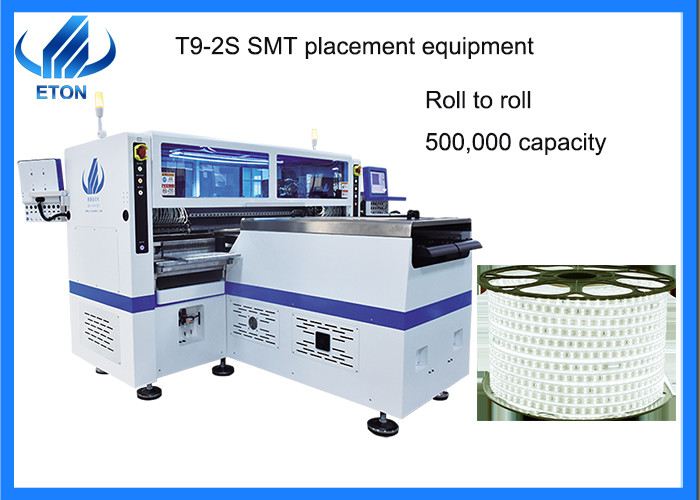

SMD manufacturing 50W LED flexible strip light pick and place machine
Description
High speed modular heads T9-2S apply to LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc. With unique design component leaking detection and individual component refill function, adjust the conveying platform according to various roll to roll strip, range 250±10 mm, the max length range is 1M per cycle.
| Model | T9-2S |
| Dimension | (L)3454*(W)3035*(H)1777 mm |
| Total weight | 3100 kg |
| PCB size | 250(±10)mm* Any length |
| PCB thickness | 0.1-0.5 mm |
| PCB clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
| Mounting way | Group picking and group placing |
| Mounting mode | Double rail + Four groups of placement heads |
| No. of camera | 10 sets (Digital camera) |
| Software | R&D independently |
| Repeat precision | ±0.05 mm |
| Mounting height | ≦5 mm |
| Mounting speed |
Double side: 500,000 CPH Single side: 250,000 CPH (Optimum speed) |
| Components range | LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc. |
| Power consumption | 9.6 KW |
| No. of feeder station | Double side: 136 PCS (Single side: 68 PCS) |
| No. of nozzles | Double side: 136 PCS (Single side: 68 PCS) |
Machine application

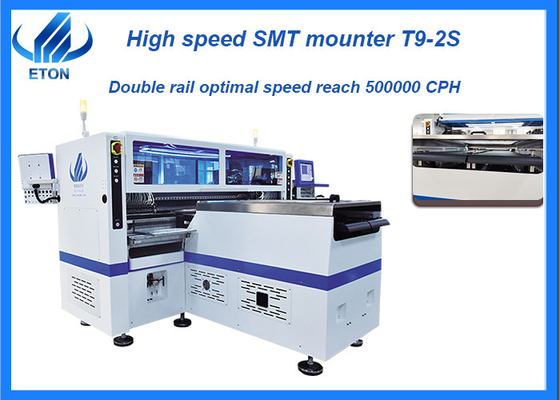

T9-2S high speed mounter which is made for flexible strip, double rail with four placement heads, optimal capacity reach 500000.
Related Machine
ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.
Our Exhibitions
Eton has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 20 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Packages
FAQ
Q. Can I use CIF price?
A. CIF price need add the freight and insurance fee, while for the part of EXW which is cheaper and convenient factor as a suitable price for both sides.
Q. What is your machines quality?
A. As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And awarded as “China high-tech enterprise”, “Shenzhen TOP brand” we ensure our high quality of our machine as an excellent manufacturer in China.
Q. How many hours does the machine can operate per day?
A.Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
Q. Is the machine easy to operate?
A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
