Product Details:
Payment & Shipping Terms:
|
| Name: | Pneumatic Stencil Cleaning Machine | Stencil Size: | 750(L) × 750(W) × 40mm(H) |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 200Kg |
| Condition: | New | Power Supply: | AC220V 50Hz |
| Clean Time: | 2 ～3 Min （solder Paste） | Printing Accuracy: | ±0.025mm |
| High Light: | AC220V Pneumatic Stencil Cleaning Machine,SUS 304 Pneumatic Stencil Cleaning Machine,Modular smt stencil cleaning machine |
||

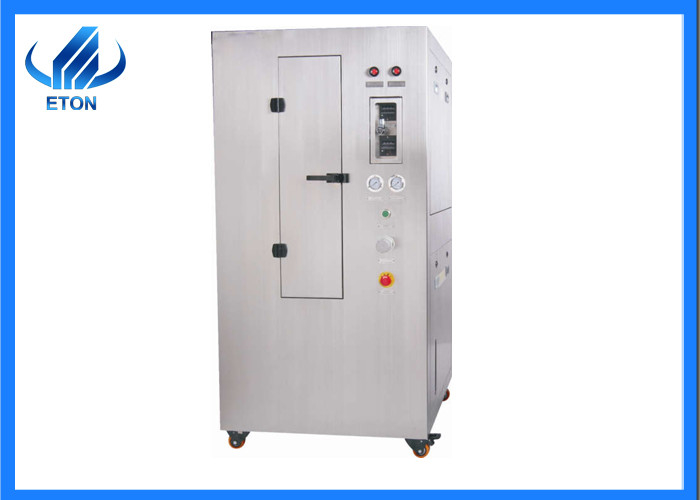

AC220V 50Hz PCB Pneumatic Stencil Cleaning Machine
Main Features:
1. Can clean solder paste stencil,red glue stencil,copper board, resin baord with diffirent cleaning liquid.
2. SUS 304 structure, Acid and Alkali corrosion resistance, 10 years lifespan.
3. All the pipe,Angle seat valve and other parts are SUS304
4. Driven by compressed air, no electricity at all , safe.
5. Special designed rotate rod and nozzle, ensure good cleaning quality and guarantee stable stencil tension.
6. One button easy operation, clean and dry complete automatically.
7. Inner-lock safety door, once open, machine stopped immediately to ensure operator safety.
8. 3-class precise filtering system to make liquid clean by recycled use.
9. Modular design, easy to maintain and repair
Just one key operation, clean+dry process, good clean result, right
for all kinds of stencil
Auto add or discharge function; very easy to add in or discharge clean liquid
Main Specitifion of Pneumatic Stencil Cleaning Machine:
| Item | Technical Spec |
| Stencil size | 750(L) × 750(W) × 40mm(H) as max |
| Liquid tank | 40 L as max |
| Clean method | 360° rotation, double side liquid spray wash |
| Clean time | 2 ～3 Min (solder paste) |
| Air blow dry time | 3 ～5Min |
| Air supply | 0.5 ～ 0.7 Mpa |
| Air flow | 400 ～ 600 L/Min |
| Vent size | Φ124×30mm(H) max air speed 3m/sec |
| Filter system(3 class) | 1st class/2nd class:1mm /50um (impurity and lables) |
| 3rd class:1um (solder balls) | |
| Machine weight | about 200Kg |
| Machine size | 800(L)×950(W)×1630(H)mm |

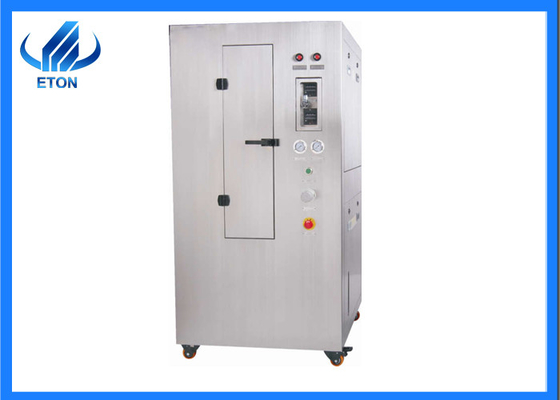

PCB Pneumatic Stencil Cleaning Machine
