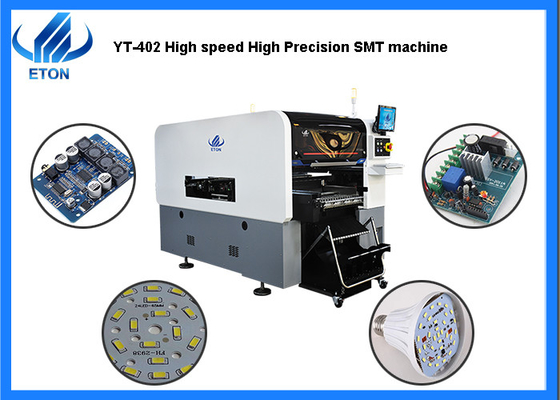

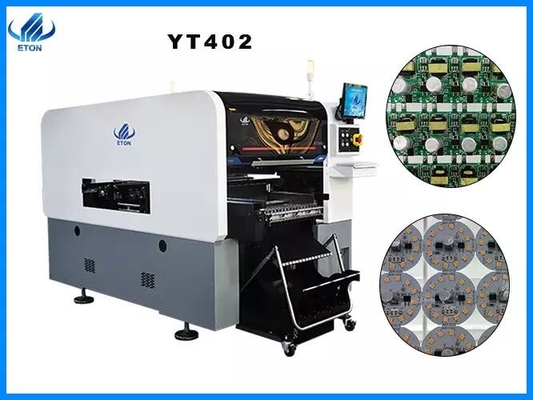

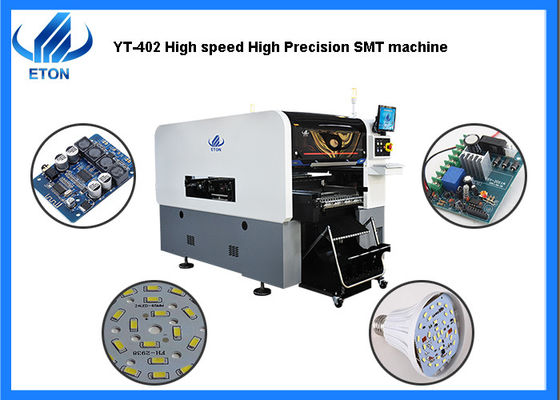

High Precision Automatic Chip Mounter High Speed 120000CPH LED Light SMT Pick Place Machine

Automatic High Precision High Speed 120000CPH led lighting SMT pick and place machine

Machine information

1. Machine highlights

(1) high speed multi modular head, apply to ultra small chip 0201-10*10mm large chip, wider component range

(2) improve recognition performance, size up to 40*40mm.

(3) each module 20 spindles, both high speed and intelligent with light compact design.

(4) each placement head with independent detection function, improves the stability of the equipment and the reliability of the product.

(5)adopt high end magnetic linear motor, servo system and multi function modular head, the capacity increased by 25% compared with traditional machine, optimum placement speed reach 120000 CPH.

2. flexible production

(1)fixed line scan camera: components with size less than 10*10 mm, or height less than 6mm can be used to high speed and high precision identification

(2)MARK recognition: high precision mark recognition system, adopt 3-color illumination recognition, apply to any shape mark and lens, wider range of applications.

(3)docking cart, smart double head tape feeder

3. high reliability

(1)brand new self-developed high precision placement head

(2)combine high accuracy, mark recognition camera with fixed flight vision camera, ensure placement accuracy

(3)the placement head adopt independent vacuum detection improve placement performance

(4)off-line programming, save time of changeover cycle

(5)software AI intelligent learning function and automatic optimization function

4. transmission system structure

(1)two gantry, 120 spindles * 2 gantry, total 40 spindles

(2)flexible PCB handling capabilities, double rail, both gantry can mount the same large PCB at the same time, realizing flexible production

(3)flexible wiring through modular placement heads and various production modes.

Parameter

Company advantages

ETON was established in 2011 with over 10 years experiences in high speed pick and place machine. We are the largest high -tech manufacturer in China with strong capability of design,R&D manufacture,sales&services.“High efficiency” “High quality”and “High Stability ” are he core technology of ETON.

Strong production capacity, ETON have more than 50000 square meter Industrial park in Jiangxi Province, machine capacity more than 50 units/month

133 invention patents and property technology patents, including We got 9 invention Patents, 112 practical patents, 12 software copyrights.

ETON has established R&D center, smt high-speed placement machine division, precision solder paste printing equipment division, high-speed precision dispensing equipment division, smt peripheral automation equipment division and quality inspection center to ensure the quality of the machines.

FAQ

1.Do you provide the complete production line machine?

Yes, of course. We provide the whole production line machine, including solder paste printer machine, conveyor, pick and place machine reflow oven.

2.What are the main appliance about the pick and place machine?

We have many different machine, and different machines apply to different appliance. The main products include bulb, tube, flexible strip, panel light, down light,street light,ceiling light, wall washer light etc.

3. How about the operation software language of the machine?

Our software are Independent R&D by ourselves with 2 language( English and Chinese).

4. What’s the terms of payment?

T/T is OK. You can choose FOB Shenzhen.

5. Who are your main clients?

Our production have exported to more than 20 countries and regions, including South Korea, India, Egypt, Turkey, Russia etc.
