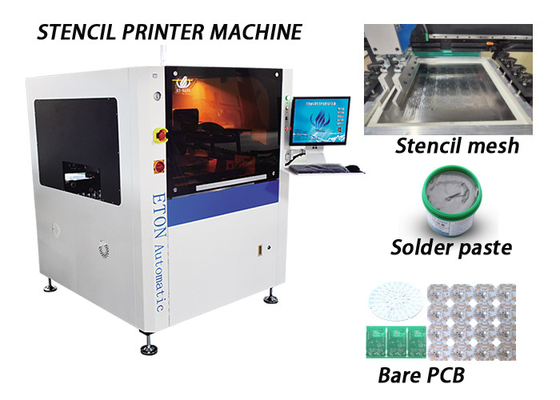

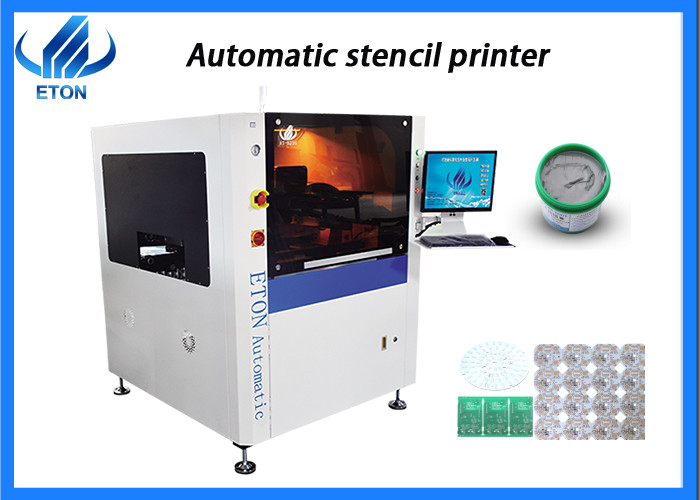

Model: ET5235 Max Size: 737mm
Min Size: 470mm Thickness: 25 〜40mm
PCB Size: Max: 520x350mm Min: 50x50mm PCB Thickness: 0.6 〜6mm
TranspTransport Directionort Height: 900 ± 20m Transport Direction: Left-Right; Right-Left; Left-Left; Right-Right
High Light:

PC control Automatic Stencil Printer

,

300mm/sec stencil printer machine

,

PC control stencil printer machine

Fully Automatic stencil printer machine



Brief introduction of ET5235

The PCB loading direction of ET5235 can be selected and combined freely.with unique crafted internal gear conveyor belt to prevent jamming.Adopt programmable transport speed control makes PCB stop more precise and use flexible side clamps and segmented supports to effectively clamp the PCB to ensure a fully balanced contact between the PCB and the steel mesh.The optimally designed module drive structure effectively improves the stability of the platform calibration,and realizes ultra-small transmission under fine-tuning,so that the machine can meet the printing requirements of higher precision.The structure is simple and reliable,the adjustment is convenient, and the height adjustment of the support PIN of the PCB board with different thicknesses can be quickly realized.The most important thing is that the operating system is simple.The operation interface is simple and easy to learn and use;it has a good man-machine dialogue function;the program file has teaching and navigation functions, each step has a prompt,Chinese and English key switching, as well as fault record analysis and diagnosis functions.this machine is suitable for printing the max PCB size is 520*350mm,the mini size is 50*50mm.

Parameter

MODEL ET5235
Screen Frames Max Size 737mm
Min Size 470mm
Thickness 25 〜40mm
PCB size Max: 520x350mm Min: 50x50mm
PCB thickness 0.6 〜6mm
PCB warpage <1% ( Max PCB diagonal)
Transport height 900 ± 20mm
Transport direction Left-Right; Right-Left; Left-Left; Right-Right
Transport speed Max 1200mm/s Programmable
Board location Support system Magnetic Pin/Up-down table adjusted by manual
Clamping system



Unique top flattened,side clamping

Print head Two independent direct-connect motor-driven printheads
Squeegee speed 6~300mm/sec
Squeegee pressure 0~10kg/cm2
Squeegee angle 55° (Standard)
Squeegee type Steel scraper(Standard),PV scraper(Option)
Stencil separation speed 0.1 〜20mm/sec Programmable
Cleaning system Dryx Wet,Vacuum (Programmable)
Table adjustment ranges X: ± 5mm;Y: ± 5mm; 9 : ± 2°
Printing accuracy ± 0.025mm
Cycle time W9s (Exclude printing & cleaning)
Product changeover <5Min
Air required 4.5〜6kg/cm'
Power input AC:220 ± 10%,50/60HZ 1 3KW
Control method PC control
Dimension 1240(L) x 1450(W) x 1650(H)mm
Weight Approx:700kg
PCB transfer overhead height 10mm




The working principle

The working principle of the full-automatic printer is that the circuit board to be printed is first fixed on the printing positioning table, and then the left and right scrapers of the printer print the solder paste or red glue on the corresponding pads through the steel mesh, and the PCB with uniform printing is input to the mounter through the transmission table for automatic mounting.

Precautions for the use of the printing machine: The best scraper material is steel scraper, which is conducive to the forming and stripping of the solder paste printed on the PCB.The thickness of the steel mesh and the shape and proportion of the openings shall be selected according to the requirements of the product. The tension test shall be carried out on the steel mesh once a week, and the required tension value shall be above 35 N/cm.And when printing 5-10 PCB boards continuously, wipe them once with dust-free screen paper, preferably not with rags.
