Product Details:
Payment & Shipping Terms:
|
| Dimension: | 3100*2300*1550mm | PCB Size: | 250*any Length |
|---|---|---|---|
| PCB Thickness: | 0.5~1.5mm | Mounting Mode: | Group Picking And Group Placing |
| Mounting Speed: | 200000~250000 CPH | Mounting Precision: | ±0.02mm (Repeat Precision） |
| No.of Feeders Station: | 68 PCS | No.of Head: | 68 PCS |
| High Light: | Flexible Strip SMT Pick Place Machine,SMT Pick and Place Machine 25W CPH,Roll To Roll Pick Place Machine |
||

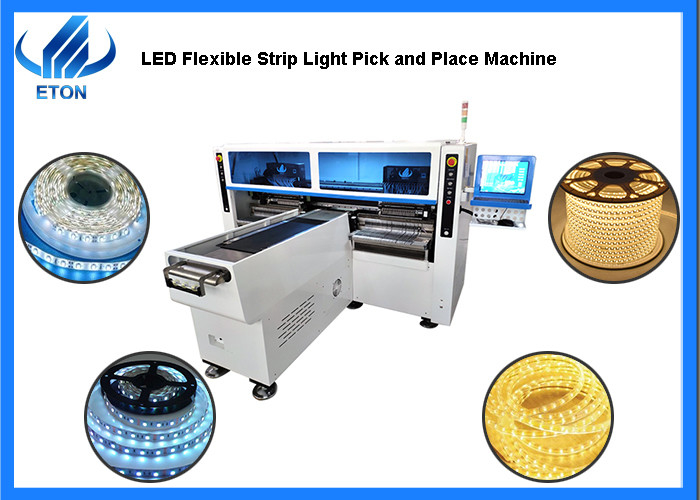

Any Length Flexible Strip SMT Pick and Place Machine 250000CPH Roll To Roll
Production Introduction of Pick and Place Machine HT-T9
Dual-arm magnetic linear high-speed mounter for flexible strip(no wire), Producing 4 types materials at the same time capacity reach 250000 CPH.
Exclusive patent technology: Group to take and group to mount.
Calibration automatically, high precision, available for RGB.
Available for 5M, 50M or any length of flexible strip and Roll to Roll.
Dual arm four modules, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Keywords:
led tube light making machine
led flexible strip light making machine
led machine manufacturer
HT-T9 of Technical Parameter
| Dimension | 3100*2300*1550mm |
| PCB Size | 250*any length |
| PCB Thickness | 0.5~5mm |
| Mounting mode | Group to take and group to mount |
| Mounting precision | ±0.02mm (Repeat precision) |
| Mounting height | Standard:≤5mm |
| Mounting speed | 200000~250000 CPH |
| Components |
LED 3014/3020/3528/5050 and resistors, capacitors,bridge rectifiers etc. |
| Components space | 0.5mm |
| No.of feeders station | 68 PCS |
| No.of head | 68 PCS |
| Power | AC 380V 50Hz |
| Power consumption | 6 KW |
| X,Y,Z Axis drive way | High-end magnetic linear motor and servo motor |

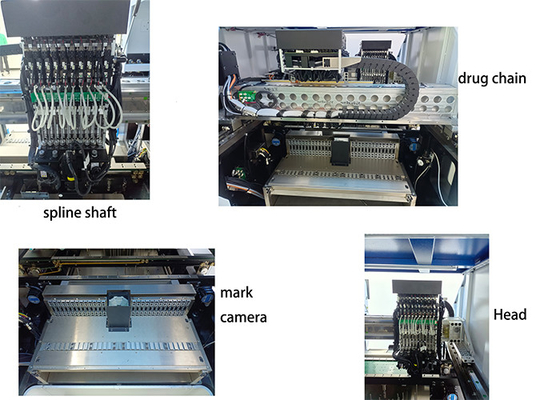

HT-T9 Picture
Application of HT-T9
Apply to 5M, 25M,50M or any length of flexible strip and Roll to Roll.
Introduction of exhibition
Our company go to many places to participate in the exhibition.
Foreign exhibition: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.
Domestic exhibition:Guangzhou international lighting Exhibition, Shanghai electronica Exhibition, Chongqing LED Light Exhibition,etc.
Package and Delivery of Pick and Place Machine
Filming packing:Make the machine sanitary, clean, sealed packaging, dust and humidity; have good shock resistance, impact resistance, and good protection performance with tightness and fixity.
vacuum packing:Advantages of moisture proof,dust proof and so on.
wooden packing: It has good cushioning performance, corrosion resistance, high strength and hygroscopicity, moisture-proof and earthquake-resistant functions.
Our after-sales service of Pick and Place Machine
FAQ
Q: If my order is very urgent, how long you can proceed?
A: We have helped many clients with their urgent demand. If your order is urgent, please contact with our specialist and we will help you to apply special support.
Q:What are your advantages?
A: Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Q: Is your software interface in English?
A: English interface and Chinese interface are both available.
Q: It’s hard to use the machine?
A: No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
Q: How is the installation and training?
A: After buying our machines,our engineer will visit to your factory installation and training for free.
