Name: | Pick And Place Machine | Model: | HT-E8S |
---|---|---|---|
Brand: | ETON | Camera: | 2 Sets Of Import Camera |
Heads: | 12 PCS | Feeder Station: | 28 PCS |
Feeding Way: | Electric Feeder With Double Motor | Mounting Speed: | 45000 CPH |
Mounting Mode: | Group Picking And Separately Placing, Separately Picking And Separately Placing | ||
High Light: | Intelligent SMT mounting machine,DOB Bulbs SMT mounting machine,Electric Feeder Led Bulb Manufacturing Machine |

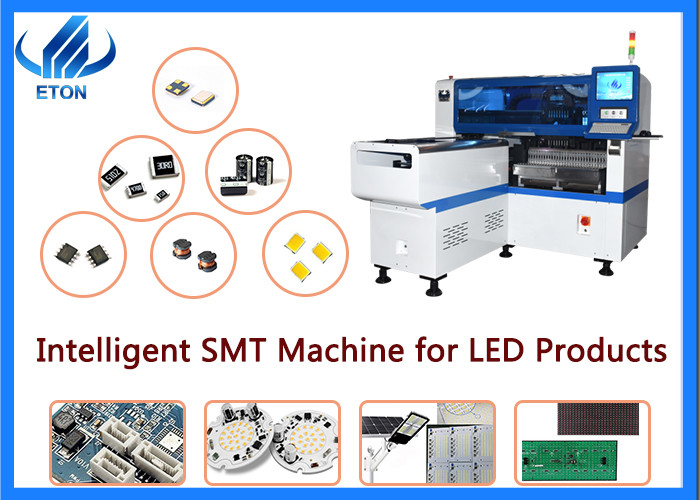

Intelligent smt machine for led DOB Bulbs lighting SMT mounting machine
Technical parameter
Model | HT-E8S-1200 |
Dimension | |
Length | 2550 mm |
Width | 1650 mm |
Height | 1550 mm |
Total Weight | 1700 kg |
PCB | |
PCB Length Width | Max:1200*500mm Min:100*100mm |
PCB Thickness | 0.5-5mm |
PCB Clamping | Adjustable pressure pneumatic |
Mounting Mode | Group picking and separate placingseparate picking and separate placing |
O.S. | |
System | Windows7 |
Software | R&D independently |
Vision System | |
No. of Camera | 2 sets of imported camera |
Vision for the flight identification, MARK correction | |
Mounting Precision | ±0.04mm |
Mounting Height | <15mm (Automatic Changing) |
Mounting Speed | 45000 CPH |
Components | LED , capacitors, resistors, IC,shaped components, etc. |
Components Space | 0.2mm |
No. of Feeders Station | 28 PCS |
No. of nozzles | 12 PCS |
Air supply | 0.4-0.6mpa (4-6kgf/cm2)150N/min |
Electrical control | Independent research and development by ETON |
X,Y,Z Axis Drive way | High-end magnetic linear motor + Servo motor |
Feeding way | Electric feeder with double motor |
Main part of HT-E8S
1. the Guide rail is supporting and guiding moving parts,
2. HT-E8S has Mark camera, automatically recognizes the mark points
3. the position sensors can identify the position and transmission of the PCB, makes the machine more intelligent and sensitive
5. the Drag chain is suitable for using in reciprocation motion occasions, provide traction and protection for bulit in cables and air pipes.
6. we have strong technology support for software upgrade, support remote control and multi-language customization
the layout of SMT production line of HT-E8S
Semi automatic printer machine - Pick and place machine - Conveyor - Reflow oven
