Product Details:
Payment & Shipping Terms:
|

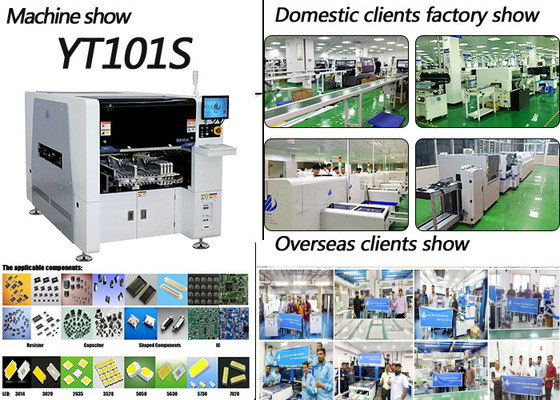

| Model: | YT101S | Length: | 2154mm |
|---|---|---|---|
| Width: | 1376mm | Height: | 1762mm |
| Total Weigth: | 1700kg | Mounting Speed: | 40000CPH |
| High Light: | 40000CPH DOB Bulb Making Machine,Double Feeder DOB Bulb Making Machine,DOB bulb SMT line |
||
DOB bulb making machine SMT line
| PCB thickness | 0.5-4.5mm |
| Repeat precision | ±0.02mm |
| Mounting height | ≤20mm |
| Mounting speed | 40000CPH |
| Components range | Min 0201-40*40mm packages and IC etc |
| No.of head | 10pcs |
| Feeding way | Intelligent Double head feeder |
DOB Bulb making machine SMT Line is included stencil printer machine, conveyor, pick and place machine, reflow oven machine.

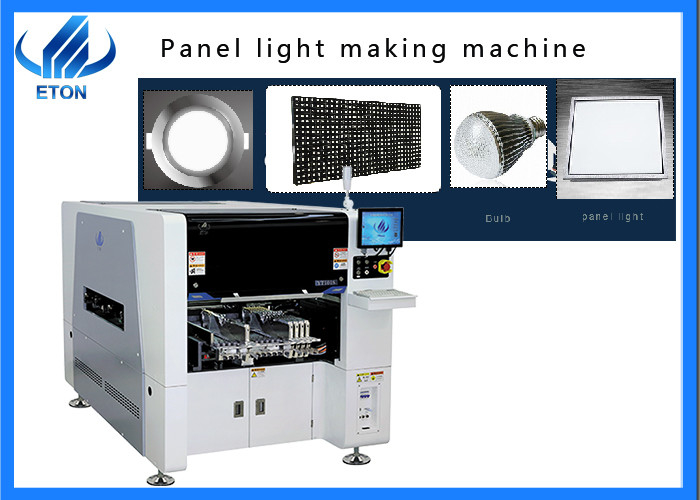

And this line is also not only suitable for making DOB, but also could be produce other led lighting, like the down-light, street light, panel light, driver board, etc.
Packing
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
FAQ
Q: What is the payment method?
A: We support T/T payment.
Q: When is the delivery time?
A: Delivery within 30 days after payment.
Q: What is the shelf life?
A: 1 year warranty.
Q: What are the main LED products our machines for?
A: There are different machines in our company and different machines apply to different LED lights. The main products we can apply:bulb tube strip lamp panel. Down light,streetlight,ceiling light.wall washer light and so on.
Q: Do our machines only for LED lights?
A: No,our machines apply to not only LED light but also other products. Such as power driver, electric board, display, etc.
