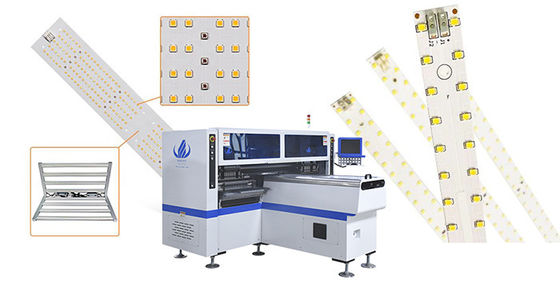

Double Arm PCB Mounter Machine High Speed LED Tube Making Machine

LED Tube PCB mount making machine

F7s introduction

1. The simultaneous production of a variety of materials does not affect high production capacity. It is suitable for 0.6, 0.9, 1.2 meter hard light panels and 0.5/1 meter soft light strips

2. Double arm special high-speed chip mounter, 34 suction nozzles and 68 Feida, making the mounting speed up to 150000-180000cph

3. Hikvision camera, the top domestic brand, and five sets of cameras, including visual alignment camera and mark correction camera, are used to improve the mounting accuracy

4. Linear motors are used for X and Y axes, with higher mounting accuracy, faster speed and longer service life

Equipment required for making lamp tubes

1. Printing machine: solder paste is missed on the solder pad of PCB

2. Docking station: transmission PCB board, with buffer function

3. Mounter: mount components to the designated position of PCB

4. Reflow soldering: heating is the melting of solder paste, so that PCB and components can be better adhered

The most critical step is the placement, which is to ensure the quality of the entire PCB

The raw materials to be prepared include solder paste, lamp beads, PCB board lamps

Our market

Domestic market: in China, we help 80% of people build factories, and the scale is large, such as MLS, opple, NVC, etc; Every year, hundreds of our machines are sold abroad. Undoubtedly, there are many customers, including rk, rangdong, calcom, polyca, Surya, etc.

FAQ

Q: How is the training?

A: After purchasing our products, you can send your engineers to study in our factory, or we can send our engineers to yourfactory to train your staff for you .

Q: Do you have a product certification certificate?

A: Our products have CCC, CE, SRIA certification.

Q: How about the after-sale service? How about the warranty?

A: We have a team of professional engineers to solve your problems. Any parts that require repair and replacement are free ofcharge during the warranty period. We can also provide you with training and on-site installation, and support remote control of the machine, the machine uses Chinese and English interface, very easy to operate.
