Product Details:
Payment & Shipping Terms:
|
Model: | HT-E8S-1200 | Warranty: | 1 Year |
---|---|---|---|
Applicable Components: | 0402 | Name: | SMT Pick And Place Machine |
Application: | SMD Production Line | Condition: | New |
Mounting Speed: | 40000 CPH | Feeders: | 28 |
High Light: | SMT mounter 40000CPH,LED Lighting SMT mounter,Pick And Place Machine 4W CPH |

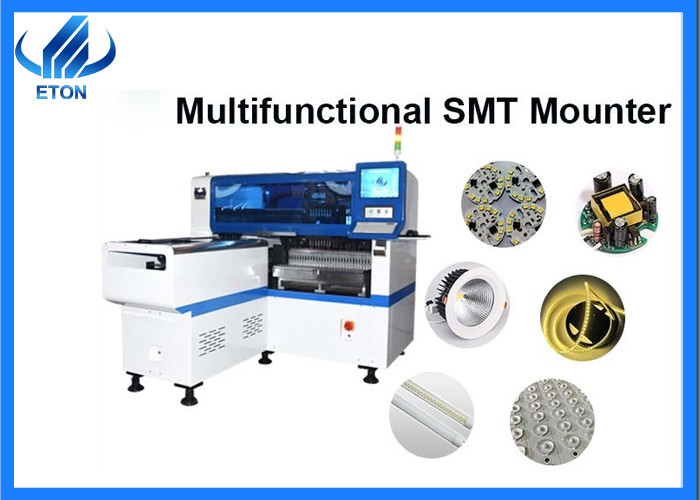

Multifunctional SMT mounter HT-E8S 40000CPH in the LED lighting production Line
Advantages
*Single module magnetic linear motor multifunctional SMT machine.
*Vision alignment flight identification, Mark correction.

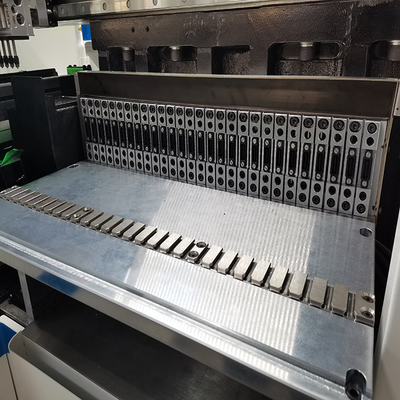

*Electronic feeder feeding system.
*The mounting speed can reach 45000CPH.
*It can produce power drive,electric board,lens,DOB bulb, etc.
*Mounting components: LED chip, capacitors, resistors, IC, shaped components.
Mounter Introduction
Pick and place machine, also known as "Mounter" and "surface mount system", is a kind of equipment configured after dispensing machine or screen printing machine. It is a kind of equipment that accurately places surface mount components on PCB pad by moving the mounting head. It is used to realize high-speed and high-precision placement of components. It is the most critical and complex equipment in the whole SMI and production.
Specification
Length | 2550mm |
Width | 1650mm |
Height | 1550mm |
Total weight | 1700kg |
PCB size | Max:1200*500mm Min:100*100mm |
PCB thickness | 0.5-5mm |
Mounting height | <15mm |
Mounting speed | 45000CPH |
No.of head | 12PCS |
Mounting precision | ±0.04mm |
SMT line solution
We have full range of pick and place machine production line equipment , So we have the professional suggestions for you to build the production line. Below are the suggestion of basic steps for the pick and place progress and equipment :
Semi-automatic stencil printer→Single-rail conveyor→Pick and place machine(HT-E8S-1200)→Single-rail conveyor→Reflow oven
Related machine
Besides pick and place machine, our company have many other related machine. If you want to have much machine details and machine parameter, price etc, please contact us right now.
ETON Profile
Company five level managerment policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
"No worries"after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.
Eton mission: professional, excellent technology, sharing the results.
Eton goal: to create a national brand, build international Chinese enterprise.
Eton purpose: to create value for customers, creating benefits for society.
FAQ
1.I want to buy machine for all kinds of led lighting?
We have multifunctional module HT-E8S-1200 suitable for mounting many kind of led lighting, such as led bulb, panel, DOB, strip light, tube, display, down-light, street light, etc. One module meet all your need.
2.Does the price include spare parts(nozzle and feeder)?
Different client has different requirements on spare parts, it is not fair to clients to add In equivalent price for spare parts. So we don’t add the spare parts cost on price. And price is only for machine .
3.How many hours per day can this machine work?
Machine can work whole day. To extend the life of the machine, we suggest you to have 1 hour or 2 hours off per day.
4. How is the working efficiency of the machine?
The working efficiency of the machine is very high, and it will be more efficient if it is used in the production line with other related machines.
