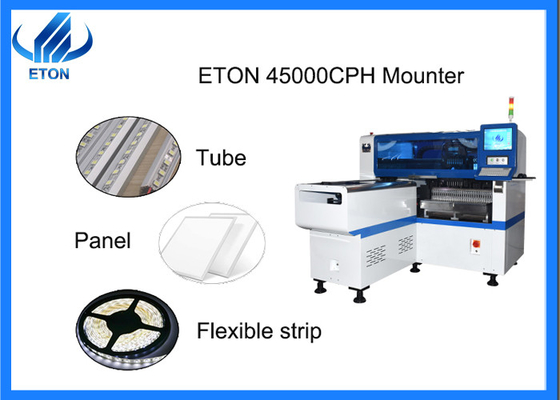

Power Driver SMT Mounter For Min 0402 Components SMD Production Line

Power Driver SMT Mounter For Min 0402 Components SMD Production Line
Power Driver SMT Mounter For Min 0402 Components SMD Production Line

Large Image :  Power Driver SMT Mounter For Min 0402 Components SMD Production Line

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE, CCC, SIRA
Model Number: HT-E8S-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum adsorption, wooden packing
Delivery Time: 30 days after receive the down-payment
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Model: HT-E8S-1200 Warranty: 1 Year
Applicable Components: 0402 Name: SMT Pick And Place Machine
Application: SMD Production Line Condition: New
Mounting Speed: 40000 CPH Feeders: 28
High Light:

min 0402 SMT mounter

,

0402 Components SMT mounter machine

,

Power Driver SMT Mounter

SMT mounter Power driver making mounter min.mount 0402 components



Machine Specification

Model HT-E8S-1200
Dimension(L*W*H) 2550*1650*1550mm
Weight 1700kg
PCB length width Max:1200*500mm;Min:100*100mm
PCB thickness 0.5~5mm
Mounting mode Group picking and separately placing, separately picking and separately placing
Mounting height <15mm(automatic changing)
Mounting speed 45000cph
Power consumption 4KW

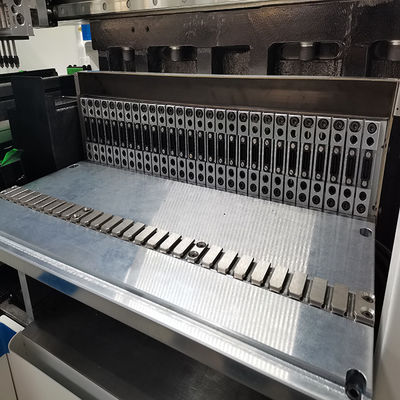

No. Of feeders station 28 PCS single module
No. Of head 12 PCS Single module





Products Description

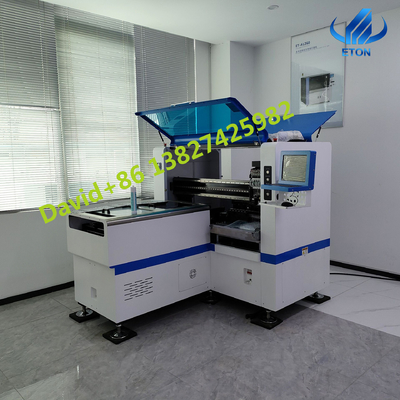

Single module, Automatic multifunctional SMT machine, suitable for PCB length width: max 1200*500mm min 100*100mm

The machine mounting mode is group picking and separately placing, separately picking and separately placing.

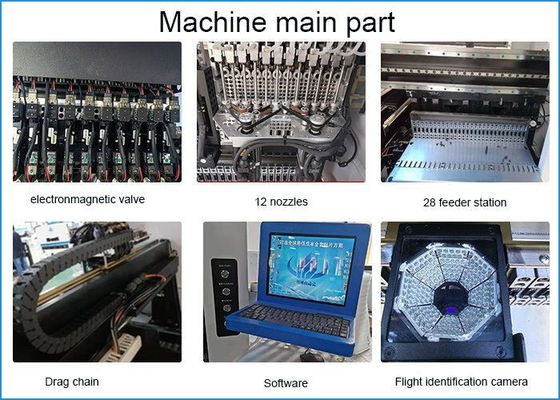

Two sets of imported cameras, vision for the flight identification, Mark correction.

Feeding way is electric feeder with double motor.



Products features

Single module magnetic linear motor multifunctional pick and place machine

Mounting components: LED chip, capacitor, resistor, lens, IC, shaped components,etc.

Component: min. Size 0402 max. Height 15mm

Application: Power drive, electric board, lens, DOB bulb, linear blub, household appliance etc.





Our market and clients

ETON is a leading pick and place machine manufacturer in China, and ETON machine have been exported more than 20 countries , such as India, Turkey, Egypt, Thailand, Vietnam, Etc. More than 70% big led lighting company are our clients,such as POLYCAB, ZTS, SKYQUAD, CEPL enterprise etc.

Power Driver SMT Mounter For Min 0402 Components SMD Production Line 0



Services

1.Visiting customers regularly and gather information.

2.Provide latest information about technology and equipment.

3.We will provide video training online with you as long as bought machine, Which ensured you

you could operate our machine.

4.We can send our foreign engineers to buyer’s factory to install machine freely.

5.Any parts need to be repaired and replaced will be free during warranty(1 year).





Packing and delievery

Step 1. Film packaging.

Step 2. Add foam+film packaging.

Step 3. Unique tin foil packaging.

Step 4. customized Strong wood carton packing.

Power Driver SMT Mounter For Min 0402 Components SMD Production Line 1



FAQ

1. Can you provide whole SMT line with me?

Of course. we can provide whole line solution if you want. We are very professional on SMT field.

2. What is the difference Between full automatic line and semi automatic line ?

SMT production line mainly include stencil printer , pick and place machine, oven machine.

The main difference between a fully automatic production line and a semi-automatic production line is whether the printing machine is a fully automatic or semi-automatic printing machine, which is more expensive than a semi-automatic production line.

3.Can we customize the machine?

Of course. All of our machine can be customized.

4.How to ensure the quality?

Final Inspection and testing before shipment. We have our own industrial park with R&D center and quality control center to ensure the quality of the machines
