Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Applicable Components: | Min 0201~40*40 Mm Tape Reel Packages And IC Tray Feeder Etc. |
---|---|---|---|
Condition: | Brand-new | Weight: | 1700KG |
Mounting Speed: | 80000 CPH | Dimension: | 2788*1686*1375mm |
Feeders: | Double Side Docking Cart Slot 32PCS,tape Reel Packages:64PCS(single Side Docking Cart Slot 16PCS,tape Reel Packages:32PCS),freely Switching Between Docking Cart And IC Tray Feeder(IC Tray Feeder:Option) | Pcb Thickness: | 0.5-4.5 Mm |
High Light: | Min 0201 SMD mounter,Double Module SMD mounter,Module Head SMT Pick And Place Machine |

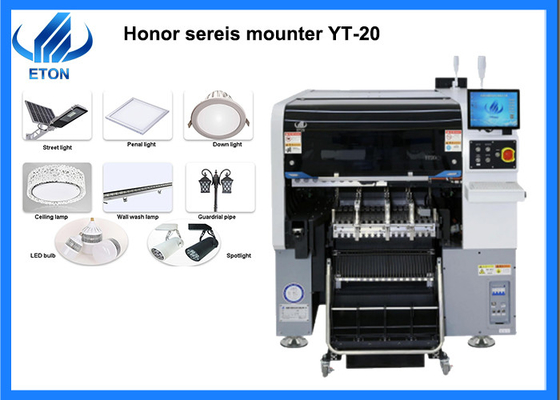

New mounter SMD Min 0201-40*40mm double module pick and place machine
Machine main features
l Double side docking cart slot 32PCS,tape reel packages:64PCS(single side docking cart slot 16PCS,tape reel packages:32PCS),freely switching between docking cart and IC tray feeder(IC tray feeder:Option)
Model | YT-20 |
PCB size |
Max size: 500*450 mm(Single side) 500*300(Double side) Min size: 50*50 mm |
PCB thickness | 0.5-4.5 mm |
PCB clamping | Cylinder clamping, track width adjustable |
Rail | 2 rail, 2 gantries(Rail 1,4 are fixed rail) |
Software | R&D independently |
Production management MES system | Customized (Option) |
Off-line programming | Available |
Camera |
Bottom vision camera recognition/ Flight identification camera
|
Repeat precision | ±0.02 mm |
Mounting height | ≦15mm |
Position mode | Optical |
Optimal speed | 80000 CPH |
Component range | Min 0201~40*40 mm tape reel packages and IC tray feeder etc. |
Position mode | Optical |
No.of heads |
Double side docking cart slot 32PCS,tape reel packages:64PCS(single side docking cart slot 16PCS,tape reel packages:32PCS),freely switching between docking cart and IC tray feeder(IC tray feeder:Option)
|
Feeding way | Intelligent double head feeder |
X,Y,Z Axis drive way | High-end magnetic linear motor + Servo motor |
Packages
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Machine application
Shipping and Delivery
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
FAQ
Q. If I need a perfect line of the machine can you supply?
A. Yes, for the requirements of a whole line for production, we have professional equipment to make up for a perfect production line for your products, on account of we have a 50000 square meters of industrial park and excellent R&D staff, which can produce 50 sets of machine per month.
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs.
Q. How many components can your pick and place machine mount in a PCB board?
A. While this is for our clients needs and the size of the PCB board.
Q. How long is the machine maintenance period, whether it is free?
A. The maintenance period of our machine is 1 year and its free for our clients, after the maintenance period we will arrange our engineers to check and test the machine one or two times a year freely.
