Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Application: | SMD Production Line |
---|---|---|---|
Power Supply: | 380AC 50HZ | Condition: | Brand-new |
Weight: | 1700KG | Mounting Speed: | 80000 CPH |
Pcb Thickness: | 0.5-4.5 Mm | Feeder: | 64PCS (Double Side) 32PCS (Single Side) |
High Light: | modular head LED chip Mounter,Min 0201 LED chip Mounter,SMT pick and place Machine 80K CPH |
Wider range 80000 CPH LED chip Min 0201 SMT pick and place mounter
Machine main features
Machine main parameter

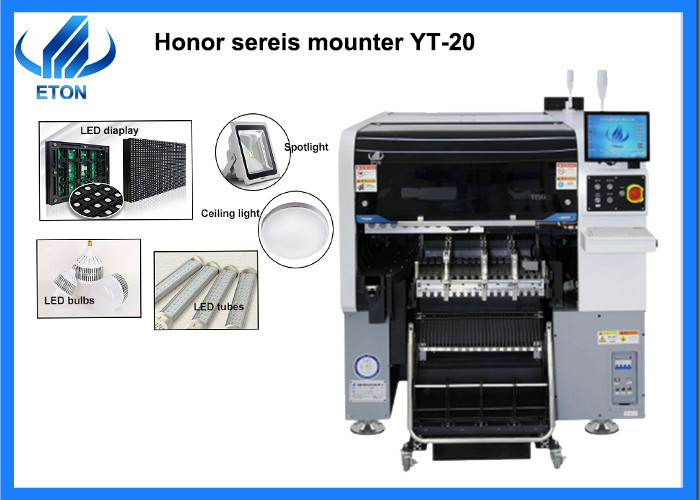

Model | YT-20 |
PCB size |
Max size: 500*450 mm(Single side) 500*300(Double side) Min size: 50*50 mm |
PCB thickness | 0.5-4.5 mm |
PCB clamping | Cylinder clamping, track width adjustable |
Rail | 2 rail, 2 gantries(Rail 1,4 are fixed rail) |
Software | R&D independently |
Production management MES system | Customized (Option) |
Off-line programming | Available |
Camera |
Bottom vision camera recognition/ Flight identification camera
|
Repeat precision | ±0.02 mm |
Mounting height | ≦15mm |
Position mode | Optical |
Optimal speed | 80000 CPH |
Component range | Min 0201~40*40 mm tape reel packages and IC tray feeder etc. |
Position mode | Optical |
No.of heads |
Double side docking cart slot 32PCS,tape reel packages:64PCS(single side docking cart slot 16PCS,tape reel packages:32PCS),freely switching between docking cart and IC tray feeder(IC tray feeder:Option)
|
Feeding way | Intelligent double head feeder |
X,Y,Z Axis drive way | High-end magnetic linear motor + Servo motor |
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA, etc.
Our Exhibitions
Eton has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 20 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Service
Related machine
ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.
FAQ
Q.How can I make inspection when something wrong with the machine?
A. Well, the inspection is taken by our professional engineer to check and modulate the machine, if you counter any problem of our machine please contact us, and we will arrange our engineer to solve it.
Q. How can I contact you to buy the goods in an efficient way?
A. Making enquiry of the products you want on the trading platform of Alibaba, Tradelink, foreign trade Express, or contact us with the social software as Whatsapp, Skype, etc.
Q. How can I look around your industrial park if I am on aboard?
A. If you have Chinese agent we can make an appointment to show you the environment, of course we also can make video call to show you the industrial park, or we will do some video to you if you need.
Q. Can you accept D/P or D/A as the payment term?
A. For our regular payment terms, we usually use T/T.
