Product Details:
|
PCB Thickness: | 0.5-5mm | Machine Name: | LED Tube Mounter Machine |
---|---|---|---|
Mounting Height: | No More Than 5mm | Mounting Speed: | 150000~180000 CPH |
High Light: | led tube LED chip mounter machine,Double Head LED Chip Mounter Machine,LED tube mounter machine |
LED chip mounter machine for led tube
F7s High speed led tube chip mounter machine
F7S is double mounting head high speed led chip mounter machine, it is suitable for producing:
LED Tube
LED Strip light
LED Panel light
Other led lighting board
LED light tube refers to the light tube that uses LED as the light source. Compared with fluorescent tubes, it is more energy-saving, cheaper, longer life, drop-resistant and simple in structure. It is a good substitute for fluorescent tubes in the future.
Machine parameter
Here are the machine main parameter
PCB Length Width: Max:1200*330mm Min:100*100mm
PCB Thickness: 0.5-5mm
PCB Clamping: Adjustable pressure pneumatic
Mounting Mode: Group picking and separately placing
Mounting Height: ≦5mm
Mounting Speed: 150000~180000 CPH
Components: LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
Machine features
F7S mounter is high speed , high capacity with 34 mounting heads
It is suitable for mounting four different smd components at the same time
More intelligent with the upgrade with the camera and the head control design
Suitable for max pcb size: 1200*330mm, meet most of led lamp manufacturing

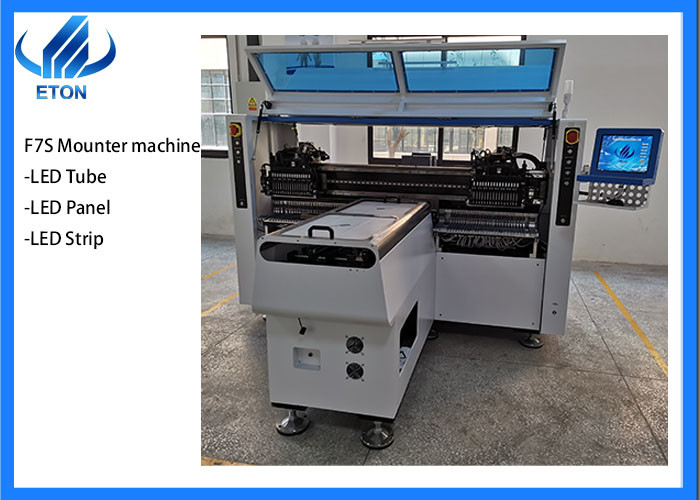

Machine picture
Service
Provide online service and the intelligent line design according to client’s feature
Machine free upgrade for the software
Engineer on door service for machine install and training.
RFQ
Do you sell oven machine ?
A: Yes, we could supply whole smt line according to your inquiry
Could it display with the English interface ?
A: Yes, support the Chinese and English interface
We want to add a high speed multifunctional mounter machine for producing DOB, LENS Lighting board, Led tube, panel light, led display, do you have machine recommend?
A: Yes, we have high speed and intelligent mounter machine could produce the poduct you want.
4. What size of led tube could made?
A:The specifications and models of the lamp tube, if according to the traditional method, there are T4, T5, T8, and T9, T10. The T here means that the shape of the fluorescent tube is tubular. The numbers behind represent its length, for example, some are 26×600 mm, and there are 26×900 mm, 26×1200 mm or 26×1500 mm. Different lamp specifications have different diameters. If you choose a T5 lamp, the diameter is 16 mm, and the diameter of the T4 lamp is 12.7 mm.
Above led tube all suitable for produce
