Product Details:
Payment & Shipping Terms:
|
| PCB Size: | 250(±10)mm*any Length | PCB Thickness: | 0.1-0.5mm |
|---|---|---|---|
| PCB Clamping: | Vacuum Adsorption,cylinder Clamping,track Width Adjustable | Mounting Way: | Group Picking And Group Placing |
| Mounting Mode: | Double Rail+Four Groups Of Placement Heads | Mounting Speed: | 500000CPH |
| No.of Heads: | 136 PCS | No.of Camera: | 10 Sets |
| Components Range: | LED 3014/3020/2835/5050 | Feeding Way: | Intelligent Electric Feeder With Double Motor |
| No.of Feeder Station: | 136 PCS | ||
| High Light: | SMT Production Line Chips Mounter,Strip Light LED Chip Mounter,LED Chip Mounter 500000CPH |
||

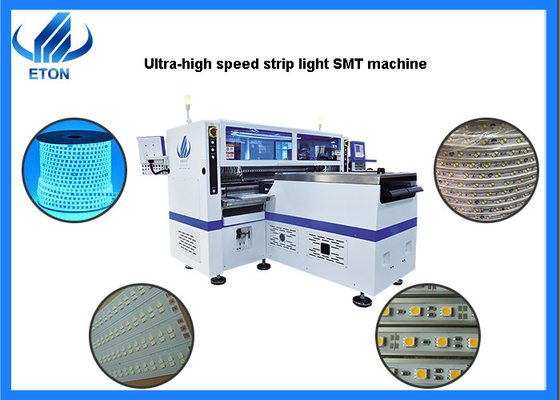

SMT Production Line LED Chips Ultra-High Speed Strip Light SMT Machine Capacity Reach 500000CPH
Features
Machine feature
High productivity: ETON tech adjustable placement head; unique design component leaking detection and individual component refill function; ultra-high-speed capacity
Flexible production: adjustable the conveying platform according to various roll to roll strip, range 250±10mm, the max length range is 1M per cycle.
The distance of feeder station can be flexibly adjusted to achieve group picking and group placing, so as to realize the function of two time picking and once placing.
The range of feeding station is double o placement head, can produce four kinds of materials at the same time.
Intelligent electric feeder, supporting high-speed machine series.
High performance: flight recognition camera, no pause to detect the presence or absence of components,component adsorption state, prevent placement errors.
Automatic production with identification data, correction and fill missing component automatically.
The clamping rod is driven by the air cylinder to correct the materials taken by mounting head.
With the function of filling missing component automatically, realize industry 4.0 unmanned workshop.
Compliant with CF standards.

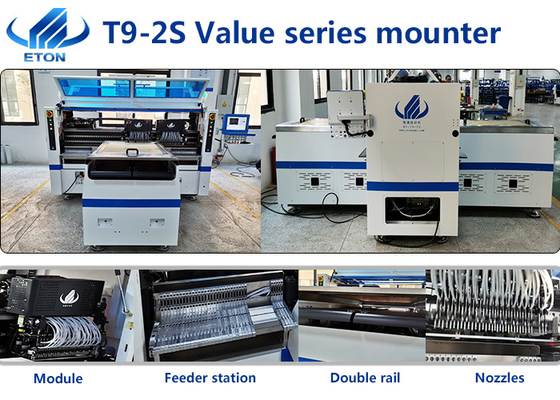

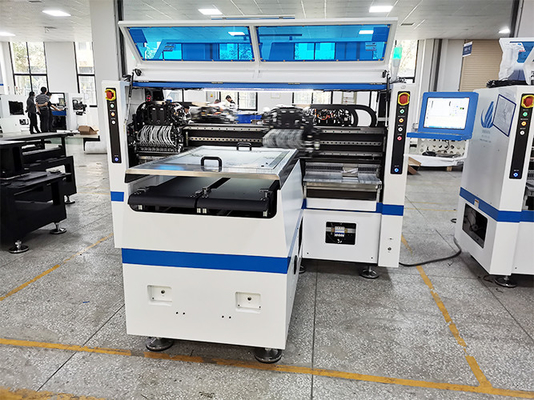

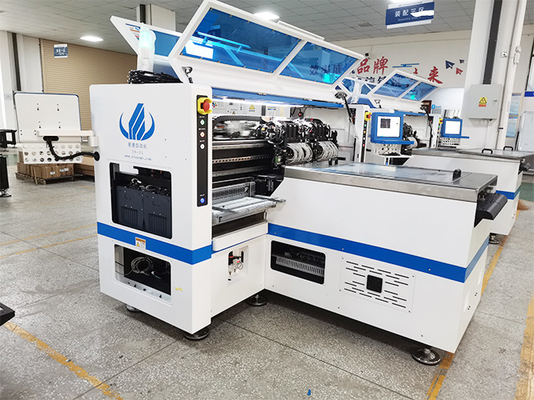

Product Picture
Machine parameter
| Model | T9-2S |
| PCB size | 250±10mm*any length |
| PCB thickness | 0.1-0.5mm |
| PCB clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
| Mounting way | Group picking and group placing |
| Mounting mode | Double rail + four groups of placement heads |
| Mounting speed |
Double size:500000CPH Single size:250000CPH |

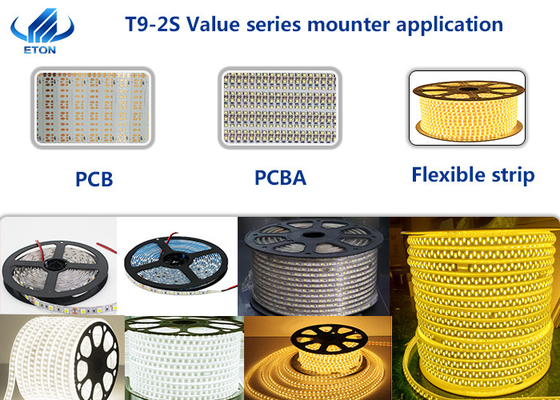

| Components range | LED 3014/3020/2835/5050 and resistor, capacitors, bridge rectifier etc. |
| No.of feeder station | Double side: 136PCS(single side: 68PCS) |
| No.of head | Double side: 136PCS(single side: 68PCS) |
| Feeding way | Intelligent electric feeder with double motor |
Company introduction
Shenzhen Eton Automation Equipment Co., Limited is a professional manufacturer focusing on pick and place machine and peripheral equipment.
We have 10-year experience in SMT machine, with unique understanding of SMT technology, we provide long-term professional services to domestic and foreign electronic company, leading SMT equipment technologies.
With good quality, competitive price, easy operation. Our products are very popular in SMT.
Up to now, our products are already sold in many countries such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil. We will continue to make great efforts to satisfy the customers' requirement.
Service
FAQ
Q: If machine have any problem after I receive it , how can I do?
A: During the warranty period, we will replace it for you free, or we can arrange a process engineer to repair it for free
Q:What are your advantages?
A: Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
what’s the minimum quantity of an order for your company?
1 set machine are welcomed to order, mixed orders are also welcomed.
