Product Details:
|
| Machine Name: | Smt Machine | No. Of Camera: | 6 Sets |
|---|---|---|---|
| Application: | Electrical Product | Mounting Speed: | 80000 CPH |
| High Light: | vision camera SMT Mounter machine,multimodular head SMT Mounter machine,80000 CPH smt machine |
||

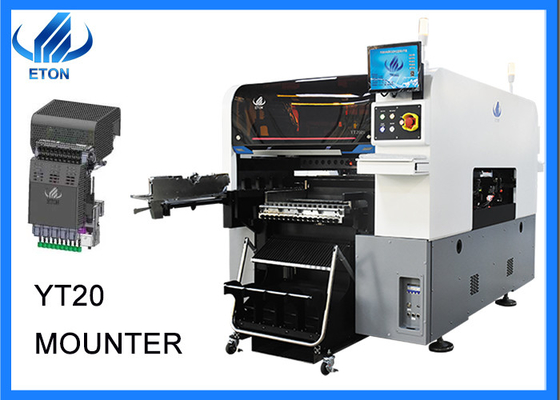

SMT Mounter machine for electrical product
YT20 Machine features
MACHINE HIGHLIGHTS
With high-speed multi modular head and brand new flight vision camera suitable for recognition performance, size up to 40*40mm, apply to BGA/CSP etc
FLEXIBLE PRODUCTION
Support Docking cart, smart double-head tape feeder and IC tray feeder,multi and flexible feeding way
HIGH RELIABILITY
Combine high accuracy Mark recognition camera with fixed flight vision camera, ensure placement accuracy.
TRANSMISSION SYSTEM STRUCTURE
Flexible PCB handling capabilities, double rail,both gantry can mount the same large PCB at the same time, realizing flexible production.
YT20 main parameters
| Model | YT20 |
| PCB Length Width |
Max size:500mm*450mm(single PCB) /500mm*300mm(double PCB) Min size: 50mm*50mm |
| PCB Thickness | 0.5-4.5mm |
| PCB Clamping | Cylinder clamping, track width adjustable |
| Rail | 2 Rail,2 gantries(Rail 1,4 are fixed rail) |
| No. of Camera | 6 sets (Digital camera) |
| Bottom vision camera recognition/Fill identification camera | |
| Vision alignment+Mark correction | |
| Mounting Precision | ±0.02mm |
| Mounting Height | ≤15mm |
| Mounting Speed | 80000CPH(Optimum speed) |
| Components range | Min 0201 ~40*40mm Tape reel packages and IC tray feeder etc. |
| No. of Feeder station | Double side docking cart slot 32PCS,tape reel packages:64PCS(single side docking cart slot 16PCS,tape reel packages:32PCS),freely switching between docking cart and IC tray feeder IC tray feeder:Option) |
| No.of Heads | Double side:20pcs(single side:10pcs) |
| Feeding way | Intelligent Double head Feeder |
Intelligent SMT Feeding system
Docking cart function
The function of docking cart is the support of the smd components, it is the basement of feeders. Feeder install on the docking cart with the electrical and feeding the smd component nonstop.
So with docking cart spare part, there could be achieve the quickly change line to produce different product, also could connect the tape reel more convinent. Short the changing line time.
IC Tray feeder function
IC Tray feeder is using for feeding IC(QFP/BGA/etc). YT20 could be using feeder feeding and IC tray feeder at the same time. Suitable for electrical board, high precision board manufacturing.
Feeder size and features
YT20 using ETON Honor series double head feeder, it is higher precision for feeding mini 0201 components, mini vibrating when running.
