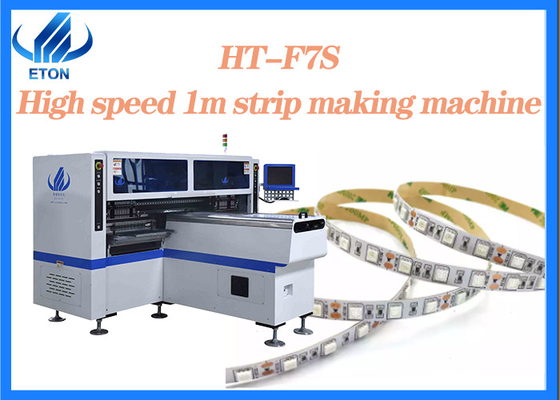

High speed mounter with 180K CPH for Long light 1M led strip
Techincal parameter
| Model |
HT-F7S |
| Dimension |
2700*2300*1550mm |
PCB Length Width |
Max:1200*330mm Min:100*100mm |
| Total Weight |
1700kg |
PCB Thickness |
0.5-5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
System |
Windows7 |
| Mounting Mode |
Group pick and group place |
Software |
R&D independently |
| Mounting Precision |
±0.02mm(Repeat precision) |
Mounting Speed |
150000~180000 CPH |
| Mounting Height |
≦5mm |
Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| No. of Camera |
5 sets ( Digital camera) |
Components Space |
0.5mm |
| Vision alignment, MARK correction |
Power |
380AC 50 HZ |
| Power Consumption |
6kw |
Conveyor Transmission |
Max Length :1200 mm |
| Operating Environment |
23℃±3℃ |
Transmission Speed |
>500mm/sec |
| Transmission Direction |
Single(left→ right or right→ left) |
Positioning way |
Optical |
| Transmission Mode |
Online drive |
Air supply |
0.4-0.6mpa (4-6kgf/cm²) 150N/min |
| Electrical control |
Independent research and development by ETON |
X,Y,Z Axis Drive way |
High-end magnetic linear motor+ Servo motor |
| Motion control card module 1 set |
Independent research and development by ETON |
No. of Feeders Station |
68 PCS |
| Feeding way |
Electric feeder with double motor |
No. of head |
34 PCS |
Features
1. Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
2. Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
3. Calibration automatically, high precision, available for RGB.
4. Exclusive patent technology: Group picking and group mount placing.
5. IPC9850 capacity: 200000-250000 CPH
