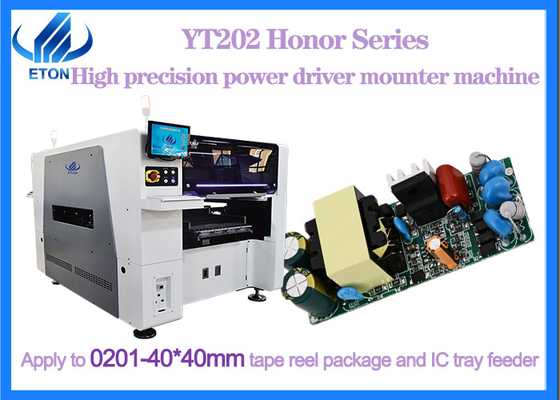

Double Head Feeder SMT Mounter SMD Pick And Place Machine For Power Driver 0201 Component

Double Head Feeder SMT Mounter SMD Pick And Place Machine For Power Driver 0201 Component
Double Head Feeder SMT Mounter SMD Pick And Place Machine For Power Driver 0201 Component

Large Image :  Double Head Feeder SMT Mounter SMD Pick And Place Machine For Power Driver 0201 Component

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE , ISO , CCC
Model Number: HT-202
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 51000-76500 per set
Packaging Details: Vacuum wooden packing
Delivery Time: 15-30 days
Payment Terms: T/T, L/C
Supply Ability: 50 Unit per mouth
Detailed Product Description
Model: HT-202 Name: Pick And Place Machine
Feeders Station: 64 PCS Heads: 32 PCS
Feeding Way: Intelligent Double Head Feeder Mounting Mode: Group Picking And Separately Placing, Separately Picking And Separately Placing
Mounting Speed: 90000 CPH Camera: 4 Sets
High Light:

Double Feeder SMT Mounter

,

Double Head SMT Mounter

,

90K CPH SMD Pick And Place Machine

SMT mounter for Power driver 0201 component pick and place machine



Technical Parameter of YT202



Model YT202
PCB size(L*W)

Max size:500 * 450mm (single)

500 * 300mm(double)

Min size:50mm*50mm

PCB thickness 0.5-4.5mm
PCB clamping Cylinder clamping, track width adjustable System Windows 7
Rail 2 Rail,2 gantries (Rail 1,4 are fixed rail) Software R&D independently
Production management MES system Customized(Option) No.of camera 4 sets (Digital camera)
Head flight vision recognition component
Off-line programming Available Vision alignment + Mark correction
Repeat precision ±0.02mm Mounting speed 90000CPH (Optimum speed)
Mounting height ≤20mm Components range Min 0201~10mm packages and IC etc.
Power 380AC 50HZ 6KW Transmission direction Standard: Single direction
Operating environment 23℃±3℃ Transmission mode Online drive
Air consumption 0.4-0.6mpa (4-6kgf/cm²) 150N/min Position mode Optical
Electrical control Independent research and development by ETON Motion control card module 1 set Independent research and development by ETON
No.of Heads Double side: 20 pcs (single side:10 pcs) X,Y,Z Axis drive way High-end magnetic linear motor +Servo motor
Feeding way Intelligent Double head Feeder No.of Feeder station

Double side: 32pcs, totaltape reel Packages 64pcs

(single) side: 16pcs, total tape reel Packages 32pcs)





SMT production line solution



ETON over 10 years experience in SMT machines, so we can provide our professional suggestion with a whole line solution.
Here are the semi-automatic SMT line solution layout:

Double Head Feeder SMT Mounter SMD Pick And Place Machine For Power Driver 0201 Component 0



Company profile



SHENZHEN ETON AUTOMATION EQUIPMENT CO.,LTD
Was founded in 2011, an excellent company for SMT mounter machine, obtaining 133 intellectual property technologies, and have a 50000 square meters industrial park in Jiangxi province. Named as “China high-tech enterprise” “Shenzhen TOP Brand” and “Industry Special Contribution Award” etc.

Double Head Feeder SMT Mounter SMD Pick And Place Machine For Power Driver 0201 Component 1



FAQ

How was your services?
A1. We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine for installation, maintenance and free up- grade.
Q2. Can you accept D/P or D/A as the payment term?
A2. For our regular payment terms, we usually use T/T.
Q3. Can you accept CFI as the quoted price?
A3. We only accept EXW as the quoted price.
Q4. Whether you have professional engineers for installation of the machine in India?
A4. Yes, we have professional engineers in India to provide considerable service to our clients.
Q5. How long can the delivery date take?
A5.If have stock the delivery date is about 20 days, others is according to the actual situation
