Product Details:
Payment & Shipping Terms:
|

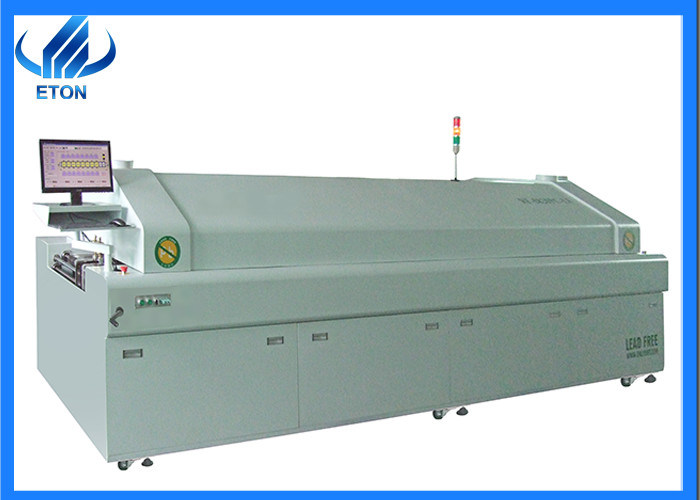

| Certification: | ISO,CE ISO CCC IPC,UL,ROHS CE ISO | Name: | Reflow Soldering Oven |
|---|---|---|---|
| Dimensions: | L4800*1350*1450MM | Net Weight: | 1600kg |
| PCB Size: | 50～650mm | Voltage: | 380V,380V/3 Phase |
| Usage: | PCB Soldering,Welding,automatic Conveying Convection Reflow Oven For SMT PCBA Production,reflow Soldering,led Soldering | Type: | Reflow Solder,SMT Reflow Oven Profiler Machine |
| Rated Duty Cycle: | 100% | Current: | 50/60Mhz |
| Warranty: | 1 Year | Temperature Range: | Room Temperature ~ 300 |
| Heating Zones: | 8 Zones | Application: | Pcb Soldering,SMT LED PCB Reflow Soldering,SMT LED PCB Welding,LED Light Makeing,SMT Line |
| High Light: | PLC Control smt reflow machine,PLC Control SMT Reflow Soldering Oven,650mm SMT Reflow Soldering Oven |
||
Reliable and smooth transmission system
1.Symmetrical double groove guide rail, high temperature resistance, no deformation, small heat absorption. Standard chain, network chain synchronous iso-speed parallel transportation, dual rail transportation system or central support system is optional.
2.Width adjustment adopts three stages of synchronous width adjustment structure, both ends are equipped with guide rail thermal expansion automatic extension device, effectively ensure that the guide rail parallel, prevent the drop of the plate, card plate, free of cleaning, easy to adjust.
3.Computer-controlled automatic refueling system, can automatically refueling according to the transportation speed and machine state, the flow can be adjusted.
4.Automatic width adjusting system adopts closed-loop PID control, can be automatically adjusted to the required width according to the computer input parameters, accuracy up to 0.2mm.
5.UPS power protection function, to ensure that PCB can output normally after sudden power failure, not damaged.
Stable and reliable electrical control system
1.The control system adopts PLC, the upper computer adopts famous brand computer, with genuine Windows 7 operating system and 19 inch LCD, which is stable and reliable.
2.Powerfully functional control software, with flexible process parameter control and temperature curve test functions, Chinese and English operation interface can be switched at any time.
3.Wogo terminal is used; All electrical components are imported brands, and all signal lines are shielded.
4.The temperature module is self-setting, the cold end is automatically compensated, and the temperature is controlled within ±1℃.
| Number of heating temperature zones | The top 8 small cycle heating area, the bottom 8 small cycle heating area. | |
| Heating mode | Plane winding type heating on both sides of the generator, pressurized air duct, point to point frequency conversion motor heat exchange, frequency conversion motor drive | |
| Length of heating zone | 3160MM | |
|
Number of cooling zones
|
2+1 (natural air cooling system) | |
| Length of cooling zone | 800MM | |
| Transmission belt width | 650MM | |
| Widening the range of chain guide rail | 50～250mm | |
| PCB size | 50～350mm | |
| PCB limits height | 25mm | |
| Transmission direction | L→R (R→L) is optional |
Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)
Upgrade the software will be free
Visit customer regularly and gather information.
