Product Details:
|
| Machine Name: | Pick And Place Machine/led Lighting Production Line | Model: | HT-F9 |
|---|---|---|---|
| Application: | Mounting Led Chip/resistor/capacitor | Warranty: | One Year |
| High Light: | 250000 CPH LED Strip Light Mounter,SMT Machine LED Strip Light Mounter,CCC LED SMT Machine |
||
Led strip lighting board smt machine

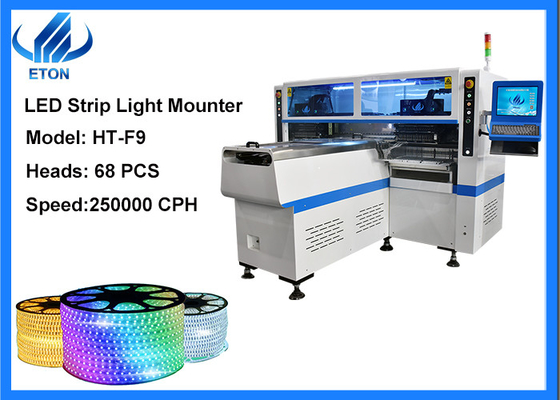

LED strip lighting board mounter machine
High capacity and good quality led strip manufacturign is all led factory require. ETON more than 11 years reach and develop new upgrade the newly led chip mounter machine—HT-F9.
F9 is the top series led strip light mounter machine, also it could mounting other smd components, like led resistor, Doide, IC, tape capacitor, etc.
Here are the mainly parameter of F9 Mounter machine
| Dimension:2700*2300*1550 mm |
| Weight: 1700 kg |
| Max PCB Length: 1200 mm |
| Mounting mode: group picking and group mounting |
| No.of camera: 5 sets digital camera |
| Theoretical speed:200000-250000 CPH |
| No.of heads:68 pcs |
| No.of feeders:68 pcs |
LED strip lighting board manufacturing process
The process of led strip light mainly include: SMT Line—Test—Assembly—Glue assembly(waterproof)
For SMT Line, mainly included Semiautomatic printer machine, pick and place machine, conveyor, reflow oven soldering machine
More process details, please contact us
LED strip lighting board machine function
Different machine function is different.
Printer machine : printing solder paste on the pcb
Conveyor machine: Buffer and transport pcb to the next machine
Pick and place machine: picking and mounting smd components on the pcb
Reflow oven machine: Soldering pcb and the components
Packing and shipping
Inspection-free fumigation wooden box and price included the package and loading , exw payment terms.
FAQ
1. Do you have client in Tunisia?
A: Yes, we have client in Tunisia, and other many countries.
2.Could you please sent us the machine catalog?
A:Yes, please contact with us directly for more machine details.
3. how long is the lead time?
A:Machine in stock could arrange withine 7 days, Machine Out of stock will need around 20 working days
