Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Model: | HT-E8S |
|---|---|---|---|
| Brand: | ETON | Heads: | 12 PCS |
| Feeders Station: | 48 PCS | Feeding Way: | Electric Feeder With Double Motor |
| Mounting Speed: | 45000 CPH | Mounting Precision: | ±0.02 Mm |
| High Light: | DOB bulbs SMT manufacturing machine,spot light SMT manufacturing machine,DOB bulbs surface mount machine |
||

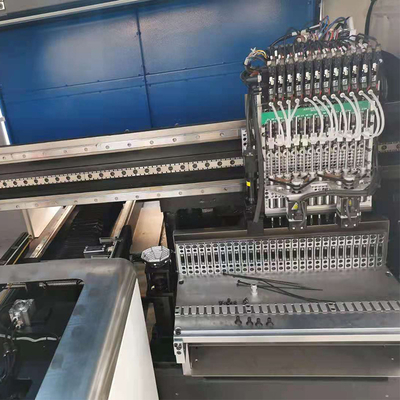

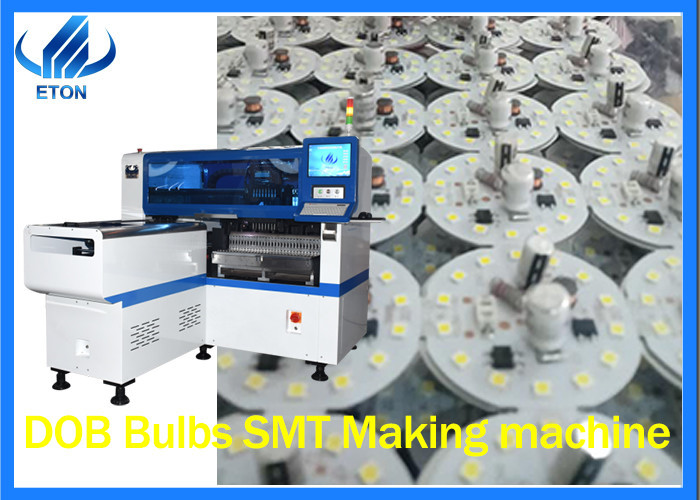

DOB bulbs and spot light smt making machine with 45000CPH and 12heads
Technical parameter
| Model | HT-E8S-1200 | ||
| Dimension | Total Weight | PCB Length Width | PCB Thickness |
| 2550*1650*1550mm | 1700kg | Max:1200*500mm Min:100*100mm | 0.5-5mm |
| PCB Clamping | Mounting Mode | System | |
| Adjustable pressure pneumatic |
Group pick and separate place separate pick and separate place |
Windows7 | |
| Software | No. of Camera | ||
| R&D independently | 2 sets of imported camera; Vision for the flight identification, MARK correction | ||
| Mounting Precision | Mounting Height | Mounting Speed | Components |
| ±0.04mm | <15mm (Automatic Changing) | 45000 CPH | LED, capacitors, resistors, IC, shaped components, etc. |
| Components Space | No. of nozzles | No. of Feeders Station | Air supply |
| 0.2mm | 12 PCS | 28 PCS | 0.4-0.6mpa (4-6kgf/cm2)150N/min |
| Electrical control | Motion control card module 1 set | X,Y,Z Axis Drive way | Feeding way |
| Independent research and development by ETON | High-end magnetic linear motor + Servo motor | Electric feeder with double motor | |
SMT production line solution
ETON over 10 years experience in SMT machines, so we can provide our professional suggestion with a whole line solution.
Here are the semi-automatic SMT line solution layout:
Applications and components
E8S-1200 is a multi-functional SMT pick and place machine, Apply to all kinds of products
Also mount to components min 0402 chips, capacitors, resistors, IC, shaped components, etc.
FAQ
1. How was your services?
We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine for installation, maintenance and free up- grade.
2. Can you accept D/P or D/A as the payment term?
For our regular payment terms, we usually use T/T.
3. Can you accept CFI as the quoted price?
We only accept EXW as the quoted price.
4. how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
Different client has different requirements on spare parts, it is not fair to clients to add in equivalent price for spare parts, so we don’t add the spare parts on price. And price is only for machine
