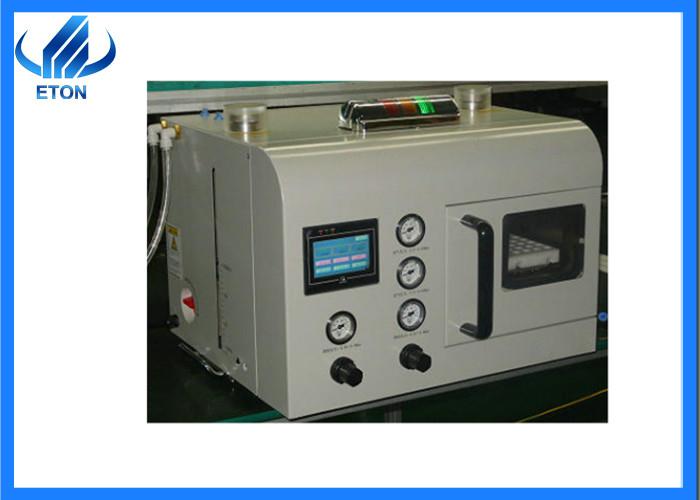

High efficiency automatic drying PLC control SMT nozzle cleaner
Features:
- No cleaning solution required
- Low noise
- High efficiency and energy saving
- 24 suction nozzles cleaned at a time
| pressure |
pressure |
compressed air |
| Intake pressure setting |
0.5～0.55MPa |
| Injection pressure setting |
0.35～0.38MPa |
| Nozzle injection pressure |
≤0.4MPa |
| Tube |
Intake manifold |
￠12tube |
| Drain tank water pipe |
￠8tube |
| Cleaning liquid |
Cleaning liquid |
Industrial deionized water |
| Liquid consumption |
≤300cc/h(5cc/min) |
| Capacity of water storage tank |
1200cc |
| Power Supply |
Power Supply |
AC220～240V |
| Plug |
3-Pin |
| Consumption of electricity |
≤0.1Kw |
| Environment |
Working environment temperature |
-5℃～ (But not frozen.) |
| Liquid temperature |
0℃～ (But not frozen.) |
| Working environment humidity |
10～60%RH |
| Environmental humidity of equipment |
10～60%RH |
| dust |
0.1mg/m³(No conductive dust) |
| Corrosive gas |
Not allow |
| Others |
Outline size |
655(L) x 560(W) x 475(H) |
| Weight |
(Including cleaning fluid 2000cc)
|
Principle and configuration features of cleaning machine:
- The suction nozzle cleaning machine adopts a unique mechanical design. It uses fluid mechanics to break the water and produce a very small high-pressure water mist.
- It forms a powerful kinetic energy jet on the suction nozzle at the sonic speed (v = 360m / s), forms a continuous energy field above the suction nozzle to be cleaned, and thoroughly smashes the dirt on the surface and inside (since the suction nozzle is placed independently, it will not damage the suction nozzle during the cleaning process). After cleaning, it will not damage the suction nozzle During the process, the cleaning solution (deionized water or distilled water) is automatically discharged directly.
- High quality touch screen human-machine interface, PLC control;
- The pneumatic part uses imported SMC pneumatic components from Japan, which ensures stable and efficient working efficiency;
- The key parts of the whole machine are all made of 304 stainless steel imported from Japan, and the special parts are made of 316 stainless steel imported from Japan, so as to ensure that the whole machine will not rust due to the use of water, thus affecting the service life of the equipment and other safety hazards.
Functional features:
- Put 24 suction nozzles in one time, please wash a large amount;
- Thoroughly solve the dirt and impurities which are difficult to be cleaned by ultrasonic;
- It will not be unclean due to the smaller and smaller diameter of suction nozzle;
- Cleaning more thoroughly and directly extend the life of suction nozzle;
- No damage to the surface coating and reflection plate of suction nozzle;
- Clean with deionized water or distilled water;
- Automatic continuous cleaning, automatic drying;
- Simple and convenient operation;
- Intelligent water storage inspection function added
- Suitable for all kinds of mounter.
Packages
Our package step is follow the blowing:
STEP 1: Film packaging to prevent the dust and water;
STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;
STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;
STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.
Delivery: by sea, air, land transport.
Service
Free Installation: provide free installation machine to ensure smooth production
Free Warranty:1 year warranty factory service, free replacement of space parts
Free Training: Professional training of operating and maintenance
Free Technical Support: 7*24 technical online support
Free Software Upgrade: Offer free software upgrade whole lifetime
High service efficiency, there is service office in India. Besides India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.
Chinese engineers provide online services. If necessary, Chinese engineers will come to your factory for free install and training.
Quality First, Client-oriented, Continuous Improvement.
24 hours online for you to answer.
