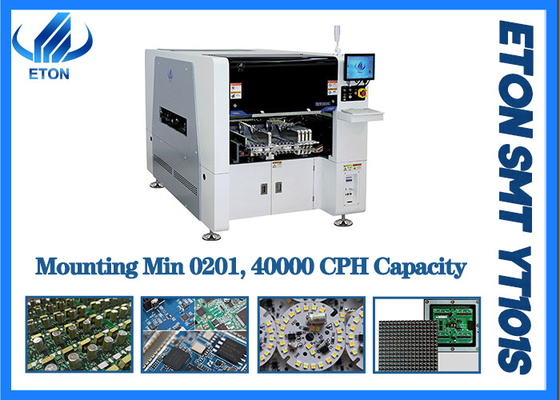

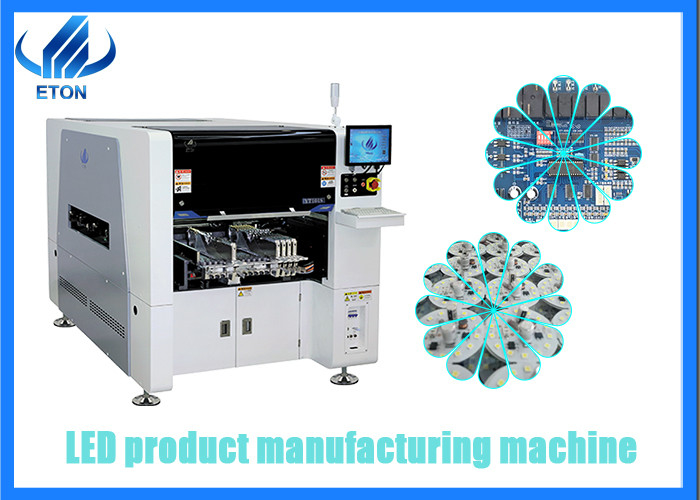

0201 Component LED Manufacturing Machine 40000 CPH For High Precision PCB Board

Large Image : 0201 Component LED Manufacturing Machine 40000 CPH For High Precision PCB Board

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	CE , ISO , CCC
Model Number:	YT101S
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD 51000-76500 per set
Packaging Details:	vacuum wooden packing
Delivery Time:	15-30 days
Payment Terms:	L/C, T/T
Supply Ability:	50 Unit per mouth

Contact Now

Detailed Product Description

Name:	Pick And Place Machine	Model:	YT101S
Brand:	ETON	Feeder Station:	32 PCS
Heads:	10 PCS	Mounting Speed:	40000 CPH
Highlight:	0201 component LED Manufacturing machine , 40000 CPH LED Manufacturing machine , SMT Mounter High Precision

0201 component Manufacuturing machine for high precision PCB board with 40000CPH capacity

Features

1	10 heads with single module mounting head
2	mounting speed is increased by 25% compared with the traditional machine-reaching 40000 CPH.
3	min components 0201, max components 40*40mm tape reel package;
4	2 sets of camera, brand new flight vision camera,
5	32 feeder stations with Intelligent double head feeder
6	Software R&D Independently, free upgrade whole life time

The Parameter

PCB size: 500350mm--- 5050mm
Mounting mode: seperate pick and seperate mount & group pick and seperate mount
Mounting speed		40000 CPH(optimum speed)
PCB thickness	0.5-4.5mm	Warranty of core components	1 Year
PCB clamping	Cylinder clamping, track width adjustable	Power	380 AC 50HZ
software	R&D independently	Operation environment	23±3℃
Production management MES system	Customized(option)	Feeding way	Intelligent double head feeder
Off-line programming	available	Electrical control	Independent research and develop by ETON
No. Of camera	2 set (digital camera)	Camera advantages	Vision alignment+ mark correction

Production line

Components and applications

Exhibition show

Every year, we go abroad for exhibitions, such as India, Egypt, Türkiye, Pakistan, Iran, Vietnam, etc.

FAQ

Question	Answer
What’s the terms of payment? What about the trade term?	T/T is OK. You can choose FOB Shenzhen
Choose which mode of transportation?	Our modes of transportation are flexible, including water, land and air transportation
Is this machine difficult to operate?	No, For our previous clients, at most 5 days is enough to learn to operate the machines.
Is your software interface in English?	English interface and Chinese interface are both available.
Do you have oversea after sale service?	We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly
