Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | China | Name: | YT-101S |
|---|---|---|---|
| Mounting Height: | <36mm | Dimension: | 3150*2250*1650mm |
| Total Weight: | 2000kg | Power: | 380AC 50HZ |
| Power Consumption: | 8KW | Mounting Speed: | 80000CPH |
| Warranty: | 1 Year | Visual Camera: | 2 Sets Of Imported Camera |
| Drive Way: | High-end Magnetic Linear Motor +servo Motor | ||
| High Light: | LED Mounting Machine 80000CPH,magnetic motor LED Mounting Machine,8KW LED Lamp Manufacturing Machine |
||
Features of SMT pick and place machine
YT-101 pick and place machine with high speed and intellight ,ultra performance.
This pick and place machine with high-speed multi modular head,Non replace modular head,Apply 0201~40*40mm tape reel packge.The speed reach 40000CPH.

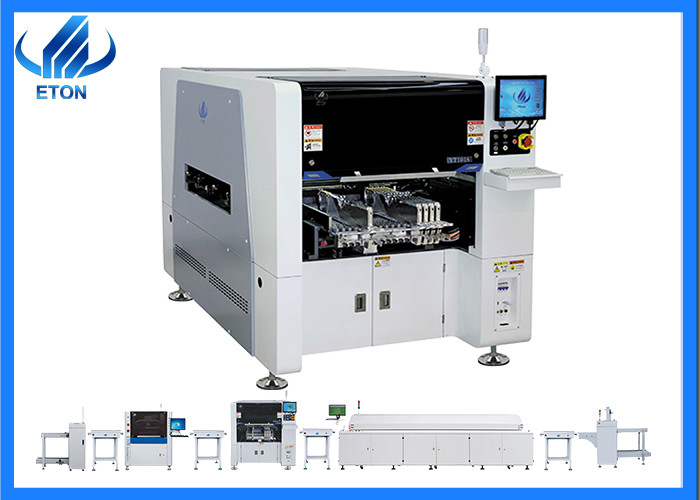

Pictures of pick and place machine
SMT PRODUCTION LINE SOLUTION
| SMT production process | ||
| process | Step. | details |
| Step 1 | Solder paste Printing | Operate the stencil printer to print the solder paste onto the PCB |
| Step 2 | Mounting Part | The PCB board that has been brushed with solder paste will be sent to the pick and place machine for automatic mounting, and the pick and place machine will automatically pick components and place on PCB |
| Step 3 | Reflow Soldering | The PCB board be mounted with components is sent to reflow oven,reflow oven will heat and welding the components with solder paste on PCB. |
| Step 4 | Testing | Check whether the PCBA is misaligned or shift. |
we will send our engineer to your factory to install machine and training freely.
We have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
Pre-Consultation: provides professional SMT solutions for the full line.
■ Factory Warranty: One-year warranty factory service.
■ Installation: On-site installation and commissioning, to ensure smooth production.
■ Software Upgrade: offers lifetime free software upgrades for all products
FAQ
1.What about the shipping methods?
Our mode of transportation is by sea, air and road.
2.What’s your delivery time?
Usually 30 days after deposit, if we have inventory, the time can be brought forward.
3.How can you make sure we will receive the machine with high quality?
Our team will inspect each batch of machine before delivery, we have certificates of CE,Quality management certificate.
4.How is your service?
If you buy our machine,we will send our engineer to your factory to install machine and training freely.
5.Who is your client?
We have exported machine to different countries,such as India,Egypt,Korea,Turkey,Brazil etc.
Such as FSL,ETI,KONKA,OPPLE,MLS are our client,In india such as RK,Surya,skyquad are our client.
6. Is your software interface in English?
English interface and Chinese interface are both available.
