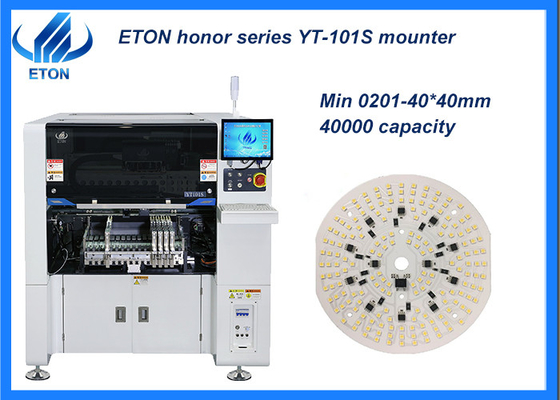

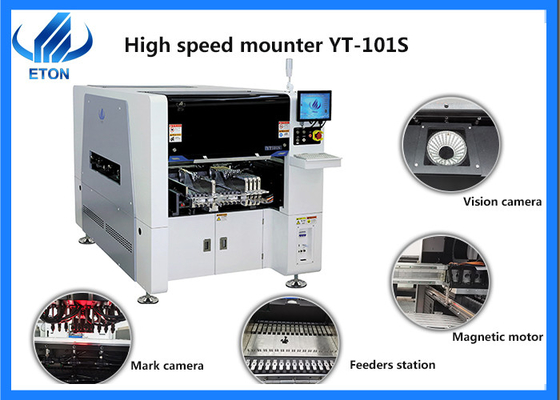

NEW designed PCB making mounter Min 0201-40*40mm SMT pick and place machine
Description
- Adopt High speed multi modular head, apply to ultra small chip 0201~40*40 mm large chip, wide component range;
- Brand new flight vision camera: Improve recognition performance, size up to 40*40 mm, apply to BGA or CSP etc;
- Vacuum sensing device: Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product;
- Ultra high speed capability: Adopt high-end magnetic linear motor, servo system and multi function modular head, the capacity increased by 25% compared with traditional machine, optimum speed reach 40000 CPH;
- Brand new self-developed high precision placement head;
- High-speed precision head flight vision camera capture the image of placement accordingly, improve placement performance;
- The placement head adopt independent vacuum detection, improve placement performance;
- Off-line programming, save time of changeover cycle;
- Software AI intelligent learning function and automatic optimization function.
Machine main parameter
| Model |
YT-101S |
| PCB size |
Max size: 500*350 mm
Min size: 50*50 mm
|
| PCB thickness |
0.5-4.5 mm |
| PCB clamping |
Cylinder clamping, track width adjustable |
| Software |
R&D independently |
| Production management MES system |
Customized (Option) |
| Off-line programming |
Available |
| Camera |
Head flight vision recognition component
Vision alignment + Mark correction
|
| Repeat precision |
±0.02 mm |
| Mounting height |
≦15 mm |
| Optimal speed |
40000 CPH |
| Component range |
Min 0201~40*40 mm packages and IC etc. |
| Position mode |
Optical |
| No.of heads |
10 pcs |
| Feeding way |
Intelligent double head feeder |
Our advantage
ETON is the pioneer of SMT machine field in China which have more than 11 years experiences. And owned CCC, SIRA, CE certificates with 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies.
Oversea market:The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
