Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Application: | SMT Production Line |
---|---|---|---|
Condition: | Brand-new | Mounting Speed: | 40000 CPH |
Feeders: | 16 Pcs | Pcb Thickness: | 0.5-4.5 Mm |
Positioning Accuracy: | ±0.02 Mm | PCB Size: | Max Size: 500*350 Mm Min Size: 50*50 Mm |

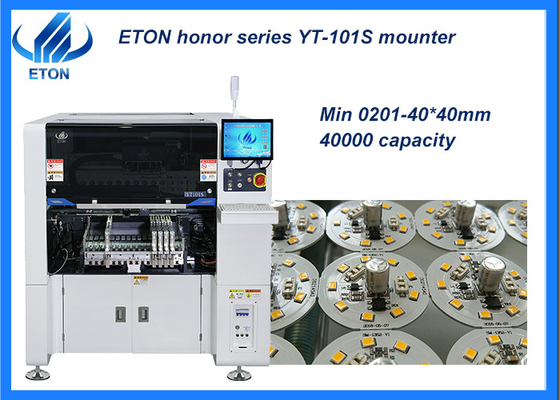

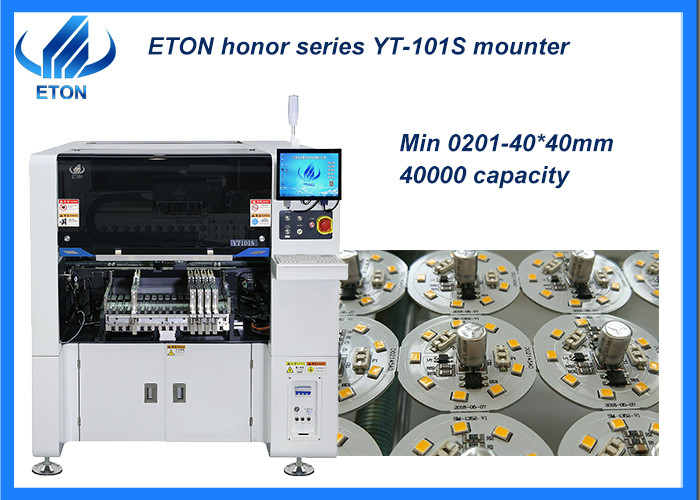

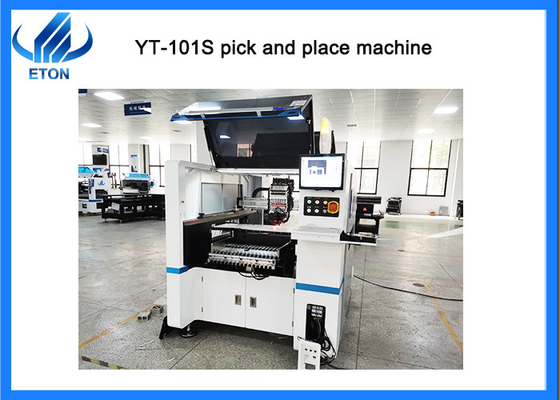

LED lighting 0201 chip high precision easy operate SMT pick and place machine
Machine main features
Machine main parameter
Model | YT-101S |
PCB size |
Max size: 500*350 mm Min size: 50*50 mm |
PCB thickness | 0.5-4.5 mm |
PCB clamping | Cylinder clamping, track width adjustable |
Software | R&D independently |
Production management MES system | Customized (Option) |
Off-line programming | Available |
Camera |
Head flight vision recognition component Vision alignment + Mark correction |
Repeat precision | ±0.02 mm |
Mounting height | ≦15 mm |
Optimal speed | 40000 CPH |
Component range | Min 0201~40*40 mm packages and IC etc. |
Position mode | Optical |
No.of heads | 10 pcs |
Feeding way | Intelligent double head feeder |
Our advantage
We can provide SMT line solution for you!
Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc
1.Light Factory for :led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc.
2.Provide Overseas engineers for Free installation and free training.
3.TOP brand of China SMT machine manufacturer,500 employees for ETON
Packages
Keep a good quality of the machine when during transportation till the destination of our clients which is an imperative aspect for one of a suitable service for our clients to buy our machine, so making sure of a qualified and sturdy packing is a key mission for us, here are the specified steps for your reference:
Step 1: Packing in film package to prevent dust and water to the machine
Step 2: Packing in foam cotton to protect the outside of the machine
Step 3: Packing in vacuum package to keep dry of the machine during transportation
Step 4: Transportation by truck to specified port
SMT Line solution
The SMT production line has two schemes: semi-automatic and fully automatic line. If you are just starting to do it, I suggest you do a semi-automatic production line, which can effectively save your cost.
The equipment required for the semi-automatic production line includes:
FAQ
Q. Does your machines have quality certificates?
A. We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as "Well-know brand" and many technology patents, and have rich experience (more than 11 years) in LED light production line program.
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors,
that related to the number of the components, the time to send PCB board
and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.
Q. Can you accept CIF as the quoted price?
A. We only accept EXW as the quoted price for it is convenient and lower cost for both sides.
