Product Details:
Payment & Shipping Terms:
|
Power Supply: | 380AC 50HZ | Weight: | 1700KG |
---|---|---|---|
Warranty: | 1 Year | Condition: | Brand-new |
Mounting Speed: | 45000 CPH | Feeders: | 16 Pcs |
Pcb Thickness: | 0.5-4.5 Mm | Positioning Accuracy: | ±0.02 Mm |

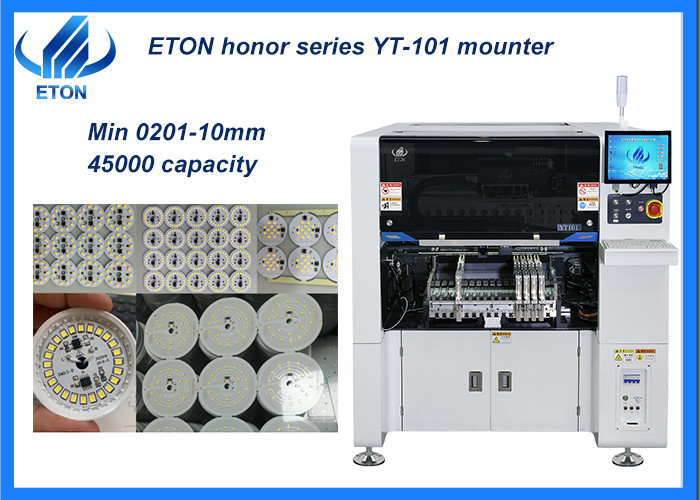

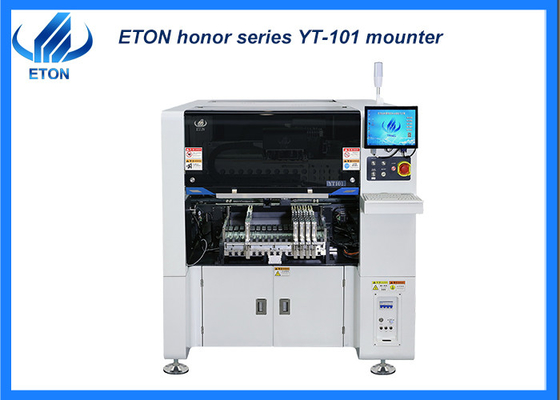

High precision 0201 CE surface mounted technology pick and place machine
Description
Machine main parameter
Model | YT-101 |
PCB size |
Max size: 500*350 mm Min size: 50*50 mm |
PCB thickness | 0.5-4.5 mm |
PCB clamping | Cylinder clamping, track width adjustable |
Software | R&D independently |
Production management MES system | Customized (Option) |
Off-line programming | Available |
Camera |
Head flight vision recognition component Vision alignment + Mark correction |
Repeat precision | ±0.02 mm |
Mounting height | ≦15 mm |
Optimal speed | 45000 CPH |
Position mode | Optical |
Component range | Min 0201~10mm packages and IC etc. |
Position mode | Optical |
No.of heads | 10 pcs |
X,Y,Z Axis drive way | High-end magnetic linear motor + Servo motor |
Feeding way | Intelligent double head feeder |
SMT Line solution
The SMT production line has two schemes: semi-automatic and fully automatic line. If you are just starting to do it, I suggest you do a semi-automatic production line, which can effectively save your cost.
The equipment required for the semi-automatic production line includes:
Packages
Our package step is follow the blowing:
STEP 1: Film packaging to prevent the dust and water;
STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;
STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;
STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.
Delivery: by sea, air, land transport.
Service
High service efficiency, there is service office in India. Besides India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.
Chinese engineers provide online services. If necessary, Chinese engineers will come to your factory for free install and training.
Quality First, Client-oriented, Continuous Improvement.
24 hours online for you to answer.
Market
As for the 11 years trade with more than 30 countries with our SMT high speed pick and place machine, we have come into business with many partners:
Related machine
FAQ
Q. Can you accept CIF as the quoted price?
A. We usually accept EXW as the quoted price.
Q.Whether you have professional engineers for installation of the machine in India?
A. Yes, we have professional engineers in India with local office site in Delhi and Dammam to provide considerable service to our clients.
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs
