Product Details:
Payment & Shipping Terms:
|
Feeders: | 16 Pcs | Pcb Thickness: | 0.5-4.5 Mm |
---|---|---|---|
Speed: | 45000 Capacity | Warranty: | 1 Year |
Power Supply: | 380AC 50HZ | Condition: | Brand-new |
Weight: | 1700KG | Positioning Accuracy: | ±0.02 Mm |

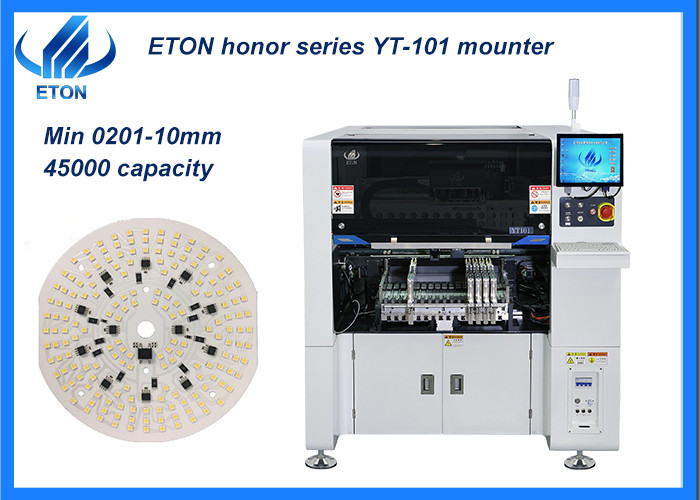

LED DOB PCB making 45000 capacity SMT pick and place machine
Description
Machine main parameter

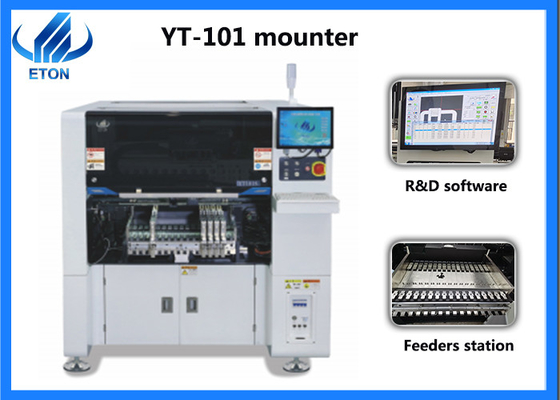

Model | YT-101 |
PCB size |
Max size: 500*350 mm Min size: 50*50 mm |
PCB thickness | 0.5-4.5 mm |
PCB clamping | Cylinder clamping, track width adjustable |
Software | R&D independently |
Production management MES system | Customized (Option) |
Off-line programming | Available |
Camera |
Head flight vision recognition component Vision alignment + Mark correction |
Repeat precision | ±0.02 mm |
Mounting height | ≦15 mm |
Optimal speed | 45000 CPH |
Position mode | Optical |
Component range | Min 0201~10mm packages and IC etc. |
Position mode | Optical |
No.of heads | 10 pcs |
X,Y,Z Axis drive way | High-end magnetic linear motor + Servo motor |
Feeding way | Intelligent double head feeder |
Machine application
Packages
Keep a good quality of the machine when during transportation till the destination of our clients which is an imperative aspect for one of a suitable service for our clients to buy our machine, so making sure of a qualified and sturdy packing is a key mission for us, here are the specified steps for your reference:
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
FAQ
Q. If I need a perfect line of the machine can you supply?
A. Yes, for the requirements of a whole line for production, we have professional equipment to make up for a perfect production line for your products, on account of we have a 50000 square meters of industrial park and excellent R&D staff, which can produce 50 sets of machine per month.
Q. How was your services?
A. We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine for installation, maintenance and free up- grade.
Q. Can you accept D/P or D/A as the payment term?
A. For our regular payment terms, we usually use T/T.
Q. How can I contact you to buy the goods in an efficient way?
A. Making enquiry of the products you want on the trading platform of Alibaba, Tradelink, foreign trade Express, or contact us with the social software as Whatsapp, Skype, etc.
