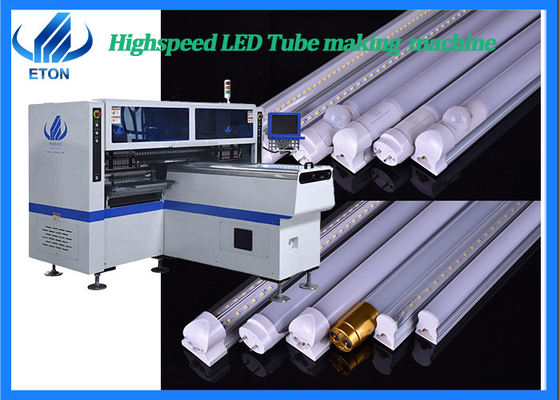

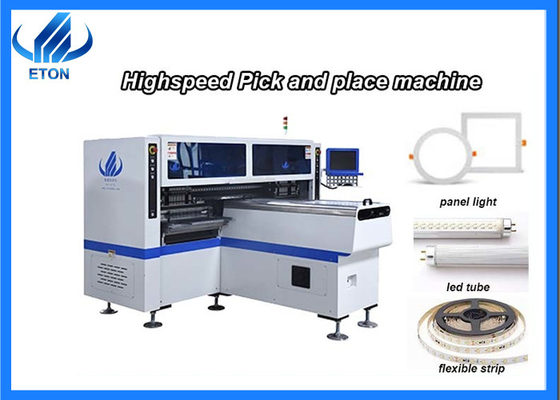

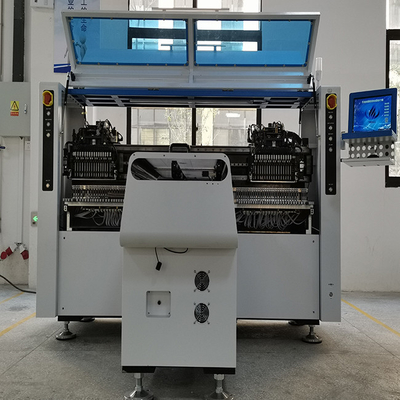

1.2m LED Tube Light Making Machine 68 Feeders LED Light Production Line

1.2m LED Tube Light Making Machine 68 Feeders LED Light Production Line
1.2m LED Tube Light Making Machine 68 Feeders LED Light Production Line

Large Image :  1.2m LED Tube Light Making Machine 68 Feeders LED Light Production Line

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE, CCC, SIRA
Model Number: HT-F7S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum adsorption, wooden packing
Delivery Time: 30 days after receive the down-payment
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Condition: New Local Service: India, Egypt, Vietnam
Warranty: 1 Year Mounting Speed: 150000-180000 CPH
Machinery Test Report: Provided Brand: ETON
Model Number: HT-F7S Name: SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter
High Light:

LED Tube Light Making Machine

,

LED Tube LED Light Production Line

,

68 Feeders LED Light Production Line

1.2m LED tube light making mounter 68 feeders machine in LED light Production Line



LED module mounter machine introduction

LED module mounter machine also called pick and place machine/ placement machine/SMT machine. It is one of SMT Line. The function of mounter is picking components and then mounting on the PCB. It is automatically SMT Machine.

In SMT production line, there are different machines for different module with different functions. Included Loader, Conveyor, Stencil printer, pick and place, reflow oven, un-loader, etc.



Parameter

HT-F7S Technical Parameter
Length*Width*Height 2700*2450*1530mm
PCB Length width

MAX:1200*330mm

MIN:50*50mm



PCB Thickness 0.5~5mm
Mounting Mode Group to take and group to mount
No. of Camera 5 sets of imported camera
Vision System Vision alignment, Mark correction
Mounting Precision ±0.02mm
Mounting Height 15±2mm
Mounting Speed 150000~180000CPH
Components LED30140/3528/5050/3030/5630/5730/4014/2835 and resistor etc.
Components Speed 0.2mm

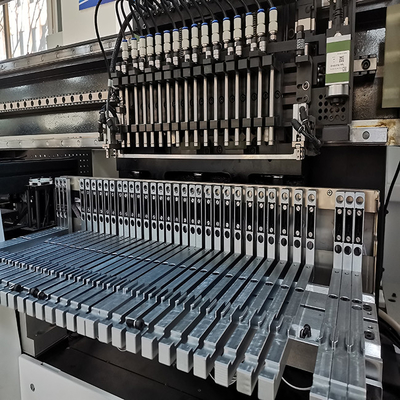

Feeders Station 68PCS
No. of Nozzles 34PCS
Electrical control Independent research and development by ETON
Motion control card module 1 set Independent research and development by ETON
XY Axis Drive Way High-end magnetic linear motor and servo motor
Feeding way Electric feeder with double motor



























































SMT production line

SMT production equipment LED pick and place machine HT-F7S for assembly PCB mounter 0

ETON over 15 years experience in SMT machines, so we are very professional to provide whole line solution.
Automatic stencil printer machine with pick and place machine, loader, conveyor, unloader, reflow oven, glue dispenser, stacking loader and Vibration plate and so on can be provided.



Company introduction

(1)Shenzhen ETON automation equipment CO.,Ltd. was founded in 2011 and Jiangxi Intelligent industrial Park was used in 2020. So far, ETON has more than 11 years experience.

(2)ETON is the leading manufacturer of global photoelectric high speed pick and place machine and enjoys a good reputation around the world.

(3)The produces have exported more than 20 countries and regions, including Egypt, India,Turkey, Russia, Brazil, South Africa and so on.

(4)ETON has five level management policy:sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

(5)ETON also keep “no worries” after-sales service, and the products are supported to personal customization, specialist sale always track the production and transportation of equipment.

1.2m LED Tube Light Making Machine 68 Feeders LED Light Production Line 1



FAQ

1. How many machines sell in India ?

A: So far, we have hundreds machine sell in India.



2. I don’t know how to operate machine and will it required experience?

A: Our machine is very easy for operate, usually several days for training is enough and not required experience. ETON engineer will teach online now and will visit your factory after corona.



3. I want to produce led bulb, do you have machine for that?

A: Yes, we could provide the whole SMT Machine for led bulb.



4. I want to produce 100 meters led strip light roll to roll, is F7S suitable ?

A: F7S suitable for one meter and half meter strip light, not suitable for 100 meters. But we have two modules suitable for Roll to roll strip light, if you want to know more details about these two modules, please contact me as soon as possible. Contact David Whatsapp and wechat: +8613827425982



5 What kind of machine will provide besides pick and place machine ?

A: ETON as the largest manufacturer of SMT machine in China, we provide whole SMT line, such as reflow oven, stencil printer, conveyor, pick and place machine, Loader, Unloader, etc.



6 Do you have middle speed pick and place machine for led tube/street light/display, lens/panel/led bulb/dob/etc

A: Yes! We have different module pick and place machine, for middle speed mounter, we have two kinds of machine, one is RT-1, it is 10 heads with 40000 cph, another is E8S with 45000 theoretical speed.
