High-speed multi modular head + fixer flight vision camera makes a wider range of application components, such as:LED Chips;
Resistors;
Capacitors;
Terminals;
IC;
ETC...
|
Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0201 |
|---|---|---|---|
| Application: | SMD Production Line | Condition: | New |
| Mounting Speed: | 40000 CPH | Machinery Test Report: | Provided |
| Local Service: | India, Egypt, Vietnam | ||
| High Light: | 4KW LED Bulb Making Machine,Components 0201 LED Bulb Making Machine,Min 0201 Pick And Place Machine |
||

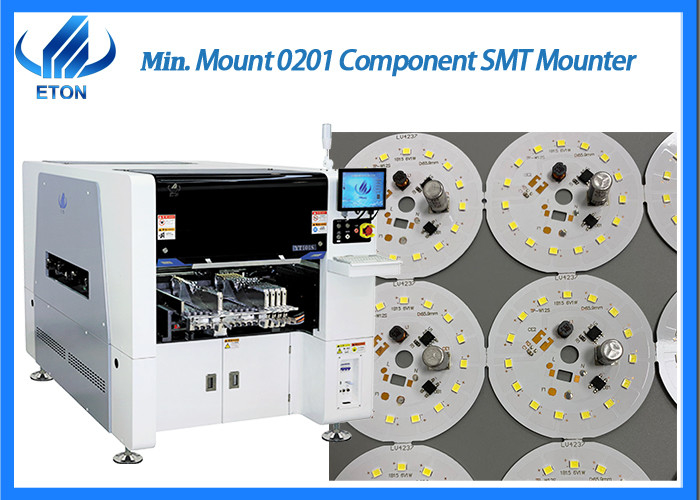

LED Bulb making mounter min components 0201 with overseas service pick and place machine
Machine features
1. YT 101S is one of the newly launched YT series products from ETON.
1. High-speed Multi Modular Head (non replace modular head).Apply to 0201~40*40mm tape reel package.
2. Improve recognition performance, size up to 40*40mm, apply to BGA or CSP etc.
3. PCB Max size:500*350mm.
4. 10 heads, the optimum speed reached 40000cph.
5. Feeding way: Intelligent double head feeder.
Machine parameter
| Model | YT101S |

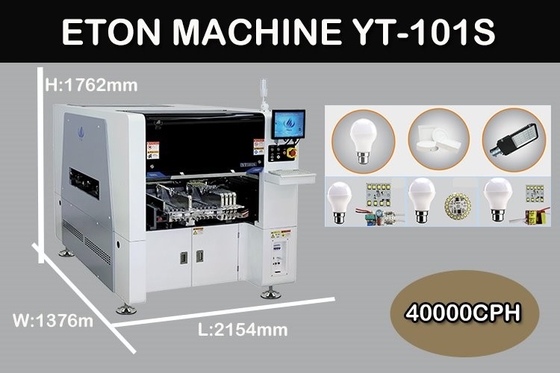

| Dimension(L*W*H) | 2154*1376*1762mm |
| Weight | 1700kg |
| PCB length width | Max size:500*350mm |
| PCB thickness | 0.5~4.5mm |
| Repeat precision | ±0.02mm |
| Mounting height | ≤20mm |
| No.of camera | 2PCS |
| Vision alignment, Mark correction | |
| Components range | Min 0201~40*40MM Packages and IC etc |
| Rail | Rail 1 is fixed |
| Power consumption | 380AC50HZ 4KW |
| Optimum Mounting speed | 40000CPH |
| No. Of feeders station | 16 PCS ,tape reel packages 32 PCS |
| No. Of head | 10 PCS |
| Feeding way | Intelligent double head feeder. |

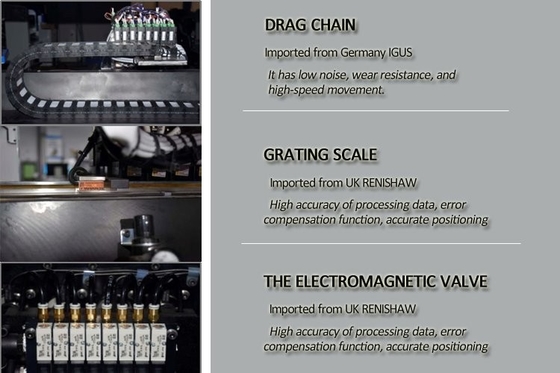

Main Parts
The features of ETON LED chip mounter
1. ETON is long history and good experience at led chip mounter machine, especially the high speed mounter and super high speed mounter. We got more than 90% big led factory market in China. Many big Chinese brand are our clients, such as the Yankon, MLS, Foshan Lighting, NVC, etc.
2. ETON Machine is cheaper compared with same capacity. We have different speed module, like the 40000 cph, 80000 cph, 180000 cph, 250000 cph and 500000cph. With more choose if you cooperation with us.
3.ETON machine is multifunctional and intelligent. Suitable for all kinds of led chip and electrical components, such as the IC, Resistor, Capacitor, Terminal , Shaped components, etc
4. ETON machine could be customized according to your product design with strong R&D power.
