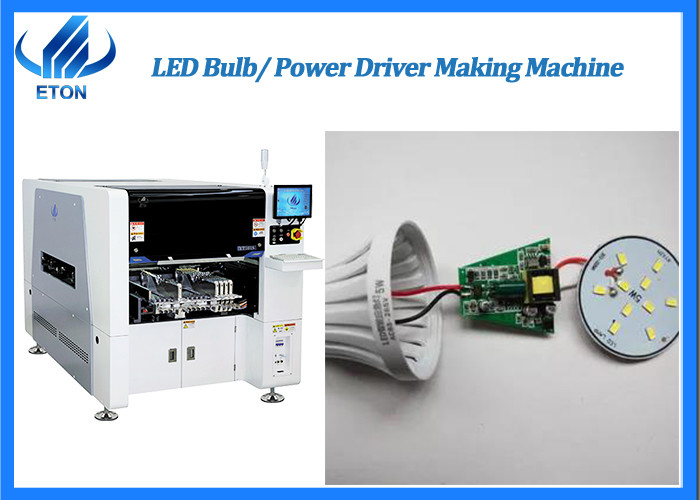

LED Bulb/Power Driver SMT Mounter 40000CPH For SMD Components

LED Bulb making mounter min components 0201 with overseas service pick and place machine

Machines Introduction
* Suitable for various types of drivers, power supplies, circuit boards, lenses,
* linearbulbs, home appliance control panels, etc.
* Uses newest high magnetic linear motor, the speed and accuracy is better than normal machines.
* Can meet 0201 components

Machine parameter

Component range

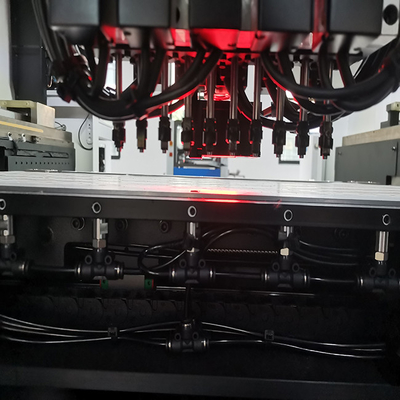

High-speed multi modular head + fixer flight vision camera makes a wider range of application components, such as:LED Chips;
Resistors;
Capacitors;
Terminals;
IC;
ETC...

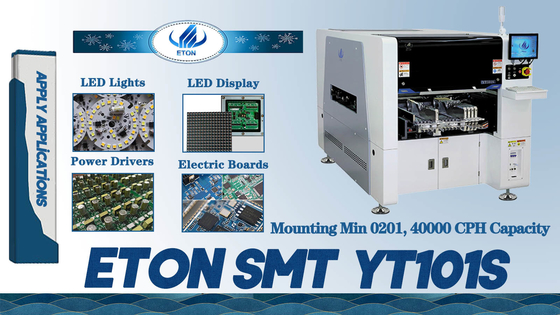

Wide range of applications

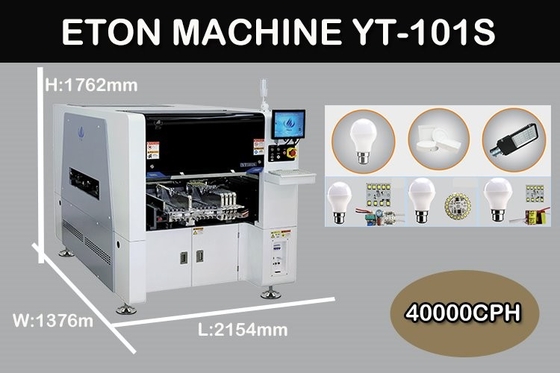

YT101S can produce:LED Bulb;
LED Driver;
Ceiling light;
Down light;
Flood light;
Street light;
LED Display;
LED tube;
etc...

Main Parts



Automatic stencil printer

Modern solder paste printing machines are generally composed of plates, tin paste, embossing, and transmission boards. Its working principle is: firstly, the circuit board to be printed is fixed on the printing positioning table, and then the solder paste or the red glue is printed on the corresponding pad through the steel mesh by the left and right scrapers of the printing machine, and the PCB which is uniformly printed is passed through. The transfer station is input to the placement machine for automatic placement.

Reflow oven

Reflow oven is a machine for heating the PCB board in SMT line, usually there are 8 zones, 10 zones and 12 zones reflow oven. SMT line the most popular type is hot air reflow oven

Pick and place machine

SMT Pick and place machine used for mounting different kinds of component on PCB baord. The popular model for pick and place is universal one.Usually pick and place machine is the next machine of solder paste printer.

The features of ETON LED chip mounter

1. ETON is long history and good experience at led chip mounter machine, especially the high speed mounter and super high speed mounter. We got more than 90% big led factory market in China. Many big Chinese brand are our clients, such as the Yankon, MLS, Foshan Lighting, NVC, etc.

2. ETON Machine is cheaper compared with same capacity. We have different speed module, like the 40000 cph, 80000 cph, 180000 cph, 250000 cph and 500000cph. With more choose if you cooperation with us.

3.ETON machine is multifunctional and intelligent. Suitable for all kinds of led chip and electrical components, such as the IC, Resistor, Capacitor, Terminal , Shaped components, etc

4. ETON machine could be customized according to your product design with strong R&D power.

Why choose us

Leading Manufacturer of SMT machines

1: China top brand and biggest manufacturer of SMT machines .

2: More than 15 years experiences.
3: Full SMT line solution expert
4: Global local installation and training
5: Regular visit client every year

Independent R&D, Strong Innovation

1: Strong R&D team more than 50 staff

2: Own software copyright & innovation patents & practical patents
3: Own design and manufacturer
4: Provide update the software whole life time for free

Own manufacturing Center, Control quality from original

1: 52000 SQM manufacturing center

2: Machine main parts are made by own, high standard products quality
3: Strict QC department ensure high quality
4: Big production quantity, delivery on time
