Product Details:
Payment & Shipping Terms:
|
| Warranty: | One Year | Condition: | New |
|---|---|---|---|
| Speed: | 80000 CPH | Applicable Components: | 0201,0402,0603 |
| Application: | Led Lighting Industry, Electronic Products, Etc. | Display: | Touch Screen Monitor |
| Software: | R&D Independently | Core Components: | Motor, Industrial Control Computer |
| High Light: | Street Light SMT Mounter,Min 0201 SMT Mounter,Min 0201 LED Making Machine |
||

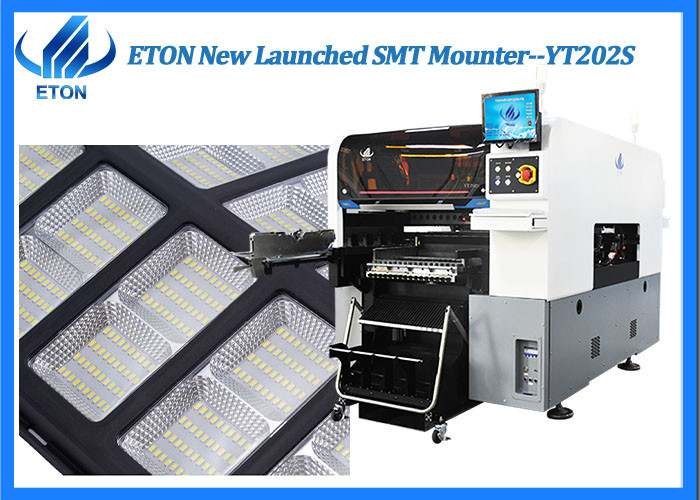

LED Bulb Making Smt Mounter YT202S 80000CPH With 20 Nozzles LED Making Machine
Product description

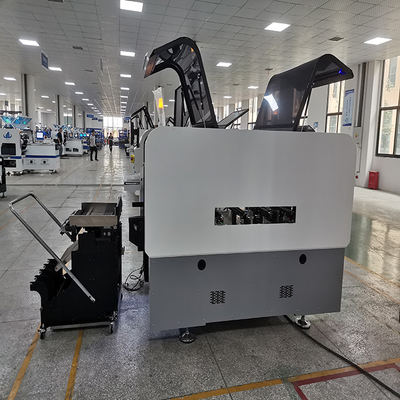

YT202S SMT pick and place machine, The theoretical speed of YT202s is 80000 CPH, First of all, from the appearance of the machine, these two modules are roughly the same. The biggest difference is that yt202s has two mounting heads.
When the machine works, they work for two different PCBs respectively. Two products can be produced at the same time. One side stops working and the other side continues working. They are controlled independently. Very intelligent.
the main guide rail of yt202s is also a high-end magnetic linear motor. it has high accuracy.
Main Parameter
| Model |
YT202S
|
| length | 2788mm |
| width | 1686mm |
| height | 1375mm |
| total weight | 1700kg |
| PCB length width |
Max:500*450mm (single PCB)/ 500mm*300mm(double PCB) MIN:50*50mm |
| PCB thickness | 0.5 - 4.5 mm |
| PCB clamping | Cylinder clamping, track width adjustable |
| system | windows 7 |
| software | R&D independently |
| No.of camera | 4PCS(Digital camera) |
| Bottom vision camera recognition | |
| repeat precision | ±0.02mm |
| mounting height | ≤20mm |
| 8mounting speed | 80000CPH |

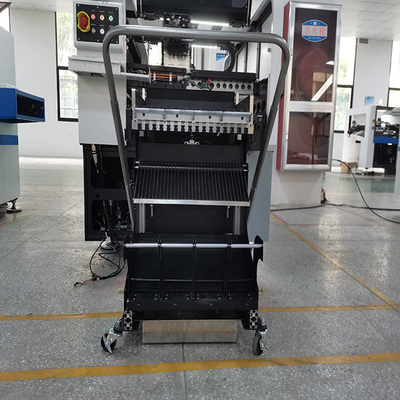

| No.of feeders station | Double side docking cart slot 32PCS,tape reel packages:64PCS(single side docking cart slot 16PCS,tape reel packages:32PCS),freely switching between docking cart and IC tray feeder (IC tray feeder:Option) |
| No.of head | Double side:20pcs(single side:10pcs) |
| power | 380AC 50Hz 6KW |
| operating enviroment | 23℃±3℃ |
| air supply | 0.4-0.6mpa(4-6kgf/cm²)150N/min |
| XYZ Axis drive way | High-end magnetic linear motor + servo motor |
| feeding way | Intelligent Double head Feeder |

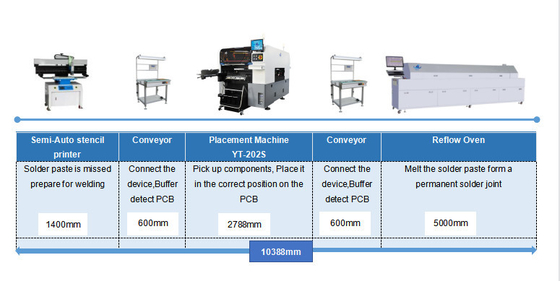

DOB Bulb making machine line
DOB Bulb making machine SMT Line is included stencil printer machine, conveyor, pick and place machine, reflow oven machine.
And this line is also not only suitable for making DOB, but also could be produce other led lighting, like the down-light, street light, panel light, driver board, etc.
Machine application
YT202S is high-end mounting machine, support for mounting 0201-40*40mm tape reel package and IC tray feeder.
The finished product like the household appliance driver board, tv display board, complicated BGA, Transistor, SOP, VR, CSP, QFP,TSOP mounting.
Certificates
We got 9 invention Patents, 112 practical patents,12 software copyrights.
RFQ
Q: What is your actual speed of your products?
A: For the actual speed of the machine which is constrained by many factors,that relatedto the number of the components, the time to send PCB board and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.
Q: Can I go and see if you have sold the equipment to India?
A: Yes, we have sold our machine in India, but for the fact we can't decide it for our customer, but I will try to contact our customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.
Q: It’s hard to use the machine?
A: Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
Q: How is the breakdown rate of machine?
A: Our machine is very stable, the breakdown rate is less than 0.001.
Q: What’s the terms of payment? What about the trade term?
A: T/T is OK. You can choose FOB Shenzhen.
Q:What is the difference between dual module and single module?
A:The dual module has one more module than the single module, which has more capacity and faster efficiency.
