SMT 28 Heads LED Lens PCB Assembly Machine 1700KG Pick Place Machine

SMT 28 Heads LED Lens PCB Assembly Machine 1700KG Pick Place Machine
SMT 28 Heads LED Lens PCB Assembly Machine 1700KG Pick Place Machine

Large Image :  SMT 28 Heads LED Lens PCB Assembly Machine 1700KG Pick Place Machine

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA
Model Number: HT-E8S-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Warranty: 12 Months Application: SMT Production Line
Power Supply: 380AC 50HZ Condition: Brand-new
Weight: 1700KG Mounting Speed: 45000 CPH
Dimension: 2550*1650*1550mm Pcb Thickness: 0.5-5 Mm
High Light:

Min 0402 PCB Assembly Machine

,

LED Len SMT Pick Place Machine

,

1700KG Pick Place Machine

SMT 28 heads LED lens PCB assembly 1700KG pick and place machine

Description

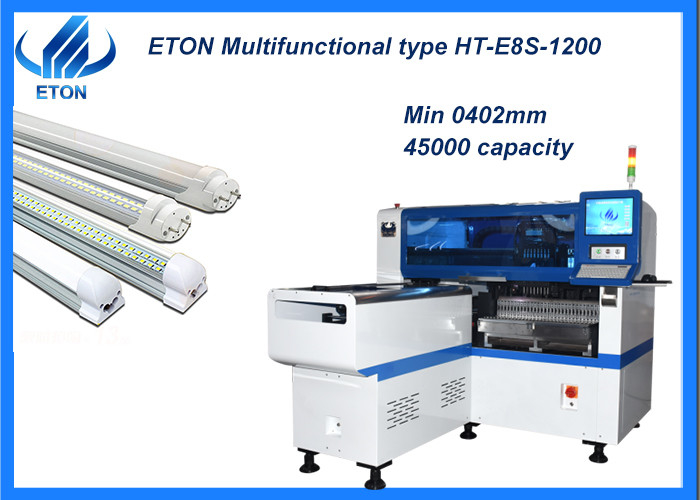

E8S-1200 a single module magnetic linear motor multifunctional pick and place machine, using group picking and separately placing, separately picking and separately placing mounting mode, with 45000 CPH capacity.

  • Single module magnetic linear motor multifunctional pick and place machine.
  • Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
  • Component: Min. Size 0402, Max. Height 15mm.
  • Electronic feeder feeding system.
  • Vision alignment flight identification, Mark correction.
  • Non- stop material re-loading function.
  • Auto-optimization after coordinates generated, etc.

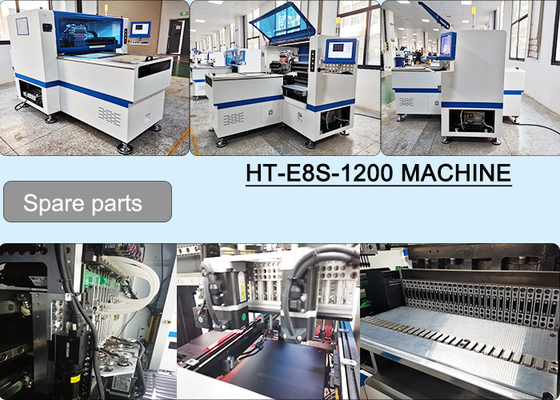

SMT 28 Heads LED Lens PCB Assembly Machine 1700KG Pick Place Machine 0

ModelHT-E8S-1200
Dimension2550mm*1650mm*1550mm
Total weight1700kg
PCB length width

Max:1200*500mm

Min:100*100mm

PCB thickness0.5-5mm
PCB clampingAdjustable pressure pneumatic
Mounting modeGroup picking and separately placing, Separately picking and separately placing
Mounting precision±0.04mm
Mounting speed45000CPH
No. of feeders station28PCS single module
No. of head12 PCS single module



Machine application
Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.
SMT 28 Heads LED Lens PCB Assembly Machine 1700KG Pick Place Machine 1
Market

As for the 11 years trade with more than 30 countries with our SMT high speed pick and place machine, we have come into business with many partners:

SMT 28 Heads LED Lens PCB Assembly Machine 1700KG Pick Place Machine 2

SMT 28 Heads LED Lens PCB Assembly Machine 1700KG Pick Place Machine 3

Packages Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
SMT 28 Heads LED Lens PCB Assembly Machine 1700KG Pick Place Machine 4
Related machine
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
SMT 28 Heads LED Lens PCB Assembly Machine 1700KG Pick Place Machine 5
