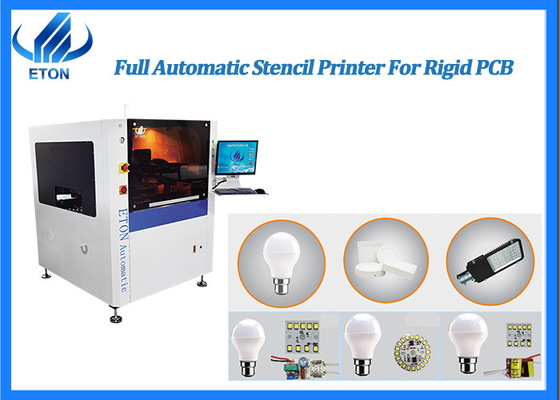

LED Bulb Automatic Stencil Printer Put Solder Paste On PCB ET5235 For LED Lighting

Large Image : LED Bulb Automatic Stencil Printer Put Solder Paste On PCB ET5235 For LED Lighting

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	CE, CCC, SIRA
Model Number:	ET5235
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	vacuum adsorption, wooden packing
Delivery Time:	30 days after receive the down-payment
Payment Terms:	T/T
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Condition:	New	Plate Type:	Screen Printer
Automatic Grade:	Automatic	Application:	SMT PCB Assembly Production Line,printing The Solder Cream Onto The PCB,stencil Printer
Print Head:	Two Independent Motorised Print Heads	Transport Speed:	Max 1200mm/S Programmable
Highlight:	1200mm/S Stencil Printer , LED Bulb Automatic Stencil Printer , LED Lighting Automatic Stencil Printer

LED bulb put solder paste on PCB Full automatic stencil printer ET5235 for LED lighting

What is automatic stencil printer

Modern solder paste printing machines are generally composed of plates, tin paste, embossing, and transmission boards.

Its working principle is: firstly, the circuit board to be printed is fixed on the printing positioning table, and then the solder paste or
the red glue is printed on the corresponding pad through the steel mesh by the left and right scrapers of the printing machine,
and the PCB which is uniformly printed is passed through. The transfer station is input to the placement machine for automatic

placement.

Specification

Model Item	ET5235
Screen Frames Min Size	470*470mm
Screen Frames Max Size	737X737mm
Screen Frames Thickness	25~40mm
PCB Min Size	50X50mm
PCB Max Size	520X350mm
PCB Thickness	0.6~6mm
PCB Warpage	<1%
Transport Height	900±20mm
Transport Speed	Max 1200mm/S Programmable
Board Location PCB Support System	Magnetic Pin/Up-down table adjusted/supportblock by hand
Clamping System Clamping System	side clamping,vacuum nozzle
Print head	Two independent motorised printheads
Squeegee Speed	6~300mm/sec
Squeegee Pressure	0~10Kg/cm2

Machine's Feature

1. PCB transport and clamping system

The PCB loading direction can be selected and combined freely;
Unique crafted internal gear conveyor belt to prevent jamming;
Programmable transport speed control makes PCB stop more precise;
Adopt flexible side clamps and segmented supports to effectively clamp the PCB to ensure a fully balanced contact between the PCB and the steel mesh.

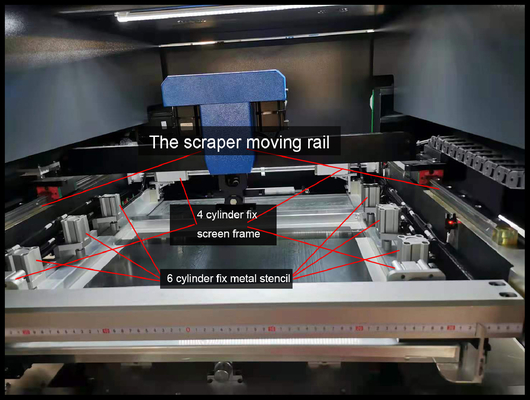

2. stencil positioning system

Arch bridge-shaped suspension hanging direct-contact scraper;
The size of steel mesh is universal, with goof and wide applicability;
Segmented fixed steel mesh frame.

3. Scraper system

Programmable suspension self-adjusting stepper motor drives print head;
Bilateral double-slider positioning type slide rail structure ensures the accuracy and smoothness of running before and after printing;
Slide rail type scraper system, improve operation stability and prolong time;
Embedded scale, never fall off.

Application of automatic stencil printer

Suitable for many factories, like electronic factory, home appliance factory, LED factories, etc
ET-5235 can do almost all kinds of PCB board printing. And it has high accuracy high speed, can save labor save cost, so it has been used to many different kinds of factories.

Certificates
We got 9 invention Patents, 112 practical patents,12 software copyrights.

Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0
ZL 2012 2 0178869.1 ZL 2012 2 0415505.0
ZL 2012 2 0415044.7 ZL 2012 2 0415356.8
ZL 2012 2 0415061.0
