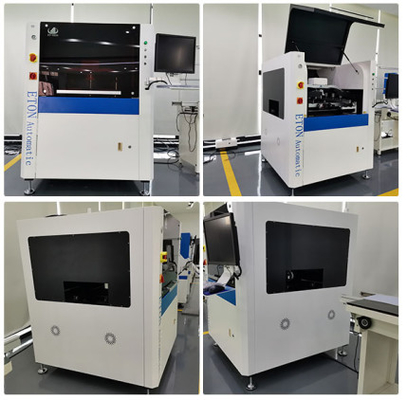

LED Bulb/Tube/Electric Board Stencil Printer Machine Full Automatic ET5235 For LED Lighting

LED Bulb/Tube/Electric Board Stencil Printer Machine Full Automatic ET5235 For LED Lighting
LED Bulb/Tube/Electric Board Stencil Printer Machine Full Automatic ET5235 For LED Lighting LED Bulb/Tube/Electric Board Stencil Printer Machine Full Automatic ET5235 For LED Lighting LED Bulb/Tube/Electric Board Stencil Printer Machine Full Automatic ET5235 For LED Lighting

Large Image :  LED Bulb/Tube/Electric Board Stencil Printer Machine Full Automatic ET5235 For LED Lighting

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE, CCC, SIRA
Model Number: ET5235
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum adsorption, wooden packing
Delivery Time: 30 days after receive the down-payment
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Condition: New Plate Type: Screen Printer
Automatic Grade: Automatic Application: SMT PCB Assembly Production Line,printing The Solder Cream Onto The PCB,stencil Printer
Print Head: Two Independent Motorised Print Heads Transport Speed: Max 1200mm/S Programmable
High Light:

LED Bulb Stencil Printer

,

Electric Board Stencil Printer Machine

,

LED Lighting Stencil Printer Machine

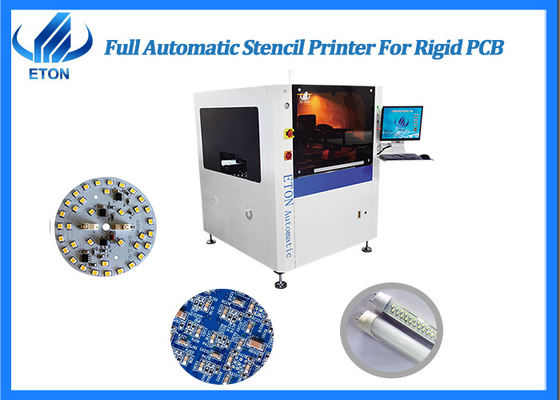

LED bulb/tube/electric board Full automatic stencil printer ET5235 for LED lighting



Specification

Model Item
ET5235
Screen Frames Min Size
470*470mm
Screen Frames Max Size
737X737mm
Screen Frames Thickness
25~40mm
PCB Min Size
50X50mm
PCB Max Size
520X350mm
PCB Thickness
0.6~6mm
PCB Warpage
<1%
Transport Height
900±20mm
Transport Speed
Max 1200mm/S Programmable
Board Location PCB Support System
Magnetic Pin/Up-down table adjusted/supportblock
by hand
Clamping System Clamping System
side clamping,vacuum nozzle
Print head
Two independent motorised printheads
Squeegee Speed
6~300mm/sec
Squeegee Pressure
0~10Kg/cm2



Machine's Feature

1. PCB transport and clamping system

  • The PCB loading direction can be selected and combined freely;
  • Unique crafted internal gear conveyor belt to prevent jamming;
  • Programmable transport speed control makes PCB stop more precise;
  • Adopt flexible side clamps and segmented supports to effectively clamp the PCB to ensure a fully balanced contact between the PCB and the steel mesh.

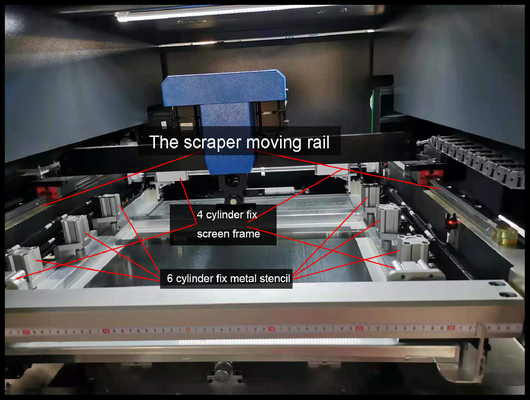

2. stencil positioning system

  • Arch bridge-shaped suspension hanging direct-contact scraper;
  • The size of steel mesh is universal, with goof and wide applicability;
  • Segmented fixed steel mesh frame.

3. Scraper system

  • Programmable suspension self-adjusting stepper motor drives print head;
  • Bilateral double-slider positioning type slide rail structure ensures the accuracy and smoothness of running before and after printing;
  • Slide rail type scraper system, improve operation stability and prolong time;
  • Embedded scale, never fall off.
