Product Details:
Payment & Shipping Terms:
|
| Dimension(L*W*H): | 2154*1376*1762mm | Weight: | 1700kg |
|---|---|---|---|
| PCB Length Width: | Max Size:500*350mm | PCB Thickness: | 0.5~4.5mm |
| Repeat Precision: | ±0.02mm | Mounting Height: | ≤20mm |
| No.of Camera: | 2 PCS Camera | Components Range: | Min 0201~40*40MM Packages And IC Etc |
| Rail: | Rail 1 Is Fixed | Power Consumption: | 380AC50HZ 4KW |
| Optimum Mounting Speed: | 40000CPH | No. Of Feeders Station: | 16 PCS ,tape Reel Packages 32 PCS |
| No. Of Head: | 10 PCS | Feeding Way: | Intelligent Electric Feeder With Double Motor |
| High Light: | 40000CPH Surface Mount Placement Machine,Linear Motors Surface Mount Placement Machine,Surface Mount Pick And Place Machine |
||

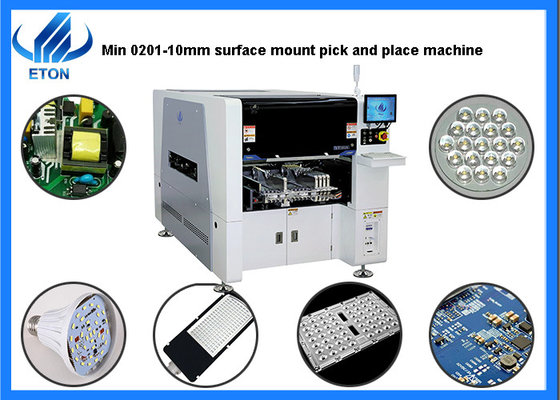

Min 0201-10mm surface mount pick and place machine
Machine main parameter
| Camera |
Head flight vision recognition component Vision alignment + Mark correction |
| Repeat precision | ±0.02 mm |
| Mounting height | ≦15 mm |
| Optimal speed | 45000 CPH |
| Position mode | Optical |
| Component range | Min 0201~10mm packages and IC etc. |
| Position mode | Optical |
| No.of heads | 10 pcs |
| X,Y,Z Axis drive way | High-end magnetic linear motor + Servo motor |
| Feeding way | Intelligent double head feeder |
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA, etc.

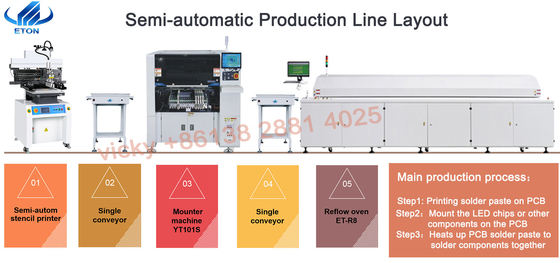

SMT Line solution
Shipping and Delivery
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
Machine application
Exhibition
Our products are exported to more than 20 countries overseas, such as South Korea, India,Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil, Iran and so on.And we also participate in many abroad and domestic Exhibition.
FAQ
Q.What is your merits of the machine to others production?
A. Initially, we have a strong R&D department for studying our productions, and our clients can enjoy free up-grade of the machine to get latest information about technology and equipment, besides, we have a 52000 square meters industrial park to serve the production, assembly, and commissioning of our machines.
Q. How many hours does the machine can operate per day?
A.Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
Q. Is the machine easy to operate?
A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
Q. If I need a perfect line of the machine can you supply?
A. Yes, for the requirements of a whole line for production, we have professional equipment to make up for a perfect production line for your products, on account of we have a 50000 square meters of industrial park and excellent R&D staff, which can produce 50 sets of machine per month.
