| Dimension: | 2700*2300*1550mm | PCB Size: | Max: 1200*330mm Min: 100*100mm |
|---|---|---|---|
| PCB Thickness: | 0.5~5mm | Mounting Mode: | Group Picking And Group Placing |
| Mounting Precision: | ±0.02mm (Repeat Precision） | Mounting Height: | ≤5mm |
| Mounting Speed: | 150000-180000 CPH | No.of Feeders Station: | 68 PCS |
| No.of Head: | 34 PCS | Power: | 380AC 50Hz |
| Power Consumption: | 6KW | X,Y,Z Axis Drive Way: | High-end Magnetic Linear Motor And Servo Motor |
| High Light: | 5050 LED SMD Mounting Machine,Strip Light SMD Mounting Machine,3528 LED SMD Mounting Machine |
||
3528,5050 led chip smd mounting machine 180K for LED light
Production introduction
1.Dual purpose professional high speed mounting machine, 2~4 type of capacity reach 150000-170000CPH.
2. Vision alignment, Mark correction.
3. Components: LED 3014/3020/3528/5050 and capacitors, resistors, bridge rectifiers, etc.
4. Application: flexible strip, LED tube, panel light, display screen etc.

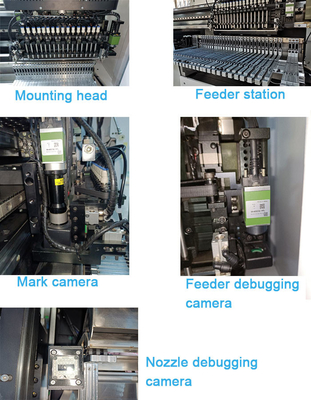

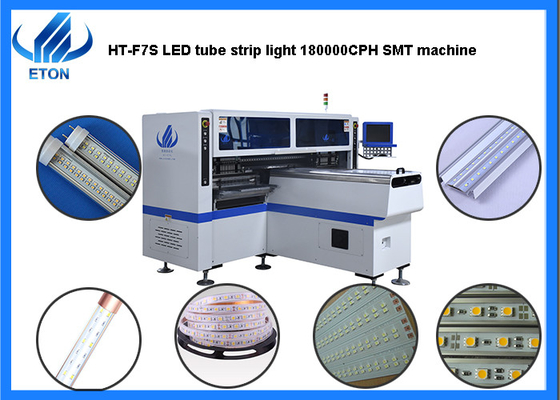

HT-F7S Pictures
Application of HT-F7S
Apply to LED Tube light and the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip light etc.
Machines Parameter
| Model | HT-F7S |
| Dimension(L*W*H) | 2700*2300*1550mm |
| Weight | 1700kg |
| PCB length width | Max:1200*330mm;Min:100*100mm |
| PCB thickness | 0.5~5mm |
| Mounting precision | ±0.02mm |
| Mounting mode | Group to pick and group to mount |
| Mounting height | ≤5mm |
| Mounting speed | 150000~180000CPH |
| Components | LED 3014/3020/3528/5050,resistor,capacitor, |
| No. Of feeders station | 68PCS |
| No. Of head | 34 PCS |
Advantage of machine
| High capacity |
Apply to the 0.6m, 0.9m,1.2m rigid PCB and 0.5m,1m LED hard light board and LED flexible strip. producing with 2~4 types of materials with high capacity ,available for board with any proportion of LED chip and resistors.
|
| High precision | Two mounting modules ,17 nozzles for each mounting part, part A or B can be mounted separately or synchronously. |
| Exclusive | Exclusive patent technology :group to take and group to mount. |
