20 Heads electrical board pick and place machine
Machine information

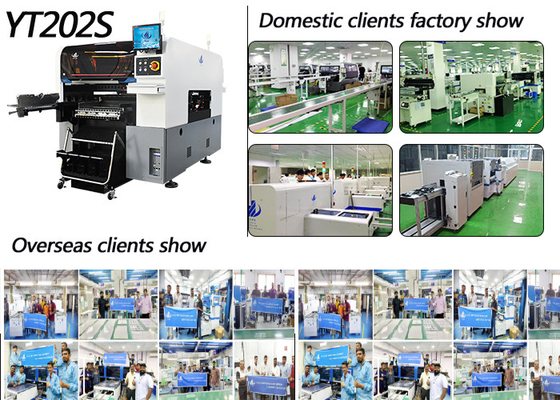

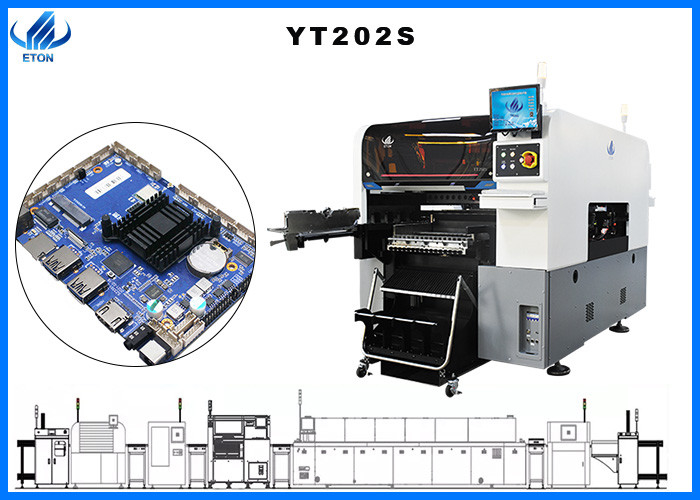

YT202s it has 20 heads,
The size of YT202 PCB suitable for large size is 500 * 450mm (single board)
The size of the largest PCB suitable for double boards is 500 * 300mm
The suitable size of the smallest PCB is 50 * 50mm
YT202S is more suitable for smaller PCB boards. YT202S has higher accuracy than YT202. Due to the higher accuracy of the circuit board, YT202S is just suitable for the mounting of the circuit board
YT202S supports 0201-40 * 40mm packaging material and IC backpack material
The ideal production capacity of 20 heads per hour is 80000 points.
Technical parameter
| Model |
YT202S |
| Length |
2788mm |
| Width |
1686mm |
| Height |
1375mm |
| Total weight |
1700kg |
| Max pcb size |
500*450mm |
| Min pcb size |
50*50mm |
| Mounting speed |
80000CPH |
Component size
Feeding system
Electrical board Display
Transport package
We use vacuum wooden box packaging
Step 1:Film packaging
Step 2:Vacuum packing
Step 3:Wooden box packing
FAQ
Q1:What kind of service I can have, if I buy machine from ETON ?
A:We will give you install and training. It is free for you. And we will sent engineer with you.
Q2:What's about the guarantee of the machines?
A:The maintenance:1 year whole machine,any parts need to be repaired or replaced will be free. We will take the responsibility of the machines from A to Z.
Q3:Did you develop your own machine?
A:It has independently developed the world's first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents.
Q4:What is your machine suitable for?

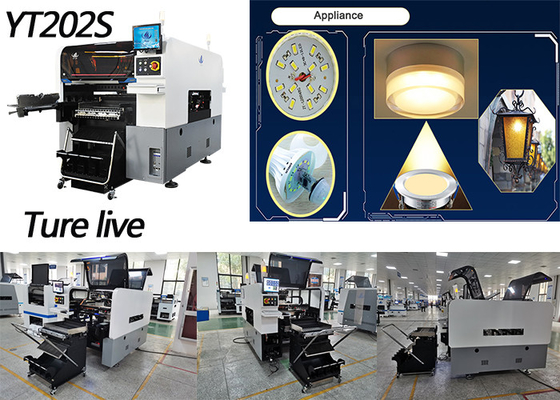

A:Our machines are widely used in lighting, display screen, electronics, driving power supply, household appliances, new energy and other industries
