1m LED Tube SMT Assembly Machine 90000 Capacity Pick And Place Machine

1m LED Tube SMT Assembly Machine 90000 Capacity Pick And Place Machine
1m LED Tube SMT Assembly Machine 90000 Capacity Pick And Place Machine

Large Image :  1m LED Tube SMT Assembly Machine 90000 Capacity Pick And Place Machine

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA
Model Number: HT-E8D-1200
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Applicable Components: 0402
Power Supply: 380AC 50HZ Condition: New
Weight: 2500kg Mounting Speed: 90000 CPH
Dimension: 3150mm*2250mm*1650mm Feeders: 48PCS
Pcb Thickness: 0.5-5 Mm
Highlight:

1m Tube SMT Assembly Machine

,

LED Tube SMT Assembly Machine

,

90000 Capacity Pick And Place Machine

90000 capacity 1M led tube PCB assembly pick and place machine

Product description

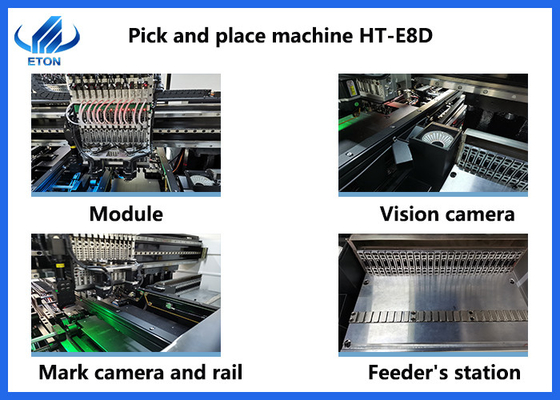

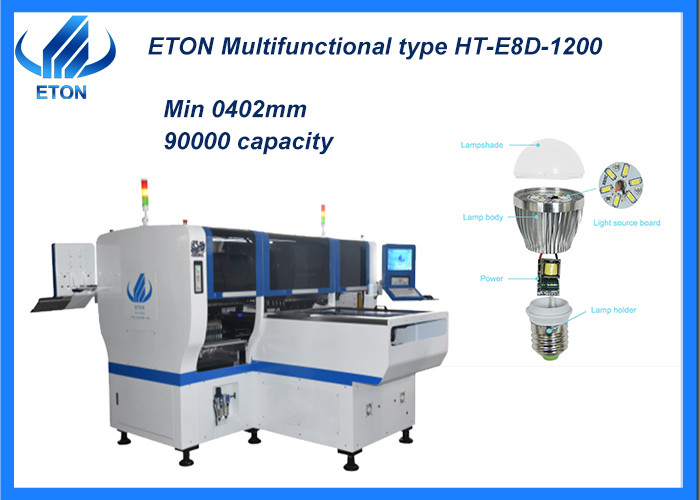

E8D-1200 multifunctional pick and place machine taking the mounting mode of group picking and separately placing, separately picking and separately placing, with 24 PCS of head capacity reaches 90000 CPH.

Features:

  • Dual system, dual module multifunctional mounter to produce two different products at the same time.
  • Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
  • Component: Min. Size 0402, Max. Height 15mm.
  • Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.

Exclusive Patented Technology:

  • Electronic feeder feeding system.
  • Vision alignment flight identification, Mark correction.
  • Non- stop material re-loading function.
  • Auto-optimization after coordinates generated, etc.



Machine parameter

ModelHT-E8D-1200
Dimension3150mm*2250mm*1650mm
Total weight2500kg
PCB length width

Max:1200*300mm

Min:100*100mm

PCB thickness0.5-5mm
PCB clampingAdjustable pressure pneumatic
Mounting modeGroup picking and separately placing, Separately picking and separately placing
Mounting precision±0.04mm
Mounting speed90000CPH
No. of feeders station48PCS single module
No. of head24 PCS single module

SMT Line solution
The SMT production line has two schemes: semi-automatic and fully automatic line. If you are just starting to do it, I suggest you do a semi-automatic production line, which can effectively save your cost.
1m LED Tube SMT Assembly Machine 90000 Capacity Pick And Place Machine 0
Packages
Step 1: Packing in film package to prevent dust and water to the machine
Step 2: Packing in foam cotton to protect the outside of the machine
Step 3: Packing in vacuum package to keep dry of the machine during transportation
Step 4: Transportation by truck to specified port
1m LED Tube SMT Assembly Machine 90000 Capacity Pick And Place Machine 1

Related machine
ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.

1m LED Tube SMT Assembly Machine 90000 Capacity Pick And Place Machine 2
