Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Application: | SMT Production Line |
---|---|---|---|
Power Supply: | 380AC 50HZ | Condition: | New |
Weight: | 1700KG | Mounting Speed: | 200000-250000 CPH |
Pcb Thickness: | 0.5-1.5mm | Positioning Accuracy: | ±0.02 Mm |
High Light: | High Speed Flexible Strip Making Machine,100m Flexible Strip Making Machine,Flexible Strip Automatic Chip Mounter |

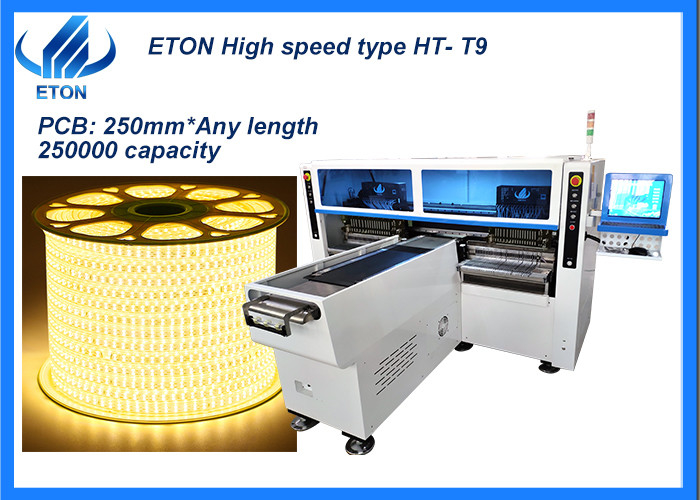

High speed 250K 100m flexible strip making SMT pick and place mounter
Production description
Dual arm magnetic linear high speed mounter for flexible strip(no wire), producing 4 types materials at the same time capacity reach 250000 CPH.

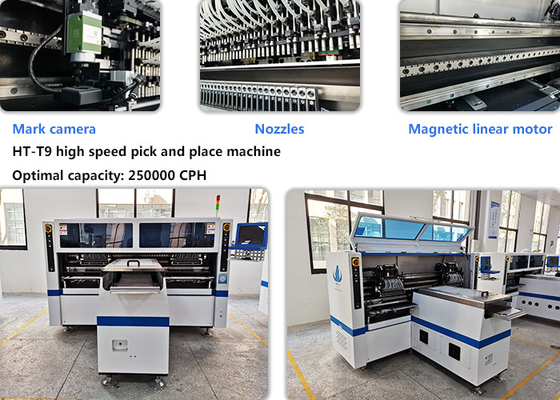

Features
Machine parameter
Model | HT-T9 |
Dimension | 3100*2250*1650mm |
Total weight | 1700kg |
PCB length width | 250mm*any length |
PCB thickness | 0.5-1.5mm |
PCB clamping | Vacuum adsorption, cylinder splint, adjustable track width |
Mounting mode | Group picking and group placing |
Mounting precision | ±0.02mm |
Mounting speed | 20-25W CPH |
No. of feeders station | 68PCS |
No. of head | 68PCS |
IPC9580 Capacity: 200000- 250000 CPH
Patent number: ZL2011 2 0237740.9ZL2011 2 0334606.0ZL 2012 20178869.1ZL 2012 2 0415505.0ZL2012 2 0415044.7ZL2012 2 0415356.8ZL2012 20415061.0
Machine application
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Market
ETON company which not only provide our high speed SMT machine in Chinese market, but also overseas market to let our customer enjoy one site service, efficient production and low consumption.
Oversea market:The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
