Product Details:
Payment & Shipping Terms:
|
| Warranty: | One Year | Condition: | New |
|---|---|---|---|
| Speed: | 80000 CPH | Applicable Components: | 0201,0402,0603 |
| Application: | Led Lighting Industry, Electronic Products, Etc. | Display: | Touch Screen Monitor |
| Software: | R&D Independently | Core Components: | Motor, Industrial Control Computer |
| High Light: | Multi Modular Head SMT Mounter,Screen Monitor LED Bulb Making Machine,80000 CPH SMT Mounter |
||

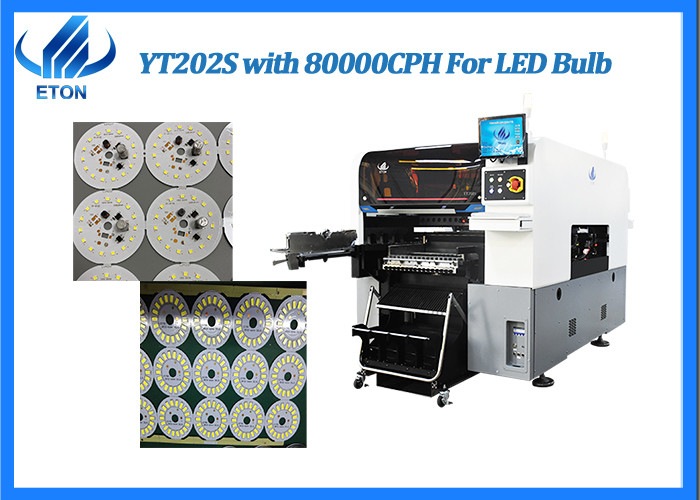

ETON new design LED bulb Making Smt Mounter LED Making Machine
Feature of Machine
Adopt High-speed multi modular head, Adopt High-speed multi modular head,apply to
ultra small chip 0201 〜40*40mm large Chip.wider component range.
Fixed high pixel flight vision camera:High-speed flight vision camera,quickly captures
multiple head images at once, perform visual calibration of image position,alignment
correction, adjustable light source brightness.
Mark recognition:High-precision Mark recognition system, adopt 3-color illumination
recognition,apply to any shape Mark and LENS(Blu-ray scan),wider range of applications.

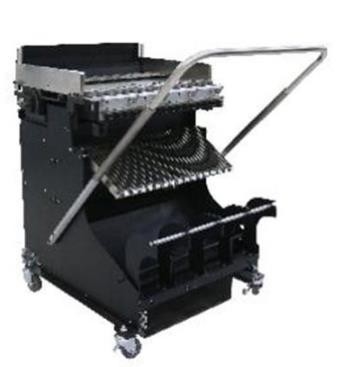

Docking Cart:Double side docking cart slot 32PCS,tape reel packages: 64PCS (single
side docking cart slot 16PCS,tape reel packages: 32PCS), freely switching between
docking cart and IC tray feeder(IC tray feeder:Option)
IC Tray Feeder:Support multi-layer tray feeder (IC tray feeder) installment.freely
switching between docking cart and IC tray feeder.
Software Al intelligent learning function and automatic optimization function
Main Parameter
| PCB size |
Max size:500mm*450mm(single PCB) 500mm*300mm(double PCB) Min size: 50mm*50mm |
| PCB thickness | 0.5-4.5mm |
| PCB clamping | Cylinder clamping, track width adjustable |
| No. of camera | 4 sets/Bottom vision camera recognition |
| Repeat precision | ± 0.02mm |
| Mounting speed | 80000CPH(Optimum speed) |
| Components range | Min 0201 ~40*40mm Tape reel packages and IC tray feeder etc. |
| Position mode | Optical |
Machine application
YT202S is high-end mounting machine, support for mounting 0201-40*40mm tape reel package and IC tray feeder.
The finished product like the household appliance driver board, tv display board, complicated BGA, Transistor, SOP, VR, CSP, QFP,TSOP mounting.
Service
Maintenance period 1 year
One year warranty. during warranty. any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
Certification
ETON obtains a number of intellectual property technologies, including 9 invention patents, 112 Practical patents, 12 software copyrights.ETON is rated as"Shenzhen high-tech enterprise" "Guangdong high-tech enterprise" "China high- tech enterprise""Shenzhen TOP Brand" "2015 LED Technology Innovation Award" "The 4th China LED First Innovation Award" "Industry Special Contribution Award" etc.
RFQ
Q: What is your actual speed of your products?
A: For the actual speed of the machine which is constrained by many factors,that relatedto the number of the components, the time to send PCB board and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.
Q: It’s hard to use the machine?
A: Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
Q: Can I visit the production site of your machines in India?
A: I have to ask my clients. After all, this is our customer's factory. We can't make decisions for my clients.
I think that You wouldn't want your competitors to visit your manufacturing site. please understand.
