Product Details:
Payment & Shipping Terms:
|
| Warranty: | One Year | Condition: | New |
|---|---|---|---|
| Speed: | 80000 CPH | Applicable Components: | 0201,0402,0603 |
| Application: | Led Lighting Industry, Electronic Products, Etc. | Display: | Touch Screen Monitor |
| Software: | R&D Independently | Core Components: | Motor, Industrial Control Computer |
| High Light: | 80000 CPH LED Bulb Making Machine,LED Bulbs SMD Mounting Machine,Touch Screen SMD Mounting Machine |
||

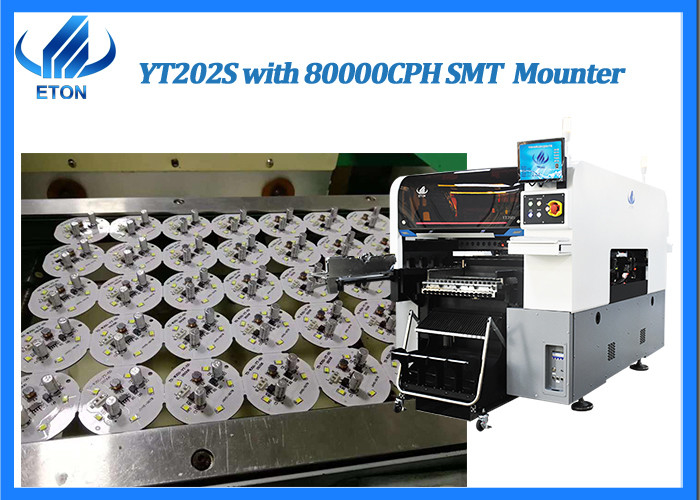

SMT Mount for LED bulb Making Smt Mounter SMD mounting machine
Feature of Machine
Adopt High-speed multi modular head, Adopt High-speed multi modular head,apply to
ultra small chip 0201 〜40*40mm large Chip.wider component range.
Fixed high pixel flight vision camera:High-speed flight vision camera,quickly captures
multiple head images at once, perform visual calibration of image position,alignment
correction, adjustable light source brightness.
Mark recognition:High-precision Mark recognition system, adopt 3-color illumination
recognition,apply to any shape Mark and LENS(Blu-ray scan),wider range of applications.

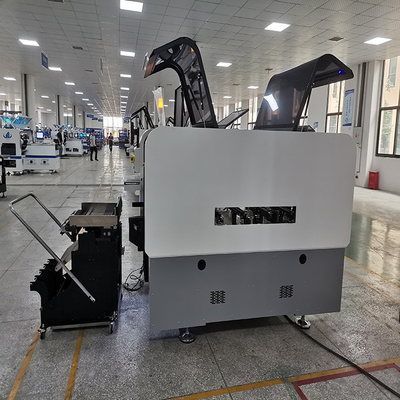

Docking Cart:Double side docking cart slot 32PCS,tape reel packages: 64PCS (single
side docking cart slot 16PCS,tape reel packages: 32PCS), freely switching between
docking cart and IC tray feeder(IC tray feeder:Option)
IC Tray Feeder:Support multi-layer tray feeder (IC tray feeder) installment.freely
switching between docking cart and IC tray feeder.
Software Al intelligent learning function and automatic optimization function
Main Parameter
| PCB size |
Max size:500mm*450mm(single PCB) 500mm*300mm(double PCB) Min size: 50mm*50mm |
| PCB thickness | 0.5-4.5mm |
| PCB clamping | Cylinder clamping, track width adjustable |
| No. of camera | 4 sets/Bottom vision camera recognition |
| Repeat precision | ± 0.02mm |
| Mounting speed | 80000CPH(Optimum speed) |
| Components range | Min 0201 ~40*40mm Tape reel packages and IC tray feeder etc. |
| Position mode | Optical |
Company Profile
Our company was established in 2009, which is a high-tech enterprise specialized in R&D, production, sales of SMT production equipment.
With the trends of global green, energy-saving and the rapid development of LED industry and requirements of production process, our company independent research and develop, design, manufacture a set of the world's fastest, most stable, most complete high-speed LED automatic energy mounter, while also solve the offset, cast material problems of the production of 1.2m, 1.5m light panels and the headlights pearl and we received a number of patents issued by the state certificate and support.
Service
We can provide you with excellent service, we also have professional overseas engineers to your factory provide install, training service until you can operate the machine adroitly.
1.We can provide you with the whole production line.
2.Our software is R&D independently.We can offer software upgrade for lifetime for free
3.We have 50,000 square meters of industrial park. The production strength is abundant, occupies the first place in the domestic profession.
4.If you have any problem with the product, we will have overseas engineers come to your home for free repair or replacement within one year. Because we have offices overseas and local engineers.
Packaging
Packaging: standard is plastic film wrap the LED SMT machine, then load into one 20" container; Wooden box packing can be customized.
Delivery: 35-40 days after 30% T/T prepayment, buyer should come to inspect when we do test running, after testing, pay the 70% balance before delivery
Certification
ETON obtains a number of intellectual property technologies, including 9 invention patents, 112 Practical patents, 12 software copyrights.ETON is rated as"Shenzhen high-tech enterprise" "Guangdong high-tech enterprise" "China high- tech enterprise""Shenzhen TOP Brand" "2015 LED Technology Innovation Award" "The 4th China LED First Innovation Award" "Industry Special Contribution Award" etc.
RFQ
Q: Does your machines have quality certificate?
A: All of the machines have passed CE,SIRA and CCC certificate and have own patent.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
Q: What is the payment way ?
A:We accept the payment terms: L/C, T/T.
Q: Can I visit the production site of your machines in India?
A: I have to ask my clients. After all, this is our customer's factory. We can't make decisions for my clients.
I think that You wouldn't want your competitors to visit your manufacturing site. please understand.
