Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0201 Components |
|---|---|---|---|
| Condition: | New | Weight: | 1700kg |
| Mounting Speed: | 90000 CPH | Type: | Automatic |
| Feeders: | 32PCS | Head: | 20PCS |
| High Light: | Windows 7 SMT Mounter,0201 components LED Mounting Machine,Windows 7 LED Mounting Machine |
||

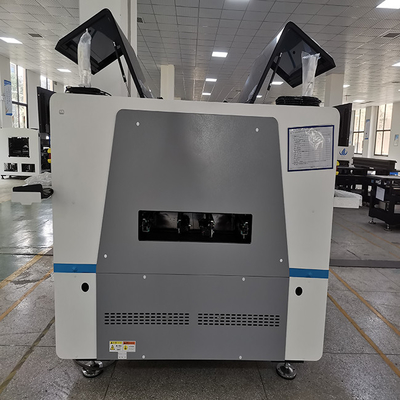

LED products SMT Chip Mounter 90000CPH LED mounting machine in production line
How smt manufacturers choose the right placement machine?
SMT placement machine has high efficiency and stable performance, which brings huge advantages to our production. With SMT placement machine, we can greatly improve production efficiency. SMT placement machine is relatively very precise and is a production equipment, so some precautions in production operations must be understood
Machine features
Two gantry,10 spindles*2 Gantry,total 20 spindles.
Flexible РСВ handling capabilities,double rail,both gantry can mountthe same large РСВ at the same time,realizing flexible production.
Flexible wiring through modular placement heads and various production modes.
Machine main parameter
| Dimension | 2317*1376*1762mm |
| Total weight | 1700KG |
| Max.PCB size |
Single PCB:500*450mm Double PCB: 500*300mm |
| PCB thickness | 0.5-4.5mm |
| Repeat precision | ±0.02mm |
| Mounting speed | 90000CPH |
| Components range | Min 0201-10mm packages and IC etc. |
| No.of head | 20PCS |
SMT Line
We have full range of pick and place machine production line equipment , and have professional suggestions for you to build the production line.

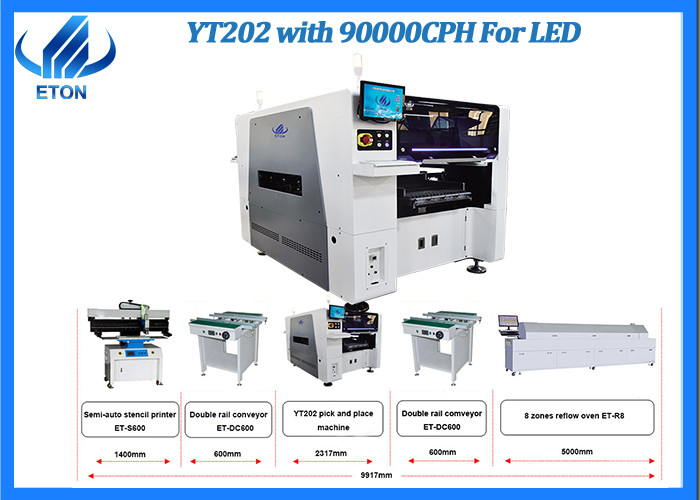

SMT Line reference picture
Service
1. Before order:
We will support professional suggestion of SMT line
We will recommend the best module according to the products
We will supply best quotation with factory price
2. After order:
Machine will have good test and aging before shipping
We support machine free installation and training, special time we support online training, and video teaching.
We have Professional after-sales team, could solve problem as soon as possible
Machine warranty is one year, during warranty, any parts need to be repaired and replaced will be free for clients.
FAQ
Q1: What is your machine actual speed?
A1: The actual speed is influenced by many factors, such as the number of the components, the kind of products, the time of send board, etc. So we can’t give you the accurate actual production capacity. Such as for RT-1, the speed of led chip mainly around 23000-25000CPH. But for driver will be different.
Q2: Does the price include spare parts(nozzle and feeder)?
A2: Different client has different requirements on spare parts, it is not fair to clients to add in equivalent price for spare parts, so we don’t add the spare parts on price. And price is only for machine.
Q3: Can you support whole SMT line?
A3: Yes, we can provide whole line solution if you want. We are very professional on SMT field.
Q4: What is your machines quality?
A4: We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machine quality.
Q5: What is your delivery date?
A5: The delivery date is about 20 days upon the full payment.
