Product Details:
Payment & Shipping Terms:
|
| Warranty: | One Year | Condition: | New |
|---|---|---|---|
| Speed: | 90000 CPH | Applicable Components: | 0201,0402,0603 |
| Application: | Led Lighting Industry, Electronic Products, Etc. | Display: | Touch Screen Monitor |
| Software: | R&D Independently | Core Components: | Motor, Industrial Control Computer |
| High Light: | 90000 CPH LED Making machine,0201 LED Making machine,LED Pick And Place Machine CE |
||

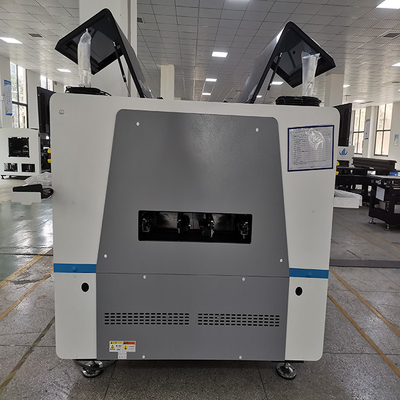

R&D Independently YT202 LED and electric Making machine pick and place machine
Working principle
The placement machine can directly attach and solder surface-mounted components to the specified position without drilling insertion holes on the printing plate, which can be described as another product of industrial automation. The placement machine is mainly composed of a placement head and a static lens. First, the placement head grabs the nozzle and absorbs the components on the corresponding position of the PCB according to the package type, component number and other parameters of the imported placement components; secondly, the static The lens detects, identifies and aligns the pickup components according to the vision processing program; finally, the placement head mounts the components to the corresponding positions on the PCB board
Feature of Machine
Features
Vacuum Sensing Device
Each placement head with independent detection function,
which improves the stability of the equipment and the reliability of the product.
Ultra-high-speed Capability
Adopt High-end magnetic linear motor,servo system and multi function modular head,
the capacity increased by 25% compared with traditional machine,optimum placement
speed reach 80000 CPH.
High reliability
1.Brand new self-developed high-precision placement head.
2.Combine high accuracy Mark recognition camera with fixed flight vision camera,ensure placement accuracy.
3.The placement head adopt independent vacuum detection,improve placement performance.
4.Off-line programming, save time of changeover cycle.
5.Software Al intelligent learning function and automatic optimization function.
Main Parameter
| Model | YT202 | ||
| PCB size(L*W) |
Max size:500 * 450mm (single) 500 * 300mm(double) Min size:50mm*50mm |
PCB thickness | 0.5-4.5mm |
| PCB clamping | Cylinder clamping, track width adjustable | System | Windows 7 |

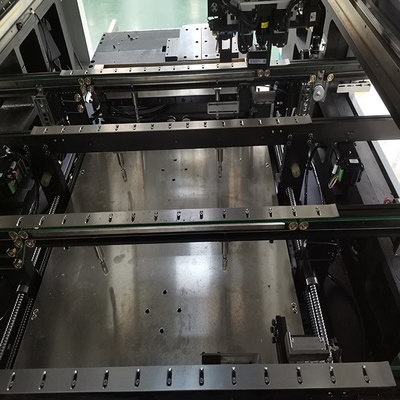

| Rail | 2 Rail,2 gantries (Rail 1,4 are fixed rail) | Software | R&D independently |
| Production management MES system | Customized(Option) | No.of camera | 4 sets (Digital camera) |
| Head flight vision recognition component | |||
| Off-line programming | Available | Vision alignment + Mark correction | |
| Repeat precision | ±0.02mm | Mounting speed | 90000CPH (Optimum speed) |
| Mounting height | ≤20mm | Components range | Min 0201~10mm packages and IC etc. |
| Power | 380AC 50HZ 6KW | Transmission direction | Standard: Single direction |
| Operating environment | 23℃±3℃ | Transmission mode | Online drive |
| Air consumption | 0.4-0.6mpa (4-6kgf/cm²) 150N/min | Position mode | Optical |
| Electrical control | Independent research and development by ETON | Motion control card module 1 set | Independent research and development by ETON |
| No.of Heads | Double side: 20 pcs (single side:10 pcs) | X,Y,Z Axis drive way | High-end magnetic linear motor +Servo motor |

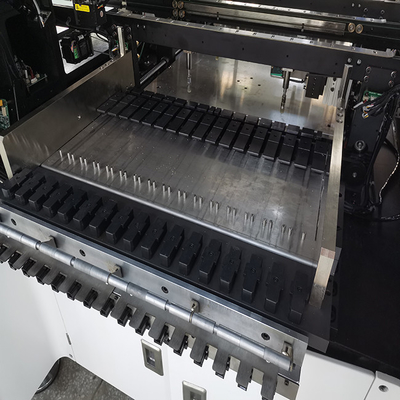

| Feeding way | Intelligent Double head Feeder | No.of Feeder station |
Double side: 32pcs, totaltape reel Packages 64pcs (single) side: 16pcs, total tape reel Packages 32pcs) |
Machine application
YT202S is high-end mounting machine, support for mounting 0201-40*40mm tape reel package and IC tray feeder.
The finished product like the household appliance driver board, tv display board, complicated BGA, Transistor, SOP, VR, CSP, QFP,TSOP mounting.
SMT machines packaging
All our machines will be inspected and tested again before shipment to ensure the quality of the machines. For packaging, we are also very strict in every link.
Step 1 Plastic film packing and Foam cotton packing:
preventing the dust and water ,protecting from hitting and shaking while ship
Step 2 Vacuum tin foil packing:
protection from oxidation and water, keep dry of machine during transportation
Step 3 Stand wooden box packing:
Prevent the machine from being damaged and facilitate transportation
Finally,professional industrial drivers team send the wood box to the shopping container safety.
Certification
ETON obtains a number of intellectual property technologies, including 9 invention patents, 112 Practical patents, 12 software copyrights.ETON is rated as"Shenzhen high-tech enterprise" "Guangdong high-tech enterprise" "China high- tech enterprise""Shenzhen TOP Brand" "2015 LED Technology Innovation Award" "The 4th China LED First Innovation Award" "Industry Special Contribution Award" etc.
RFQ
Q: What is your actual speed of your products?
A: For the actual speed of the machine which is constrained by many factors,that relatedto the number of the components, the time to send PCB board and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.
Q: It’s hard to use the machine?
A: Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
Q: Can I visit the production site of your machines in India?
A: I have to ask my clients. After all, this is our customer's factory. We can't make decisions for my clients.
I think that You wouldn't want your competitors to visit your manufacturing site. please understand.
